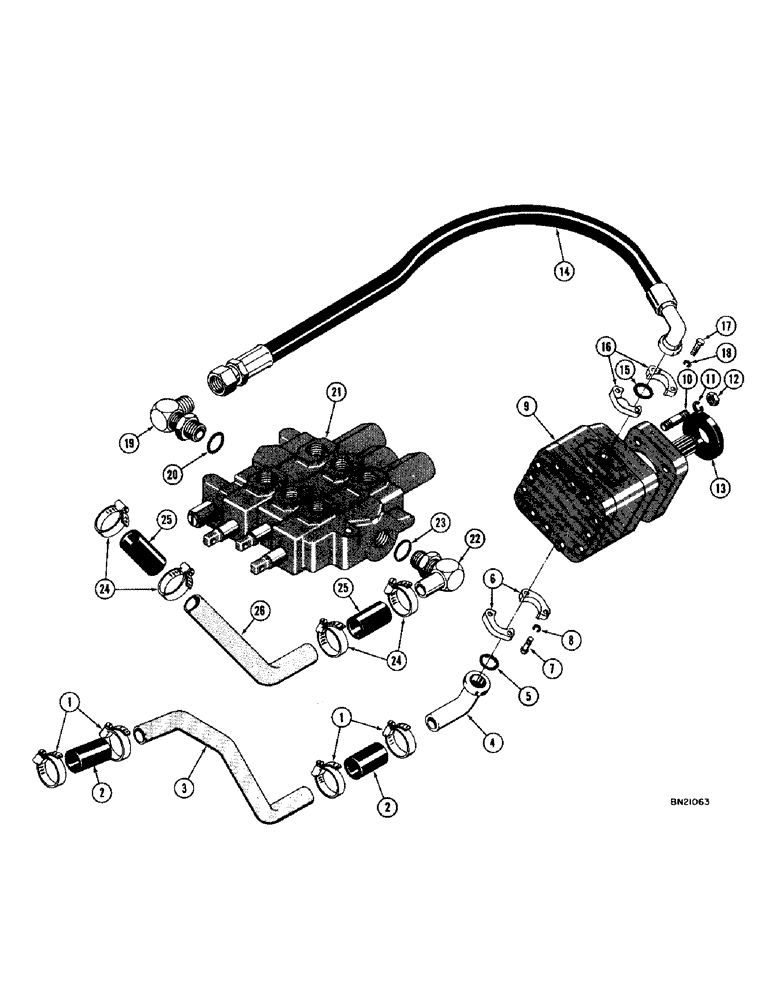

Запчасти Case 1000D (240) - LOADER PRIMARY HYDRAULICS, (USED ON TRACTOR SERIAL NO. 7104771 & AFTER (07) - HYDRAULIC SYSTEM

1

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

2

R14169

HOSE

- low pressure, hydraulic, Serial Range: tank-pump

2шт.

3

R21783

TUBE - hydraulic tank to pump (Suction)

1шт.

4

R22254

FITTING - special

1шт.

5

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

6

A12301

CLAMP,Half

SET - split

2шт.

7

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(A12301 mounting) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

8

92-7

LOCK WASHER,7/16"

4шт.

9

D29449

PUMP

- hydraulic, 43 G.P.M. at 2300 pump R.P.M. (2000 engine R.P.M.) See Figure 306 for breakdown

1шт.

10

46522

SLEEVE

STUD - 1/2" - 20 NF x 2-1/4" (D29449 mounting)

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

13

R22634

WASHER

- rubber, pump to torque converter

1шт.

14

R21782

HOSE

- special, hydraulic pump to equipment control valve (34-1/2" long) Pressure

1шт.

15

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

16

A12301

CLAMP,Half

SET - split

2шт.

17

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(A12301 mounting) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

R20720

FITTING

ELBOW - 90 degree adjustable, special

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

REF

INSTRUCTION

VALVE - equipment control (See Figure 322 for proper valve)

1шт.

22

D30511

FITTING

STEM - hose, adjustable

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

25

R22378

HOSE

- low pressure, valve to hydraulic tank

2шт.

26

D31651

CABLE

TUBE - valve to hydraulic tank, return

1шт.
