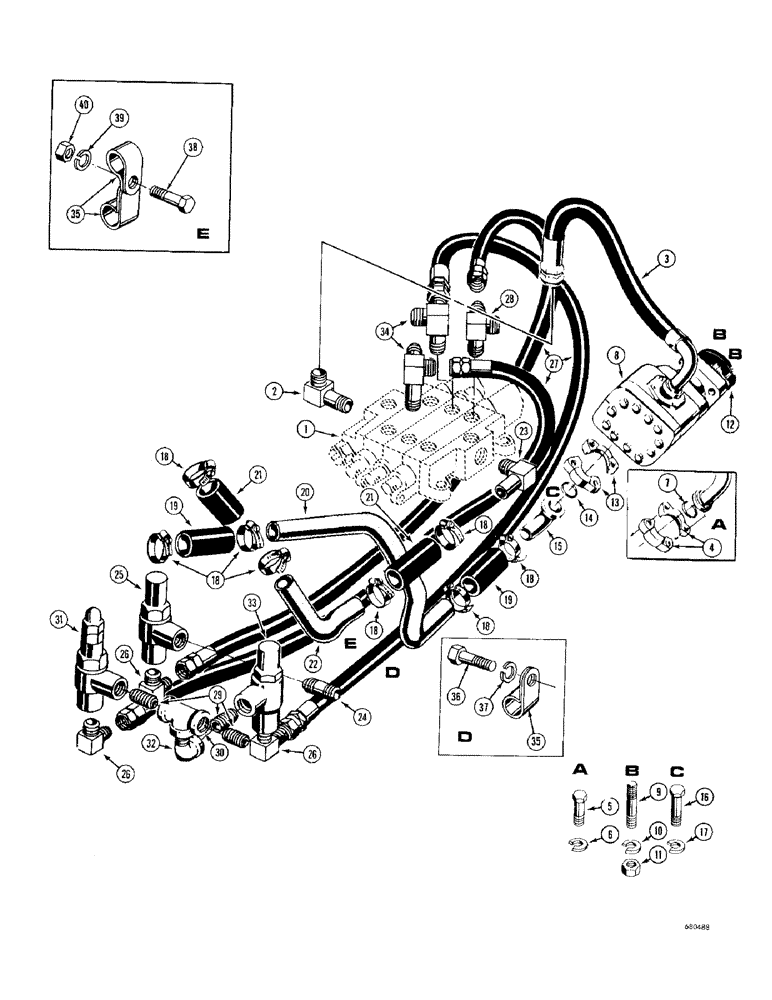

Запчасти Case 1000D (238) - LOADER PRIMARY HYDRAULICS, (USED BEFORE TRACTOR SERIAL NO. 7104771) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 312 thru 318)

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC x 1" NPT

1шт.

3

R21782

HOSE

- special, hydraulic pump to equipment control valve (34-1/2" long) Pressure side

1шт.

4

A12301

CLAMP,Half

ASSEMBLY - split

2шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(A12301 mounting) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

8

R21738

X

PUMP - hydraulic (Loader models only) 46 G.P.M. (See Figure 304 for breakdown) Used before serial no. 7104001 (Order 1 - D29449 pump, 2 - A12301 flange, 1 - R22254 fitting, 4 - 13-720 cap screws, 4 - 92-7 lockwashers, and 1 - T13224 "O" ring for service)

1шт.

D29449

PUMP

- hydraulic (Loader models only) 43 G.P.M. (See Figure 306 for breakdown) Used on tractor serial no. 7104001 and after

1шт.

9

46522

SLEEVE

STUD - 1/2" - 20 NF x 2-1/4" (Pump mounting)

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

25-118

NUT,1/2"-20, G5

- hex., 1/2" - 20 NF

4шт.

12

R22634

WASHER

- rubber

1шт.

13

A14157

FLANGE

HALF - split (Used with R21738 pump only)

2шт.

A12301

CLAMP,Half

ASSEMBLY - split (Used with D29449 pump only)

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring (Used with R21738 pump only)

1шт.

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring (Used with D29449 pump only)

1шт.

15

R21781

FITTING

- special (Used with R21738 pump only)

1шт.

R22254

FITTING - special (Used with D29449 pump only)

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(A14157 mounting only) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(A12301 mounting only) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

92-7

LOCK WASHER,7/16"

4шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

8шт.

19

R14169

HOSE

- low pressure

2шт.

20

R21783

TUBE - hydraulic tank to hydraulic pump, suction side

1шт.

21

R22378

HOSE

- low pressure

2шт.

22

R22377

TUBE - equipment control valve to hydraulic tank, return

1шт.

23

R22379

STEM - hose, 1" NPT x 1-1/4" O.D. hose stem

1шт.

24

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - pipe, 1/2" NPT x 1-1/2"

1шт.

25

R17530

VALVE - relief, loader lift cylinder (See Figure 334 for breakdown) Used before tractor serial no. 7104001 (Order D29826 for service)

1шт.

D29826

VALVE - relief, loader lift cylinder (See Figure 334 for breakdown) Used on tractor serial no. 7104001 and after

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2" NPT x 5/8" JIC

3шт.

27

R22412

HOSE

- dump cylinder relief valve to equipment control valve (50" long)

3шт.

28

R22394

TEE - male, 1" NPT x 1" JIC x 5/8" JIC

1шт.

29

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe, 1/2" NPT x 1-1/8"

3шт.

30

221-424

TEE,1/2" NPT

- female pipe, 1/2" NPT

1шт.

31

R17539

VALVE - relief, loader dump cylinder, rear port (See Figure 334 for breakdown)

1шт.

32

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees, street, 1/2" NPT

1шт.

33

R17530

VALVE - relief, loader dump cylinder, front port (See Figure 334 for breakdown) Used before tractor serial no. 7104001 (Order D29826 for service)

1шт.

D29826

VALVE - relief, loader dump cylinder, front port (See Figure 332 for breakdown) Used on tractor serial no. 7104001 and after

1шт.

34

R22395

TEE - male, 1" NPT x 1" JIC x 5/8" JIC

2шт.

35

49885

CLAMP

- hose

3шт.

36

16-616

HHCS - 3/8" - 24 NF x 1" (49885 mounting)

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4" (49885 mounting)

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" - 24 NF

1шт.
