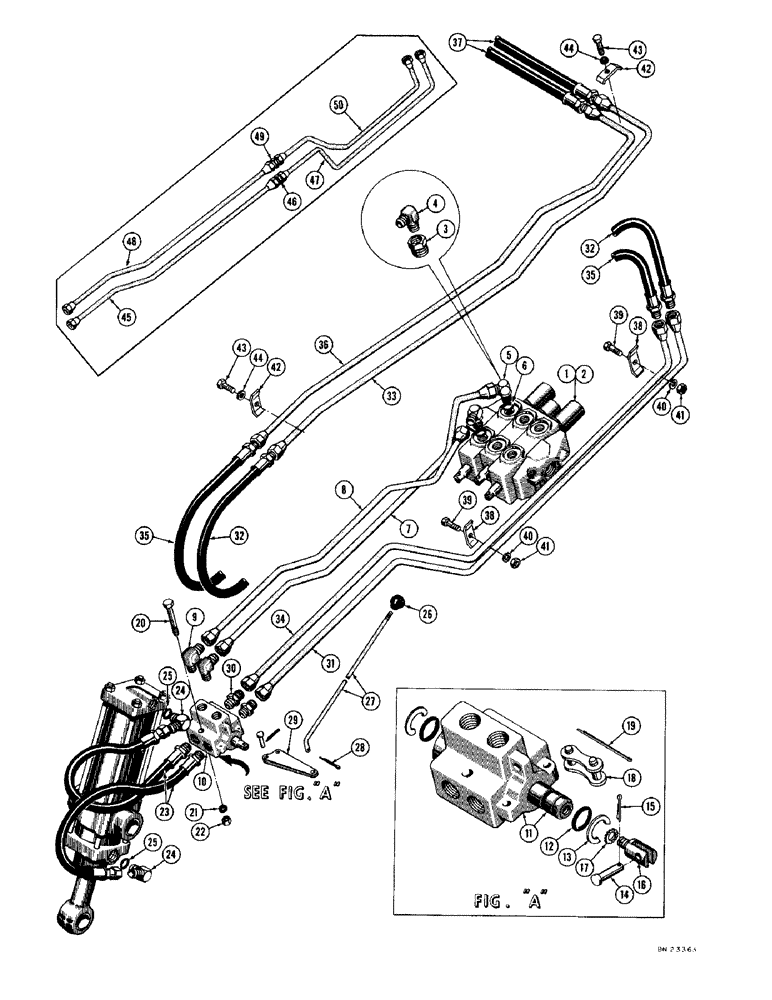

Запчасти Case 1000D (236) - CLAM TYPE BUCKET HYDRAULICS, LOADER RIPPER MODELS ONLY (07) - HYDRAULIC SYSTEM

1

D30150

VALVE - hydraulic, equipment control (Used before tractor serial no. 7104771) See Figure 316 for breakdown

1шт.

2

D31633

LOCK VALVE

VALVE - hydraulic, equipment control (Used on tractor serial no. 7104771 and after) See Figure 322

1шт.

3

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - hex., pipe (3/4" NPT x 1" NPT) Used with D30150 valve only

2шт.

4

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" NPT x 1" NPT)

2шт.

5

R19528

X

ELBOW - 90 degree adjustable (D31633 valve only)

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

D32370

TUBE - equipment control valve to diversion valve, R.H.

1шт.

8

D32372

TUBE - equipment control valve to diversion valve, L.H.

1шт.

9

D29569

X

ELBOW - 90 degree male, 3/4" NPT x 5/8" JIC

2шт.

10

D26726

VALVE

- diversion

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

12

D23691

O-RING

SEAL - "O" ring, spool

2шт.

13

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

14

D23693

AXLE PIN

PIN - handle

1шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

16

D23694

ADAPTER

- handle

1шт.

17

D23695

WASHER

- lock

1шт.

18

D23696

DRAG LINK

LINK - handle

1шт.

19

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

20

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3" (D26726 mounting)

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

23

D32367

HOSE - diversion valve to ripper hydraulic cylinder (19-1/2" long)

2шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 5/8" JIC x 5/8" JIC

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

A26727

BALL

KNOB - diversion valve control rod

1шт.

27

D32362

ROD - diversion valve control

1шт.

28

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

29

D32360

LEVER - diversion valve

1шт.

30

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight male, 3/4" NPT to 3/4" JIC

2шт.

31

D32363

TUBE - diversion valve to bucket cylinder, closed end (Used before tractor serial no. 7104771)

1шт.

32

D31381

HOSE - diversion valve to bucket cylinder, closed end (35-3/16" long)

1шт.

33

D31379

TUBE - diversion valve to bucket cylinder, closed end

1шт.

34

D32365

TUBE - diversion valve to bucket cylinder, rod end (Used before tractor serial no. 7104771)

1шт.

35

D31383

HOSE - diversion valve to bucket cylinder, rod end (33-5/16" long)

1шт.

36

D31375

- diversion valve to bucket cylinder, rod end

1шт.

37

D32411

HOSE

- diversion valve to bucket cylinder (42" long)

2шт.

38

D20045

PLATE ASSY.

CLAMP - tube

2шт.

39

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4" (D20045 mounting)

2шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

42

D20045

PLATE ASSY.

CLAMP - tube

2шт.

43

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4" (D20045 mounting)

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

D32651

TUBE - diversion valve to bucket cylinder, closed end (Used on tractor serial no. 7104771 and after)

1шт.

46

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - male, straight (3/4" JIC x 3/4" JIC)

1шт.

47

D32653

TUBE - diversion valve to bucket cylinder, closed end (Used on tractor serial no. 7104771 and after)

1шт.

48

D32687

TUBE - diversion valve to bucket cylinder, closed end (Used on tractor serial no. 7104771 and after)

1шт.

49

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - male, straight (3/4" JIC x 3/4" JIC)

1шт.

50

D32689

TUBE - diversion valve to bucket cylinder, closed end (Used on tractor serial no. 7104771 and after)

1шт.
