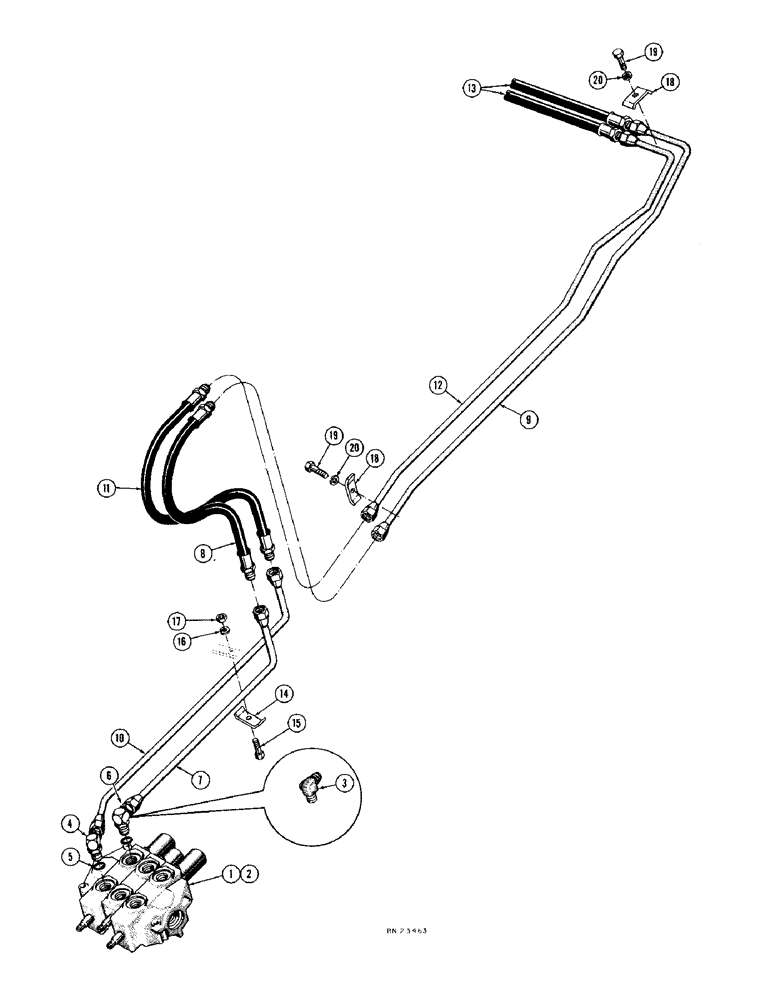

Запчасти Case 1000D (234) - CLAM TYPE BUCKET HYDRAULICS, LOADER COUNTERWEIGHT MODELS ONLY (07) - HYDRAULIC SYSTEM

1

D31137

VALVE - hydraulic, equipment control (Used before tractor serial no. 7104771) See Figure 316 for service information

1шт.

2

D31633

LOCK VALVE

VALVE - hydraulic, equipment control (Used on tractor serial no. 7104771 and after) See Figure 322 for breakdown

1шт.

3

R22444

ELBOW - 90 degree special, 1" NPT x 3/4" JIC (D31137 valve only)

2шт.

4

D26463

FITTING

ELBOW - 90 degree adjustable (D31633 valve only)

2шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight male, 3/4" NPT to 3/4" JIC (D31633 valve only)

2шт.

7

D31377

TUBE - equipment control valve to bucket cylinder, closed end

1шт.

8

D31381

HOSE - equipment control valve to bucket cylinder, closed end (35-3/16" long)

1шт.

9

D31379

TUBE - equipment control valve to bucket cylinder, closed end

1шт.

10

D31373

TUBE - equipment control valve to bucket cylinder, rod end

1шт.

11

D31383

HOSE - equipment control valve to bucket cylinder, rod end (33-5/16" long)

1шт.

12

D31375

- equipment control valve to bucket cylinder, rod end

1шт.

13

D32411

HOSE

- equipment control valve to bucket cylinder (42" long)

2шт.

14

31665

COLLAR CLAMP

CLAMP - tube

1шт.

15

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4" (31665 mounting)

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

18

31665

COLLAR CLAMP

CLAMP - tube

2шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4" (31665 mounting)

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.
