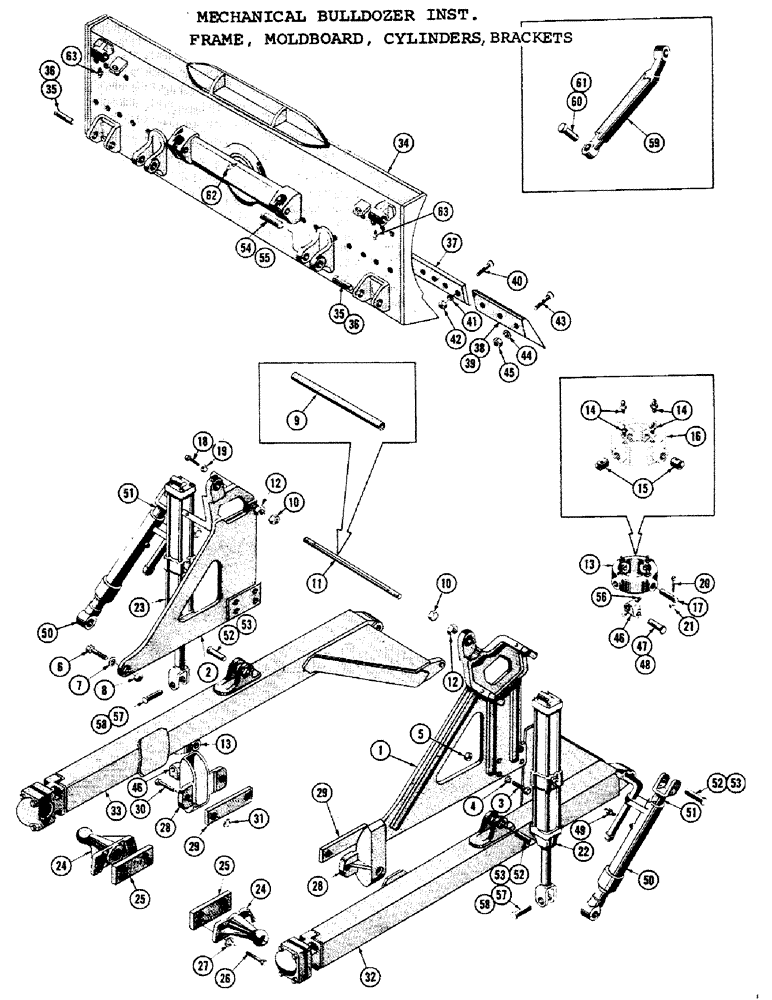

Запчасти Case 1000C (228) - MECHANICAL BULLDOZER INSTALLATION, FRAME, MOLDBOARD, CYLINDERS, BRACKETS (05) - UPPERSTRUCTURE CHASSIS

1

R13978

BRACKET ASS'Y - R.H. cylinder

1шт.

2

R13979

BRACKET ASS'Y - L.H. cylinder

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (R13978 & R13979 mtg.) (45785)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

6

14-1668

HHCS 1-14 NF x 4-1/4 (R13978 & R13979 mtg.)

2шт.

7

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

2шт.

8

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF) (48109)

2шт.

9

70388

SPACER - tie rod (Used up to serial #7100058)

2шт.

10

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF) (Used from ser. #7100058) (48109)

2шт.

11

74102

ROD - tie

1шт.

12

131-370

LOCK NUT

NUT - lock (1-14 NF) (48378)

2шт.

13

70411

YOKE ASS'Y - cylinder

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

3шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

1шт.

15

70332

BUSHING

4шт.

16

NSS

NOT SOLD SEPARAT

YOKE - cylinder

1шт.

17

70333

PIN (70411 mtg.)

8шт.

18

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS 3/8-24 NF x 3-1/2 (70333 mtg.) (45666)

4шт.

19

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

4шт.

20

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS 3/8-24 NF x 4-1/2 (70333 mtg.) (45671)

4шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT - lock (3/8-24 NF) (17606)

4шт.

22

70743

CYLINDER ASS'Y - RH hydraulic (See Figure 312 for breakdown)

1шт.

23

70744

CYLINDER ASS'Y - LH hydraulic (See Figure 312 for breakdown)

1шт.

24

70305

TRUNNION - push

2шт.

25

70385

BLOCK - trunnion (Optional)

2шт.

26

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4-16 NF x 2-3/4 (70305 & 70385 mtg.) (45788)

8шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

28

70377

BRACKET - rub

2шт.

29

70734

WASHER

BLOCK - tub bracket (Optional)

2шт.

30

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4-16 NF x 2-1/4 (70377 & 70734 mtg.) (45786)

4шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

32

70436

BEAM ASS'Y - RH push

1шт.

33

70437

BUSHING

BEAM ASS'Y - LH push

1шт.

34

70689

MOLDBOARD ASS'Y

1шт.

39719

MOLDBOARD ASS'Y - 8 ft. (Optional)

1шт.

35

NLS

NO LONGER SERVICED

PIN (70689 mtg.)

2шт.

36

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (3410 mtg.) (49872) 3/8" x 2 1/4", Slotted

2шт.

37

R22973

KNIFE

BLADE - center cutting

1шт.

16792

EDGE, CUTTING

BLADE - center cutting (8 ft. blade only)

1шт.

38

70441

BLADE

- RH end

1шт.

40

19-832

BOLT

- plow, 1/2-13 NC x 2 (70391 mtg.) (46711)

20шт.

41

92-8

LOCK WASHER,1/2"

(48448) 1/2"

20шт.

42

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

20шт.

43

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - low, 5/8-11 NC x 2-1/4 (70441 & 70442 mtg.) (46722)

6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

(47806) 5/8"-11, G5

6шт.

46

70328

YOKE

UNIVERSAL - piston rod

2шт.

47

70382

X

PIN (70328 mtg.)

2шт.

48

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70382 mtg.) (49872) 3/8" x 2 1/4", Slotted

2шт.

49

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

2шт.

50

70435

STRUT ASS'Y

2шт.

51

70337

SCREW

ASS'Y - top strut

2шт.

52

70349

PIN

(70435 & 70337 mtg.)

4шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) (49872) 3/8" x 2 1/4", Slotted

4шт.

54

70349

PIN

- (70689 mtg.) (Used from serial #7100107)

2шт.

55

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) (used from S/N 7100107) 49872) 3/8" x 2 1/4", Slotted

2шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease 1/8 NP (49200)

4шт.

57

70349

PIN

(70743 & 70744 mtg.)

2шт.

58

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) (49872) 3/8" x 2 1/4", Slotted

2шт.

59

70424

BRACE ASS'Y - diagonal (Used up to serial #7100107)

2шт.

60

70349

PIN

(70424 mtg.) (Used up to serial #7100107)

4шт.

61

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN - 45 degree grease, 1/8 NP

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (Used from serial 7-30-57)

2шт.

D11670

PLATE KIT - moldboard service face, see parts bulletin #2-62

1шт.
