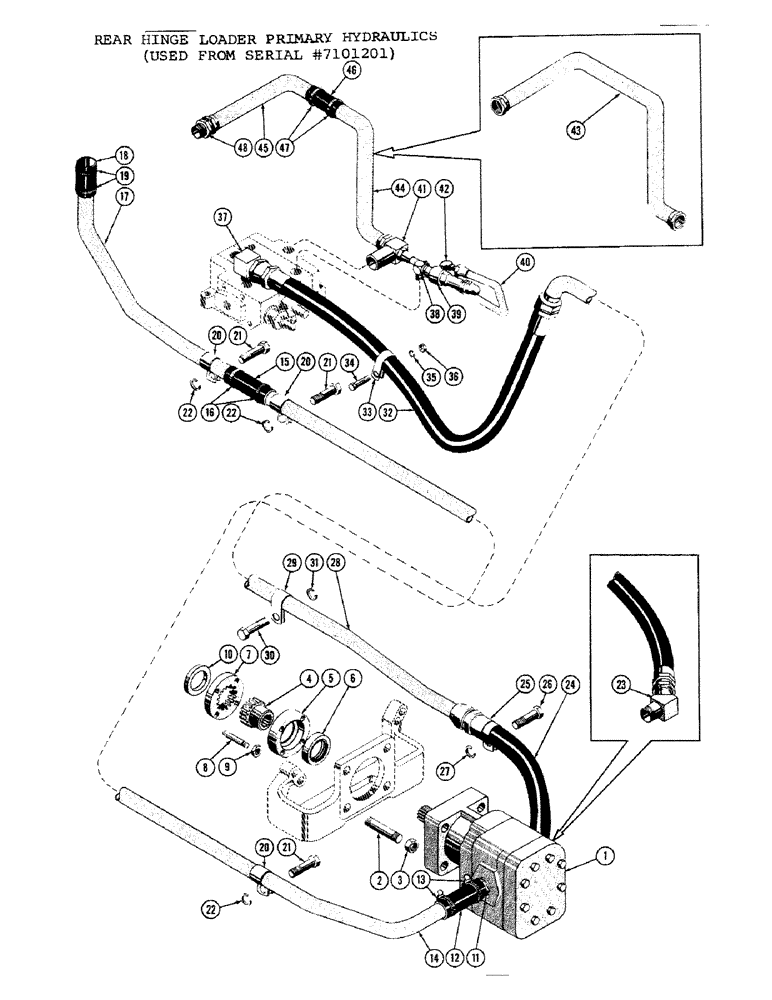

Запчасти Case 1000C (220) - REAR HINGE LOADER PRIMARY HYDRAULICS, USED FROM SERIAL NUMBER 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

R14447

PUMP ASS'Y - hydraulic (See page #332 for breakdown)

1шт.

2

46522

SLEEVE

STUD 1/2-20 NF x 2-1/8 (R14447 mtg.)

4шт.

3

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16-20 NF x 2-5/8 (72991 & 73694 mtg.)

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16-29 NF) (11943)

4шт.

10

R10830

WASHER

- special

1шт.

11

R14162

STEM - straight stem

1шт.

12

R14178

HOSE - low pressure

1шт.

13

49763

X

CLAMP - hose

2шт.

14

R14176

TUBE - suction line

1шт.

15

R14178

HOSE - low pressure

1шт.

16

49763

X

CLAMP - hose

2шт.

17

R14177

TUBE - suction line

1шт.

18

R14169

HOSE

- low pressure

1шт.

19

49763

X

CLAMP - hose

2шт.

20

49773

CLAMP

- tube (R14176 & R14177 mtg.)

3шт.

21

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (49773 mtg.) (45707)

3шт.

22

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

23

218-539

ELBOW,45 Degree, 1 5/8"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

- 45 degree male, 1-1/4 NP x 1-1/4 JIC

1шт.

24

R14172

HOSE ASS'Y

1шт.

25

R14097

CLAMP

- hose (R14172 mtg.)

1шт.

26

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (R14097 mtg.) (45707)

1шт.

27

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

28

R14167

TUBE ASS'Y

1шт.

29

49773

CLAMP

- tube (R14167 mtg.)

1шт.

30

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (49773 mtg.) (45707)

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

R14173

HOSE ASS'Y

1шт.

33

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose (R14173 mtg.)

1шт.

34

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (R14192 mtg.) (45707)

1шт.

35

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

36

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

37

R14142

X

ELBOW - 90 degrees (1 NP x 1-1/4 JIC)

1шт.

38

50851

ELBOW - lateral

1шт.

39

NLS

NO LONGER SERVICED

VALVE ASSY - relief (Used up to 8-9-59) (See Figure 316 for breakdown)

1шт.

R17539

VALVE ASSY - relief (Used from 8-9-59) (See Figure 318 for breakdown)

1шт.

40

R14139

TUBE ASS'Y

1шт.

41

R14141

TEE - special

1шт.

42

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8 JIC x 1/2 NP) (50114)

1шт.

43

NSS

NOT SOLD SEPARAT

TUBE ASS'Y (Used up to ser. #7101204) (Order ref. #44, 45, 46, 47 for service)

1шт.

44

R14491

TUBE ASS'Y (Used from ser. #7101204)

1шт.

45

R14490

TUBE ASS'Y (Used from serial #7101204)

1шт.

46

R14489

HOSE - low pressure (Used from serial #7101204)

1шт.

47

49763

X

CLAMP - hose (Used from serial #7101204)

1шт.

48

R14132

ADAPTER - straight (1 NP x 1-1/4 JIC)

1шт.
