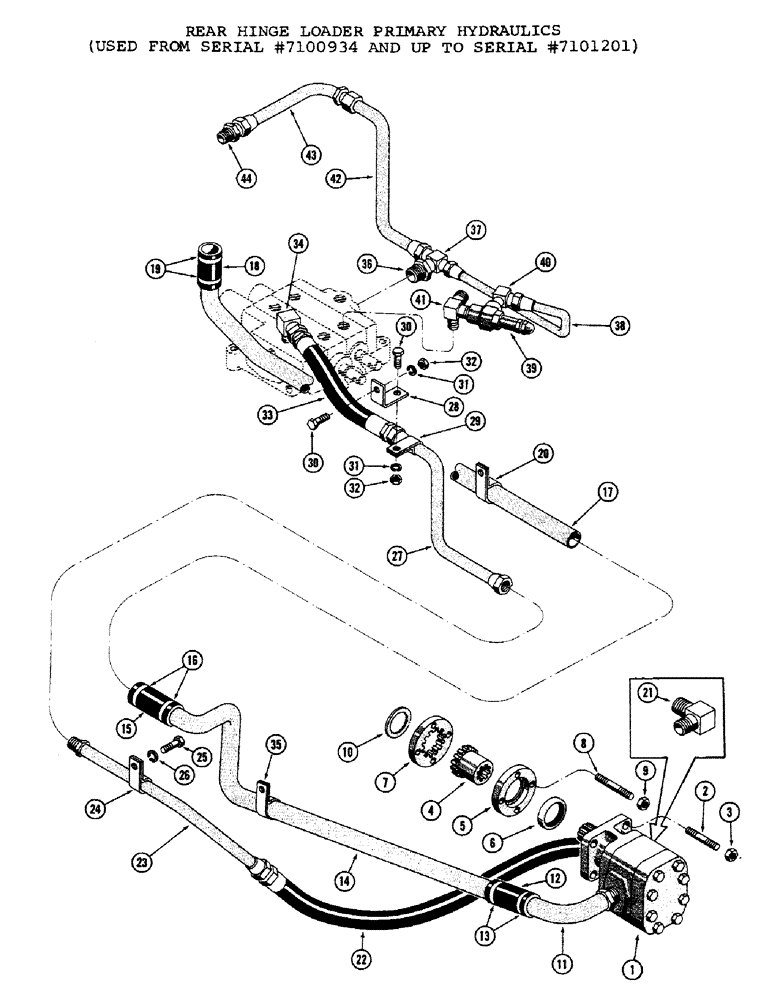

Запчасти Case 1000C (218) - REAR HINGE LOADER PRIMARY HYDRAULICS, USED FROM SERIAL NO. 7100934 AND UP TO SERIAL NO. 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

72397

STUD

PUMP ASS'Y - hydraulic (See page #330 for breakdown) (Use R14447)

1шт.

2

46522

SLEEVE

STUD 1/2-20 NF x 2-1/8 (72397 mtg.)

4шт.

3

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD 7/16-20 NF x 2-5/8 (72991 & 73694 mtg.)

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16-20 NF) (11943)

4шт.

10

R10830

WASHER

- special

1шт.

11

R11863

ELBOW ASS'Y - pump

1шт.

12

R14178

HOSE

1шт.

13

49763

X

CLAMP - hose

2шт.

14

R11218

TUBE - front

1шт.

15

R14169

HOSE

1шт.

16

49763

X

CLAMP - hose

2шт.

17

R11293

TUBE - rear

1шт.

18

R14169

HOSE

1шт.

19

49763

X

CLAMP - hose

2шт.

20

49773

CLAMP

- tube

1шт.

21

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (50119)

1шт.

22

70568

HOSE ASS'Y

1шт.

23

74507

TUBE ASS'Y

1шт.

24

R13049

CLAMP - tube

1шт.

25

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (R13049 mtg.) (45605)

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

27

R12722

TUBE ASS'Y

1шт.

28

71534

BRACKET

1шт.

29

R13049

CLAMP - tube

1шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 & R13049 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

31

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

33

R13206

HOSE ASS'Y

1шт.

34

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1 NP x 1 JIC (50119)

1шт.

35

R11860

CLAMP

- tube (R11218 mtg.)

1шт.

36

221-70

BUSHING - outside hex (1-1/4 NP x 1 NP) (41645)

1шт.

37

50850

PROFILE

TEE - special

1шт.

38

71328

TUBE ASS'Y

1шт.

39

33959

PIPE FITTING

VALVE - relief (See 1000 parts book #A1006 for breakdown)

1шт.

40

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 male (1/2 NP x 5/8 JIC) (50014)

1шт.

41

50851

ELBOW - lateral

1шт.

42

R11748

TUBE ASS'Y

1шт.

43

R11750

TUBE ASS'Y

1шт.

44

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male (1 NP x 1 JIC) (50029)

1шт.
