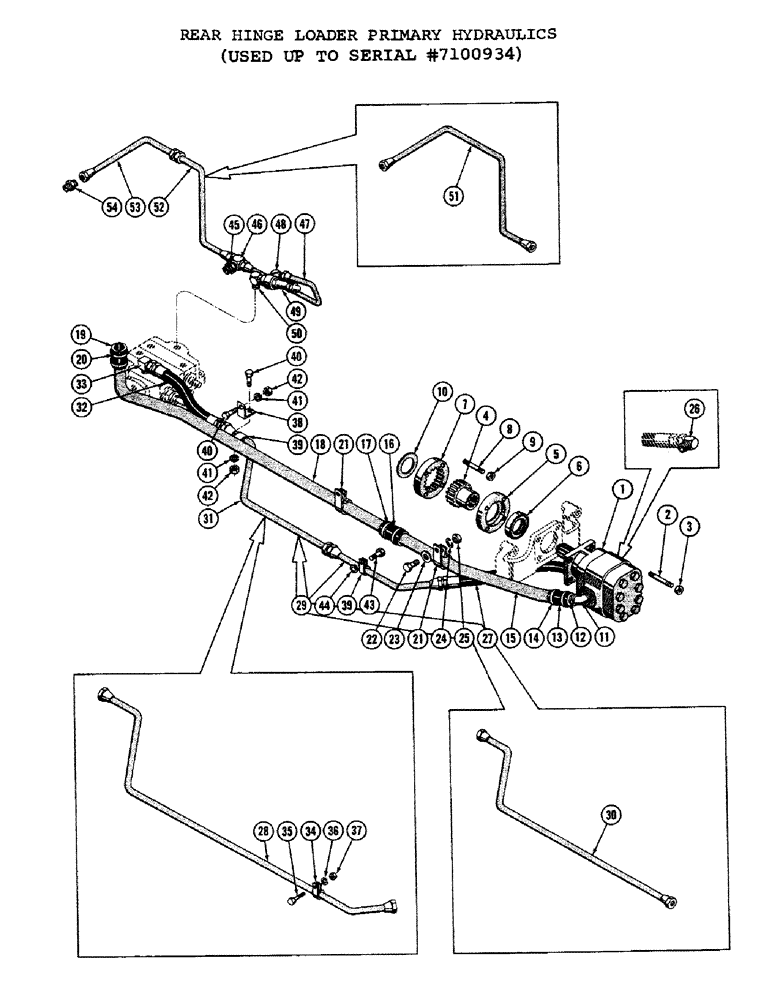

Запчасти Case 1000C (216) - REAR HINGE LOADER PRIMARY HYDRAULICS, USED UP TO SERIAL NUMBER 7100934 (05) - UPPERSTRUCTURE CHASSIS

1

72397

STUD

PUMP ASS'Y. - hydraulic (See page #330 for breakdown) (Use R14447)

1шт.

2

46522

SLEEVE

STUD - 1/2-20 NF x 2-1/8 (72397 mtg.)

4шт.

3

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16-20 NF x 2-5/8 (72991 & 73694 mtg.)

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16-20 NF) (11943)

4шт.

10

R10830

WASHER

- special

1шт.

11

221-407

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 45 degree street, 1-1/4 NP (41691)

1шт.

12

71374

YOKE

NIPPLE - special

1шт.

13

R14178

HOSE - low pressure

1шт.

14

49763

X

CLAMP - hose

2шт.

15

71327

TUBE - front

1шт.

16

R14169

HOSE

- low pressure

1шт.

17

49763

X

CLAMP - hose

2шт.

18

70576

TUBE - rear

1шт.

19

R14169

HOSE

- low pressure

1шт.

20

49763

X

CLAMP - hose

2шт.

21

49773

CLAMP

- tube

2шт.

22

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (49773 mtg.) (45707)

1шт.

23

195-33

WASHER,1/2"

- plain (48428)

1шт.

24

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

25

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

26

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ELBOW - 90 degree male (50119)

1шт.

27

70568

HOSE ASS'Y.

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. (Used up to ser. 7100604) (Order kit #R2516)

1шт.

29

74507

TUBE ASS'Y. (Used from serial #7100604)

1шт.

30

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. (Used from serial #7100604 and up to serial #7100836) (Order kit #R2516)

1шт.

31

R12722

TUBE ASS'Y. - (Used from serial #7100836)

1шт.

32

R13206

HOSE ASS'Y. - (Used from serial #7100836)

1шт.

33

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (50119)

1шт.

34

49840

CLAMP

- (Used up to serial #7100836)

1шт.

35

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (49840 mtg.) (Used up to ser. #7100836)

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used up to S/N 7100836) (48444) 1/4"

1шт.

37

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (Used up to ser. #7100836)

1шт.

38

71534

BRACKET - (Used from serial #7100836)

1шт.

39

R13049

CLAMP - tube (Used from serial #7100836)

2шт.

40

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 & R13049 mtg.) (Used from S/N 7100836) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

41

92-5

LOCK WASHER,5/16"

(Used from S/N 7100836) (48445) 5/16"

2шт.

42

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from S/N 7100836)

2шт.

43

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (R13049 mtg.) (Used from ser. #7100836)

1шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used from S/N 7100836) 1/4"

1шт.

45

221-70

BUSHING - outside hex (1-1/4 NP x 1 NP) (41645)

1шт.

46

50850

PROFILE

TEE - special

1шт.

47

71328

TUBE ASS'Y

1шт.

48

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (50114)

1шт.

49

NLS

NO LONGER SERVICED

VALVE - relief (See 1000 parts book #A1006 for breakdown)

1шт.

50

50851

ELBOW - lateral

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - (Used up to ser. #7100677) (Order ref. #52 & 53)

1шт.

52

R11748

TUBE ASS'Y. - (Used from serial #7100677)

1шт.

53

R11750

TUBE ASS'Y. - (Used from serial #7100677)

1шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male (1 NP x 1 JIC) (50029)

1шт.
