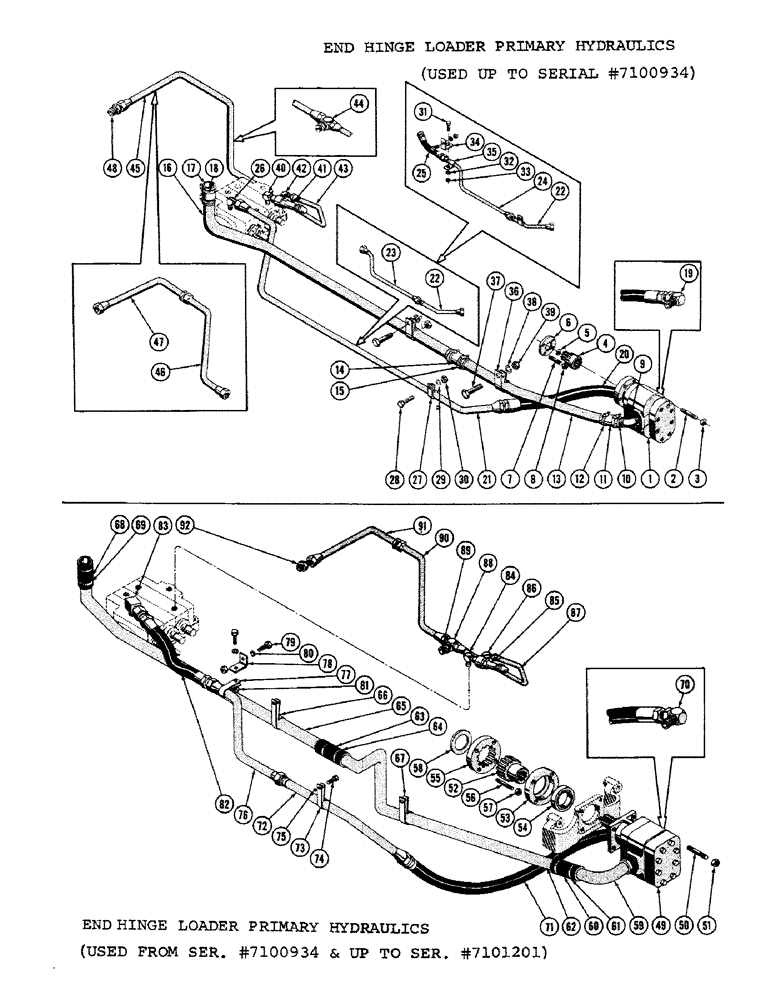

Запчасти Case 1000C (212) - END HINGE LOADER PRIMARY HYDRAULICS, USED UP TO SERIAL NUMBER 7100934 (05) - UPPERSTRUCTURE CHASSIS

1

R2565

PUMP ASS'Y. - hydraulic (Used up to serial #7100020) (See Figure 322 for breakdown)

1шт.

R2565

PUMP ASS'Y. - hydraulic (Used from serial #7100020 and up to ser. #7100220) (See Figure 324 for breakdown)

1шт.

R2565

PUMP ASS'Y. - hydraulic (Used from serial #7100220 and up to serial #7100934) (See Figure 324 for breakdown)

1шт.

2

46513

ROD

STUD - 3/8-24 NF x (pump mounting)

6шт.

3

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

6шт.

4

R13929

COUPLING - male

1шт.

5

49480

RING

- snap

1шт.

6

R13930

COUPLING - female

1шт.

7

46512

ROLLER BEARING

STUD - 7/16-20 NF x 1-3/4 (70543 mt'g.)

4шт.

8

131-367

LOCK NUT

NUT - lock (7/16-20 NF)

4шт.

9

221-407

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 45 degree street 1-1/4 NP (41691)

1шт.

10

71374

YOKE

NIPPLE - special

1шт.

11

R14169

HOSE

- low pressure

1шт.

12

49763

X

CLAMP - hose

2шт.

13

71327

TUBE -, Serial Range: pump-tank

1шт.

14

R14169

HOSE

- low pressure

1шт.

15

49763

X

CLAMP - hose

2шт.

16

70576

TUBE -, Serial Range: pump-tank

1шт.

17

R14169

HOSE

- low pressure

1шт.

18

49763

X

CLAMP - hose

2шт.

19

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1 NP-1 JIC (50119)

1шт.

20

70568

HOSE ASS'Y. -, Serial Range: pump-valve

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - pump to valve (Used up to ser. #7100836) (Order kit #R2516 for service)

1шт.

22

74507

TUBE ASS'Y. - (Used from serial #7100250)

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - (Used from serial #7100250 & up to ser. #7100836) (Order kit #R2516 for service)

1шт.

24

R12722

TUBE ASS'Y. - (Used from serial #7100836)

1шт.

25

R13206

HOSE ASS'Y. - (Used from serial #7100836)

1шт.

26

218-480

FITTING

ELBOW - 90 degree male, 1 NP - 1 JIC (50119)

1шт.

27

49840

CLAMP

- tube (72149 mt'g.) (Used up to ser. #7100836)

1шт.

28

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (49840 mt'g.) (Used up to ser. #7100836) (45605)

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used up to S/N 7100836) (48444) 1/4"

1шт.

30

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (Used up to ser. #7100836) (48100)

1шт.

31

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Used from S/N 7100836) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

32

92-5

LOCK WASHER,5/16"

(Used from S/N 7100836) 5/16"

2шт.

33

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from S/N 7100836)

2шт.

34

71534

BRACKET - (Used from ser. #7100836)

1шт.

35

R13049

CLAMP - tube (Used from ser. #7100836)

1шт.

36

49773

CLAMP

- tube (71327 & 70576 mt'g.)

2шт.

37

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (49773 mt'g.) (45707)

2шт.

38

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

39

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

40

50851

ELBOW - 90 degree lateral

1шт.

41

NLS

NO LONGER SERVICED

VALVE ASS'Y. - relief (See Figure 316 for breakdown)

1шт.

42

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NP - 5/8 JIC (50114)

1шт.

43

71328

TUBE ASS'Y. - relief valve to control valve

1шт.

44

50850

PROFILE

ELBOW - 90 degree lateral

1шт.

221-70

BUSHING - outside hex, 1 NP - 1-1/4 NP (Not shown)

1шт.

45

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - valve to tank (Used up to ser. #7100677) (Order ref. #46 & 47 for service)

1шт.

46

R11748

TUBE ASS'Y. - (Used from ser. #7100677)

1шт.

47

R11750

TUBE ASS'Y. - (Used from ser. #7100677)

1шт.

48

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1 NP - 1 JIC (50029)

1шт.

49

R12536

PUMP ASS'Y. - hydraulic (See Figure 328 for breakdown), used from s/n 7100934, Serial Range: up-7101201

1шт.

50

46522

SLEEVE

STUD 1/2-20 NF x 2-1/8 (R11293 mt'g.), used from s/n 7100934, Serial Range: up-7101201

4шт.

51

13-156

NUT - lock (1/2-20 NF), used from s/n 7100934, Serial Range: up-7101201

4шт.

52

R13927

QUICK MALE COUPLING

COUPLING - male, used from s/n 7100934, Serial Range: up-7101201

1шт.

53

72991

RETAINER - seal, used from s/n 7100934, Serial Range: up-7101201

1шт.

54

40659

- oil, used from s/n 7100934, Serial Range: up-7101201

1шт.

55

R13928

COUPLING

- female, used from s/n 7100934, Serial Range: up-7101201

1шт.

56

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16-20 NF x 7/16-14 NC x 2-5/8, used from s/n 7100934, Serial Range: up-7101201

4шт.

57

131-367

LOCK NUT

NUT - lock (7/16-20 NF), used from s/n 7100934, Serial Range: up-7101201

4шт.

58

R10830

WASHER

- special, used from s/n 7100934, Serial Range: up-7101201

1шт.

59

R11863

ELBOW ASS'Y. - pump, used from s/n 7100934, Serial Range: up-7101201

1шт.

60

R14169

HOSE

used from s/n 7100934, Serial Range: up-7101201

1шт.

61

49763

X

CLAMP - hose, used from s/n 7100934, Serial Range: up-7101201

2шт.

62

R11218

TUBE - front, used from s/n 7100934, Serial Range: up-7101201

1шт.

63

R14178

HOSE, used from s/n 7100934, Serial Range: up-7101201

1шт.

64

49763

X

CLAMP - hose, used from s/n 7100934, Serial Range: up-7101201

2шт.

65

R11293

TUBE - rear

1шт.

66

49773

CLAMP

- tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

67

R11860

CLAMP

- tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

68

R14169

HOSE

used from s/n 7100934, Serial Range: up-7101201

1шт.

69

49763

X

CLAMP - hose, used from s/n 7100934, Serial Range: up-7101201

2шт.

70

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male 1" NP - 1" JIC, used from s/n 7100934 up to 7101201

1шт.

71

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

HOSE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

72

74507

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

73

R13049

CLAMP - tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

74

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (R13049 mt'g.), used from s/n 7100934 up to 7101201

1шт.

75

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used from S/N 7100934 up to 7101201) 1/4"

1шт.

76

R12722

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

77

R13049

CLAMP - tube, used from s/n 7100934, Serial Range: up-7101201

1шт.

78

71534

BRACKET, used from s/n 7100934, Serial Range: up-7101201

1шт.

79

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 and R13049 mt'g.), used from S/N 7100934 up to 7101201 Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

80

92-5

LOCK WASHER,5/16"

(Used from S/N 7100934 up to 7101201) 5/16"

2шт.

81

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from S/N 7100934 up to 7101201)

2шт.

82

R13206

HOSE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

83

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" NP - 1" JIC, used from s/n 7100934 up to 7101201

1шт.

84

50851

ELBOW - lateral, used from s/n 7100934, Serial Range: up-7101201

1шт.

85

33959

PIPE FITTING

VALVE - relief (See page #316 for breakdown), used from s/n 7100934, Serial Range: up-7101201

1шт.

86

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NP - 5/8 JIC, used from s/n 7100934 up to 7101201

1шт.

87

71328

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

88

50850

PROFILE

ELBOW - 90 degrees, 1" x 1" x 5/8 JIC, used from s/n 7100934, Serial Range: up-7101201

1шт.

89

221-70

BUSHING - outside hex 1-1/4 x 1, used from s/n 7100934, Serial Range: up-7101201

1шт.

90

R11748

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

91

R11750

TUBE ASS'Y., used from s/n 7100934, Serial Range: up-7101201

1шт.

92

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

MALE - connector, 1" JIC - 1" NPT, used from s/n 7100934 up to 7101201

1шт.
