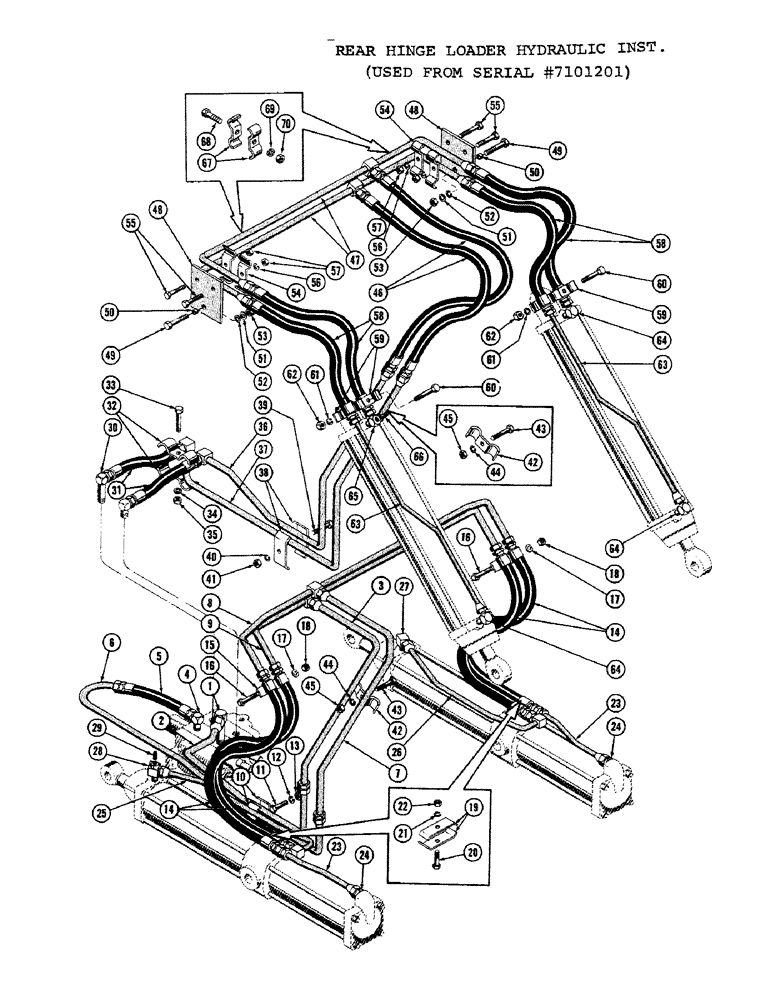

Запчасти Case 1000C (208) - REAR HINGE LOADER HYDRAULIC INSTALLATION, USED FROM SERIAL NUMBER 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- extra long male (1 NP x 1 JIC) (50574)

1шт.

2

R13499

TUBE ASS'Y.

1шт.

3

73081

TUBE ASS'Y.

1шт.

4

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (1 NP x 1 JIC) (50119)

1шт.

5

R13688

HOSE ASS'Y.

1шт.

6

R13500

TUBE ASS'Y.

1шт.

7

73083

TUBE ASS'Y.

1шт.

8

R14351

TUBE ASS'Y.

1шт.

9

73066

TUBE ASS'Y.

1шт.

10

31665

COLLAR CLAMP

CLAMP - tube (R13499 & R13500 mtg.)

2шт.

11

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.) (45635)

1шт.

12

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

13

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

14

73085

HOSE

ASS'Y.

4шт.

15

73089

ARMATURE

CLAMP - hose (73085 mtg.)

2шт.

16

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS 5/16-24 NF x 2-1/4 (73089 mtg.) (45636)

2шт.

17

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

18

25-115

NUT,5/16"-24, G5

- reg. SF hex (48101)

2шт.

19

31665

COLLAR CLAMP

CLAMP - hose (73085 mtg.)

4шт.

20

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mtg.) (45635)

2шт.

21

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (48101)

2шт.

23

R12391

TUBE ASS'Y

2шт.

24

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (3/4 NP x 3/4 JIC) (50026)

2шт.

25

73087

ENGINE FLYWHEEL

TUBE ASS'Y. - R.H.

1шт.

26

73088

ENGINE FLYWHEEL

TUBE ASS'Y. - L.H.

1шт.

27

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NP x 3/4 JIC) (50116)

1шт.

28

R13365

ELBOW - special, 90 degree (3/4 NP x 3/4 JIC)

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- extended square head pipe, 1/8 NP (41820)

1шт.

30

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- long 90 degree male (1 NP x 1 JIC) (50559)

1шт.

31

R14487

HOSE ASS'Y.

2шт.

32

73089

ARMATURE

CLAMP - hose (R14487 mtg.)

2шт.

33

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (73089 mtg.) (45635)

1шт.

34

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

35

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

36

R13497

TUBE ASS'Y.

1шт.

37

R13498

TUBE ASS'Y.

1шт.

38

31665

COLLAR CLAMP

CLAMP - tube (R13497 & R13498 mtg.)

2шт.

39

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS 5/16-24 NF x 2-1/4 (31665 mtg.) (45636)

1шт.

40

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

41

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

42

73089

ARMATURE

CLAMP - tube (R13497, R13498, 73081 & 73083 mtg.)

2шт.

43

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (73089 mtg.) (45635)

2шт.

44

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

46

73085

HOSE

ASS'Y.

2шт.

47

73056

TUBE ASS'Y.

2шт.

48

74613

BRACKET - tube support

2шт.

49

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS 1/2-20 NF x 3 (74613 mtg.) (45714)

2шт.

50

74612

SPACER

2шт.

51

195-33

WASHER,1/2"

- plain (48428)

2шт.

52

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

53

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

54

73089

ARMATURE

CLAMP - tube (73056 mtg.)

4шт.

55

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (73089 mtg.) (45633)

4шт.

56

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

57

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

58

74614

HOSE ASS'Y.

4шт.

59

73089

ARMATURE

CLAMP - hose (74614 mtg.)

4шт.

60

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (73089 mtg.) (45633)

2шт.

61

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

62

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

64

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NP x 3/4 JIC) (50116)

3шт.

65

NSS

NOT SOLD SEPARAT

TEE - special (Used from 4-10-59) (Order (1) R14846 and (1) 221-12 for service)

1шт.

66

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. head (Used up to 4-10-59)

1шт.

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, ext. head (Used up to 4-10-59)

1шт.

67

R15257

CLAMP

- tube

4шт.

68

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (R15257 mt'g.)

2шт.

69

92-5

LOCK WASHER,5/16"

2шт.

70

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.
