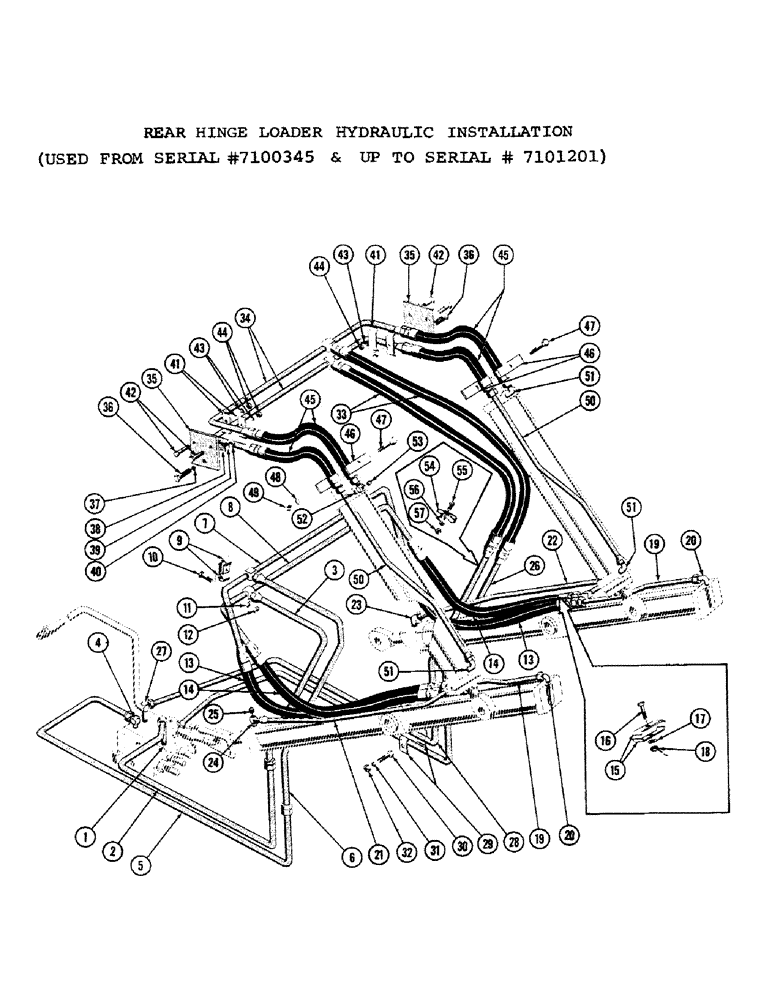

Запчасти Case 1000C (206) - REAR HINGE LOADER HYDRAULIC INSTALLATION, USED FROM SER. NO. 7100345 AND USED UP TO SER. NO. 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- extra long male (1 NP x 1 JIC) (50574)

1шт.

2

73079

TUBE ASS'Y.

1шт.

3

73081

TUBE ASS'Y.

1шт.

4

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (1 NP x 1 JIC) (50119)

1шт.

5

73077

WASHER,30.75" Length

TUBE ASS'Y.

1шт.

6

73083

TUBE ASS'Y.

1шт.

7

73061

SPARE PART,37.5" Length

TUBE ASS'Y.

1шт.

8

73066

TUBE ASS'Y.

1шт.

9

R11405

CLAMP

- tube (73061 & 73066 mt'g.)

4шт.

10

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R11405 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

2шт.

11

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

12

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

13

73124

ASS'Y.

2шт.

14

73085

HOSE

ASS'Y.

2шт.

15

31665

COLLAR CLAMP

CLAMP - hose (73124 & 73085 mt'g.)

4шт.

16

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.) (45635)

2шт.

17

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

18

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

19

73069

TUBE ASS'Y.

2шт.

20

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NP x 3/4 JIC) (50116)

2шт.

21

73087

ENGINE FLYWHEEL

TUBE ASS'Y. R.H.

1шт.

22

73088

ENGINE FLYWHEEL

TUBE ASS'Y. L.H.

1шт.

23

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NP x 3/4 JIC)

1шт.

24

R13365

ELBOW - special, 90 degrees (3/4 NP x 3/4 JIC)

1шт.

25

221-11

PLUG,Sq Hd, 1/8"-27

- extended square head pipe, 1/8 NP (417820)

1шт.

26

73071

TUBE ASS'Y.

1шт.

27

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- long 90 degree male (1 NP x 1 JIC) (50559)

1шт.

28

73073

KIT,36.375" Length

TUBE ASS'Y.

1шт.

29

31665

COLLAR CLAMP

CLAMP - tube (73071 & 73072 mt'g.)

2шт.

30

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x (31665 mt'g.) (45635)

1шт.

31

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

33

73085

HOSE

ASS'Y.

2шт.

34

73056

TUBE ASS'Y.

2шт.

35

74613

BRACKET - tube support (73056 mt'g.)

2шт.

36

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS 1/2-20 NF x 3 (74613 mt'g.) (45714)

2шт.

37

74612

SPACER

2шт.

38

195-33

WASHER,1/2"

- plain (48428)

2шт.

39

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

40

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

41

73089

ARMATURE

CLAMP - tube (73056 mt'g.)

4шт.

42

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCWS 5/16-24 NF x 1-1/2 (73089 mt'g.) (45633)

2шт.

43

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

44

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

45

74614

HOSE ASS'Y.

4шт.

46

73089

ARMATURE

CLAMP - hose (74614 mtg.)

4шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (73089 mt'g.) (45633)

2шт.

48

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

49

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

50

73075

TUBE ASS'Y.

2шт.

51

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4 NP x 3/4 JIC) (50116)

3шт.

52

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree special (Order (1) R14846 and (1) 221-12 for ser.)

1шт.

53

221-11

PLUG,Sq Hd, 1/8"-27

- extended square head pipe, 1/8 NP (41820)

1шт.

54

R11405

CLAMP

- tube (73071 & 73073 mt'g.) (45632)

1шт.

55

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(R11405 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

56

92-5

LOCK WASHER,5/16"

(48445) 5/16"

1шт.

57

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.
