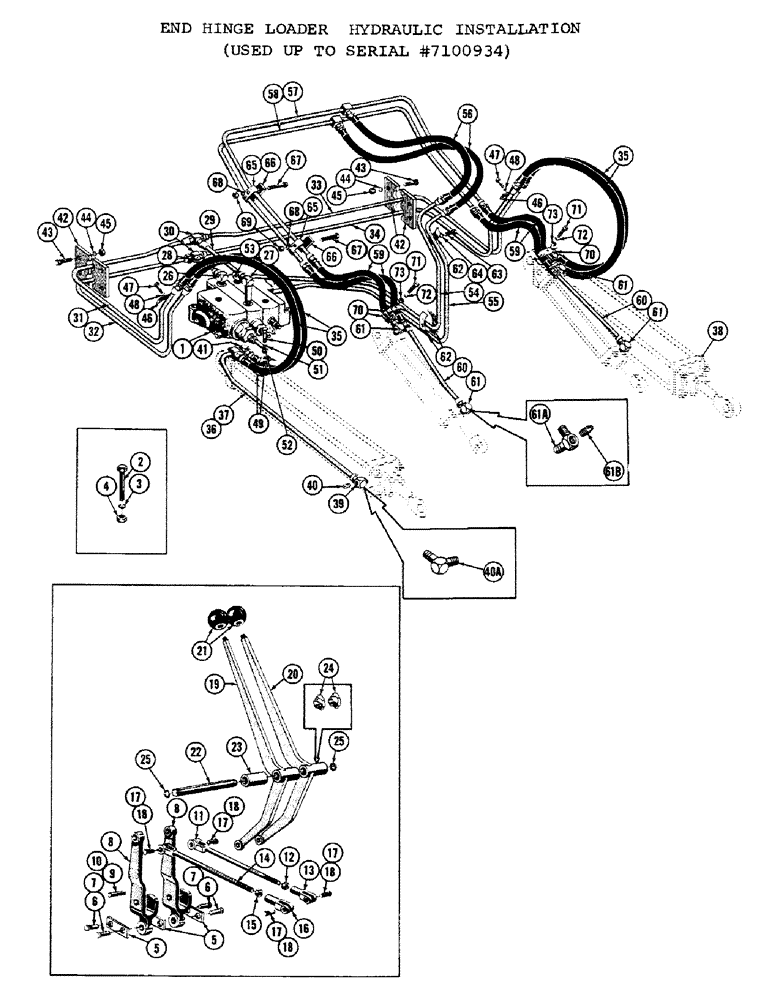

Запчасти Case 1000C (202) - END HINGE LOADER HYDRAULIC INSTALLATION, USED UP TO SERIAL NUMBER 7100934, LEVER AND VALVE SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

34369

VALVE ASS'Y. - hyd. (See Figure 338 for breakdown) (Order D30125 if complete valve as required) (Bul. 1-14-63)

1шт.

2

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2 (34369 mt'g.) (45712)

3шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

4

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

5

70122

LINK - control valve

4шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - link (70122 mt'g.) (48665)

4шт.

7

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (48693) 1/8" x 3/4"

4шт.

8

71300

PIN

LEVER - hydraulic valve

2шт.

9

70137

PIN - valve lever (71300 mt'g.)

2шт.

10

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (48693) 1/8" x 3/4"

4шт.

70157

ROD ASS'Y - valve control

1шт.

11

70182

ROD - valve control

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

70169

ROD ASS'Y. - valve control

1шт.

14

70183

RING

ROD - valve control

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (70157 & 70169 mt'g.) (48663) 3/8" x 1.060"

4шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

4шт.

19

NSS

NOT SOLD SEPARAT

LEVER - valve control (Boom) (Used up to serial #7100844) (Order (1) #74889 lever & (2) #74898 bushings)

1шт.

74889

LEVER - valve control (Boom) (Used from serial #7100844)

1шт.

20

NSS

NOT SOLD SEPARAT

LEVER - valve control (Bucket) (Used up to serial #7100844) (Order (1) #74890 lever & (2) #74898 bushings)

1шт.

74890

LEVER - valve control (Bucket) (Used from serial #7100844)

1шт.

21

CAS31375

KNOB

BALL - grip

2шт.

22

70148

SHAFT - valve lever pivot

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - lever (Used up to serial #7100844) (Order (1) #74849 lever & (2) #74898 bushings)

1шт.

74849

SPACER - lever (Used from serial #7100844)

1шт.

24

74898

BUSHING - nylon (Used from serial #7100844)

6шт.

25

W-10757-S

RING - snap (49479)

2шт.

26

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1 NP x 1 JIC (50119), loader hyd sysetm

1шт.

27

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree extra long male, 1 NP x 1 JIC (50574), loader hyd sysetm

1шт.

28

70700

SPRING

TUBE ASS'Y. - valve to manifold, lower, loader hyd sysetm

1шт.

29

72278

TUBE ASS'Y. - valve to manifold, upper, loader hyd sysetm 5.875" Length

1шт.

30

71326

TEE - special, loader hyd sysetm

2шт.

31

72159

BUSHING

TUBE ASS'Y. - manifold, right upper, loader hyd sysetm

1шт.

32

72157

TUBE ASS'Y. - manifold, right lower, loader hyd sysetm

1шт.

33

72154

TUBE ASS'Y. - manifold, left upper, loader hyd sysetm

1шт.

34

72152

TUBE ASS'Y. - manifold, left lower, loader hyd sysetm

1шт.

35

71379

PLATE

HOSE ASS'Y. - manifold to lift cylinders, loader hyd sysetm

4шт.

36

71468

TUBE ASS'Y. - to lift cylinder front ports, LH, loader hyd sysetm

1шт.

37

71469

SPARE PART

TUBE ASS'Y. - to lift cylinder front ports, RH, loader hyd sysetm

1шт.

38

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP TO 3/4 JIC, loader hyd sysetm

1шт.

39

50852

ELBOW - 90 degree special male (RH only), loader hyd sysetm Flg, USR, 3/4"-10

1шт.

40

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd. pipe, 1/8 NP (Used up to 6-16-57), loader hyd sysetm

1шт.

40a

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC (Used from 6-16-57), loader hyd sysetm

3шт.

41

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC (50116), loader hyd sysetm

2шт.

42

72542

RING

BLOCK - clamping, loader hyd sysetm

4шт.

43

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (72542 mt'g.) (45631), loader hyd sysetm

8шт.

44

195-21

WASHER,5/16"

plain (48425), Loader hyd sysetm 5/16"

8шт.

45

131-365

LOCK NUT

NUT - lock (5/16-24 NF) (11942), loader hyd sysetm

8шт.

46

31665

COLLAR CLAMP

CLAMP - tube (Manifold mt'g.), loader hyd sysetm

2шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (31665 mt'g.) (45633), loader hyd sysetm

2шт.

48

92-5

LOCK WASHER,5/16"

(48445), loader hyd system 5/16"

2шт.

49

31665

COLLAR CLAMP

CLAMP - tube (71379 mt'g.), loader hyd sysetm

4шт.

50

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (31665 mt'g.) (45635), loader hyd sysetm

2шт.

51

92-5

LOCK WASHER,5/16"

(48445), loader hyd system 5/16"

2шт.

52

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), loader hyd system

2шт.

53

218-502

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree long male, 1 NP to 1 JIC (50559), loader hyd sysetm

1шт.

54

71462

TUBE ASS'Y. - valve to manifold, upper, loader hyd sysetm

1шт.

55

71460

BUSHING

TUBE ASS'Y. - valve to manifold, lower, loader hyd sysetm

1шт.

56

71386

HOSE ASS'Y. - to manifold, loader hyd sysetm

2шт.

57

71373

TUBE ASS'Y. - manifold, upper, loader hyd sysetm

1шт.

58

71372

TUBE ASS'Y. - manifold, lower, loader hyd sysetm

1шт.

59

71388

HOSE ASSY.

HOSE ASS'Y. - manifold to dump cylinder, loader hyd sysetm

4шт.

60

71362

KEY

TUBE ASS'Y - to dump cylinder front ports, loader hyd sysetm

2шт.

61

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC (Used up 6-16-57), loader hyd sysetm

4шт.

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NP to 3/4 JIC (Used from 6-16-57), loader hyd sysetm

3шт.

61a

50852

ELBOW - 90 degree special (Used from 6-16-57), loader hyd sysetm Flg, USR, 3/4"-10

1шт.

61b

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd. 1/8 NP (Used from 6-16-57), loader hyd sysetm

1шт.

62

31665

COLLAR CLAMP

CLAMP - tube (71462 & 71460 mt'g.), loader hyd sysetm

3шт.

63

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Loader hydraulic system Hex, 5/16"-24 x 1 3/4", G5

1шт.

64

92-5

LOCK WASHER,5/16"

(48445), loader hyd system 5/16"

1шт.

65

31665

COLLAR CLAMP

PLATE - clamp (71373 & 71372 mt'g.) (45642), loader hyd sysetm

4шт.

66

70723

SPACER - tubing, loader hyd sysetm

4шт.

67

14-560

HHCS 5/16-16 NF x 3-3/4 (31665 mt'g.) (45642), loader hyd sysetm

4шт.

68

92-5

LOCK WASHER,5/16"

(48445), loader hyd system 5/16"

4шт.

69

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), loader hyd system

4шт.

70

31665

COLLAR CLAMP

CLAMP - tube (71338 mt'g.), loader hyd sysetm

4шт.

72

92-5

LOCK WASHER,5/16"

(48445), loader hyd system 5/16"

2шт.

73

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), loader hyd system

2шт.
