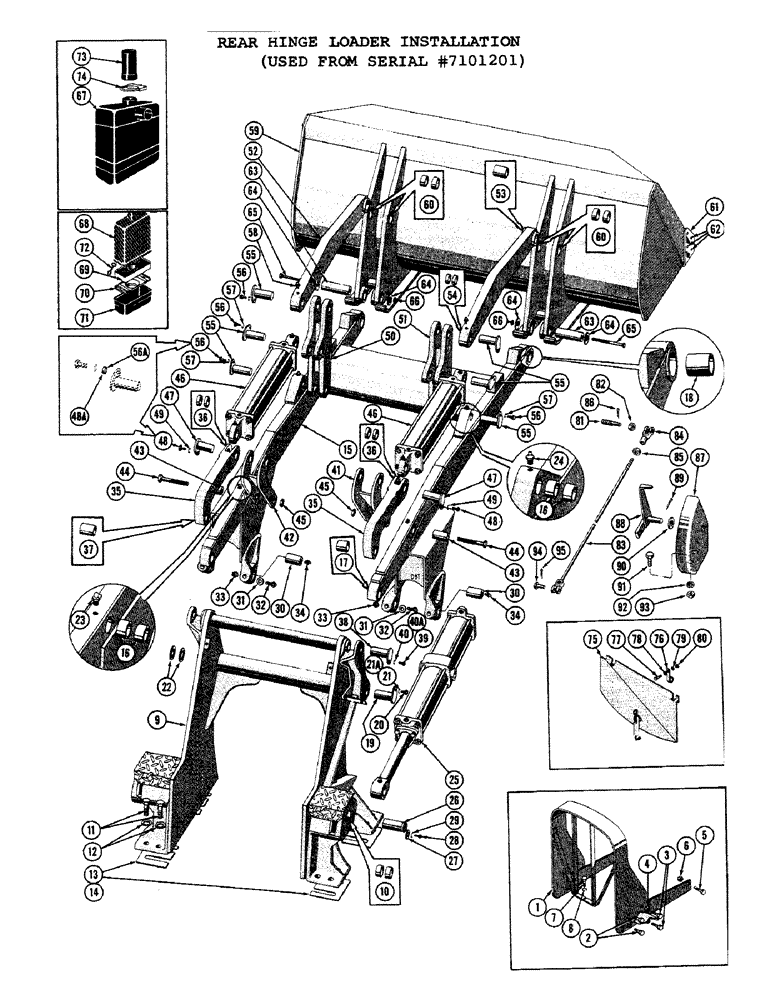

Запчасти Case 1000C (198) - REAR HINGE LOADER INSTALLATION, USED FROM SERIAL NUMBER 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

R13976

GUARD ASS'Y. - front

1шт.

2

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4-16 NF x 2-3/4 (R13976 mt'g.)

4шт.

3

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS 3/4-16 NF x 3 (R13976 mt'g.)

4шт.

4

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4-16 NF)

4шт.

5

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS 1-14 NF x 2-3/4 (R13976 mt'g.)

2шт.

6

131-370

LOCK NUT

NUT - lock (1-14 NF)

2шт.

7

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS 1-14 NF x 2-1/2 (R13976 mt'g.)

1шт.

8

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9

R14279

FRAME ASS'Y. - upright

1шт.

10

70466

BUSHING

4шт.

11

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS 1-14 NF x 2-3/4 (R14279 mt'g.)

16шт.

12

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

16шт.

13

73169

SHIM

1шт.

14

73170

SHIM

1шт.

15

R14321

FRAME ASS'Y. - lift

1шт.

16

72936

BUSHING

8шт.

17

R14259

BUSHING

2шт.

18

R13421

BUSHING

2шт.

19

R14702

PIN ASS'Y. - (R14321 mt'g.)

2шт.

20

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(R14702 mt'g.) Hex, 5/8"-18 x 1 3/4", G5

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21a

195-41

WASHER,5/8"

2шт.

22

74298

WASHER

SPACER

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

6шт.

25

R13565

CYLINDER ASSY.

CYLINDER ASS'Y. - lift (See Figure 306 for breakdown)

2шт.

26

70524

PIN

(R13565 mt'g.)

2шт.

27

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

28

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (70524 mt'g.)

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

72972

PIN (R13565 mt'g.)

4шт.

31

73092

WASHER - pin retaining

4шт.

32

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS 3/4-16 NF x 5-1/2 (72972 mt'g.)

4шт.

33

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock

4шт.

34

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - straight grease, 1/4 NP

4шт.

35

R15291

X

ARM ASS'Y. - leveling

2шт.

36

72973

BUSHING

2шт.

37

R14259

BUSHING

1шт.

38

R14702

PIN ASS'Y. - (R15291 mt'g.)

2шт.

39

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(R14702 mt'g.) Hex, 5/8"-18 x 1 3/4", G5

2шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40a

195-41

WASHER,5/8"

2шт.

41

R15516

LEVER ASS'Y. - leveling RH

1шт.

42

R15515

LEVER ASS'Y. - leveling LH

1шт.

43

74733

SPACER

2шт.

44

14-1696

HHCS 1-14 NF x 6 (74733 mt'g.) Hex, 1"-14 x 6, G5

2шт.

45

131-370

LOCK NUT

NUT - lock (1-14 NF)

2шт.

46

73046

ROTOR

CYLINDER ASS'Y. - dump (See Figure 308 for breakdown)

2шт.

47

R15288

PIN ASS'Y. - (73046, R15515, R15516, R15291 mt'g.)

2шт.

48

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (R14263 mt'g.)

2шт.

48a

D23740

BUSHING

2шт.

49

92-8

LOCK WASHER,1/2"

2шт.

50

R13198

LEVER ASS'Y. - LH

1шт.

51

R13199

LEVER ASS'Y. - RH

1шт.

52

R13441

ARM ASS'Y. - dump

2шт.

53

R13421

BUSHING

1шт.

54

72973

BUSHING

2шт.

55

R14705

PIN ASS'Y. - (R13198 & R13199 mt'g.)

6шт.

56

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (R14705 mt'g.)

6шт.

56a

D23740

BUSHING

6шт.

57

92-8

LOCK WASHER,1/2"

6шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

59

R13438

BUCKET ASS'Y

1шт.

60

R14220

BUSHING

4шт.

61

72855

BLADE

EDGE - cutting

1шт.

62

46-840

RIVET,Pop, 1/2" x 2 1/2"

- countersunk head (72855 mt'g.)

27шт.

63

R13427

PIN

- pivot (R13438 mt'g.)

4шт.

64

72915

GASKET

- pin retaining

8шт.

65

14-12148

HHCS 3/4-16 NF x 7-1/2 (R13427 mt'g.)

4шт.

66

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4-16 NF)

4шт.

67

74761

CLEANER ASS'Y. - air

1шт.

68

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - air cleaner

1шт.

69

73564

VALVE

SCREEN ASS'Y.

1шт.

70

73567

CUP & BAFFLE ASS'Y.

1шт.

71

73565

COUPLING

CUP ASS'Y.

1шт.

72

73566

ELBOW

ROD ASS'Y.

2шт.

73

74767

ARTICULATION

STACK - air cleaner

1шт.

74

74768

X,2-1/2" ID

CLAMP ASS'Y.

1шт.

R12433

SHIELD - RH. side (Used from ser. #7100959)

1шт.

75

R12432

SHIELD - LH. side (Used from ser. #7100959)

1шт.

76

R12427

CATCH

HOOK (Used from ser. #7100959)

4шт.

77

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(Used from S/N 7100959) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

78

195-25

WASHER,3/8"

- plain (Used from ser. #7100959)

4шт.

79

92-6

LOCK WASHER,3/8"

(Used from S/N 7100959) 3/8"

4шт.

80

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (Used from ser. #7100959)

4шт.

8875

INDICATOR - bucket (Optional)

1шт.

81

74061

STUD (74053 mt'g.)

1шт.

82

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

1шт.

74053

X

ROD ASS'Y - indicator

1шт.

83

74054

ROD - indicator

1шт.

84

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

85

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

86

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

74055

CASTING ASS'Y. - indicator

1шт.

87

74056

SPARE PART

CASTING - indicator

1шт.

88

74057

POINTER ASS'Y. - welded

1шт.

89

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

90

195-33

WASHER,1/2"

- plain

1шт.

91

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (74055 mt'g.)

2шт.

92

92-6

LOCK WASHER,3/8"

2шт.

93

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

2шт.

94

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

95

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.
