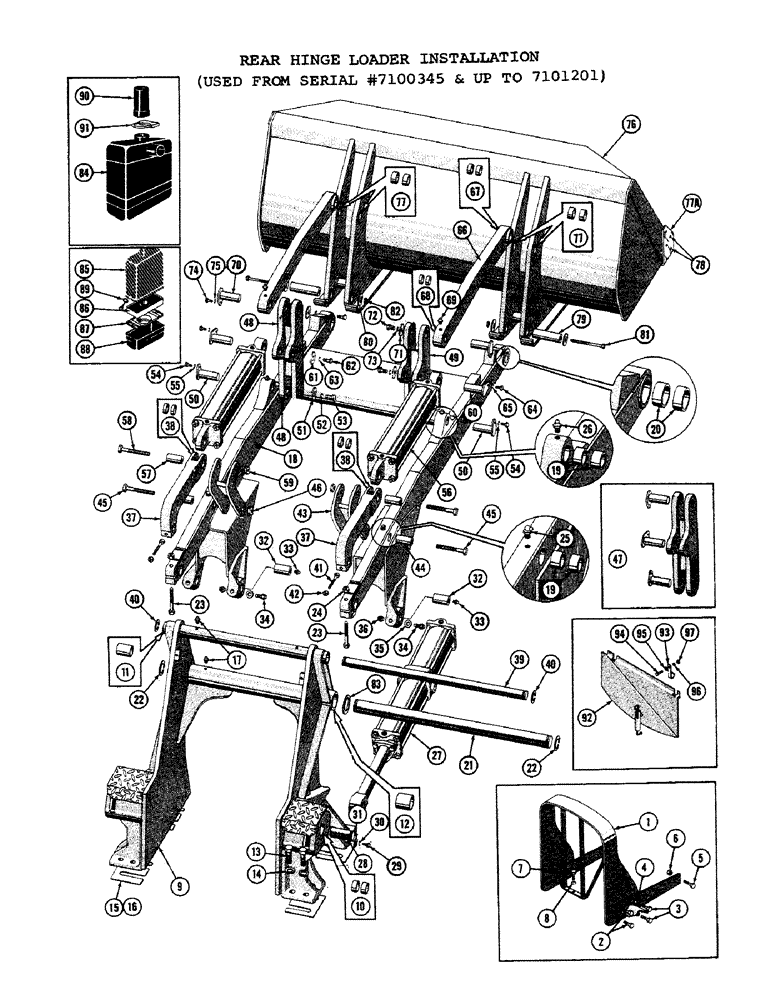

Запчасти Case 1000C (194) - REAR HINGE LOADER INSTALLATION, USED FROM SERIAL NUMBER 7100345 AND UP TO 7101201 (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
R13976
GUARD ASS'Y. - front
1шт.
2
14-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS 3/4-16 NF x 2-3/4 (R13976 mtg.) (45788)
4шт.
3
14-1248
BOLT,Hex, 3/4" - 16 x 3", Gr 5
HHCS 3/4-16 NF x 3 (R13976 mtg.) (45789)
4шт.
4
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4-16 NF) (17605)
4шт.
5
14-1644
BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd
HHCS 1-14 NF x 2-3/4 (R13976 mtg.) (45838)
2шт.
6
131-370
LOCK NUT
NUT - lock (1-14 NF) (48378)
2шт.
7
14-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd
HHCS 1-14 NF x 2-1/2 (R13976 mtg.) (45837)
1шт.
8
92-16
LOCK WASHER,1"
WASHER, LOCK, (48456) 1"
1шт.
9
R13292
FRAME ASS'Y. - upright
1шт.
10
70466
BUSHING
4шт.
11
70555
BUSHING
2шт.
12
70556
BUSHING
2шт.
13
14-1644
BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd
HHCS 1-14 NF x 2-3/4 (R13292 mtg.) (45838)
16шт.
14
92-16
LOCK WASHER,1"
WASHER, LOCK, (48456) 1"
16шт.
15
73169
SHIM (Used from ser. #7100345)
1шт.
16
73170
SHIM
(Used from ser. #7100345)
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NP
4шт.
18
72899
FRAME ASS'Y. - lift (used up to ser. #7100935)
1шт.
R13266
FRAME ASS'Y. - lift (Used from ser. #7100935)
1шт.
19
72936
BUSHING
8шт.
20
70466
BUSHING
4шт.
21
72958
SHAFT - lift arm pivot
1шт.
22
49484
X
RING - snap
2шт.
24
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4-16 NF) (17605)
2шт.
25
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg
2шт.
26
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NP (49200)
2шт.
27
72891
CYLINDER ASS'Y. - hydraulic (See Figure 304 for breakdown)
2шт.
28
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
PIN - (72891 mtg.)
2шт.
29
14-1020
BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5
Hex, 5/8"-18 x 1 1/4 (70524 mtg.) (45757)
2шт.
31
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
32
72972
PIN - cylinder bracket (72891 mtg.)
4шт.
33
219-23
LUBE NIPPLE,1/4" - 18 NPTF
FITTING - straight grease, 1/4 NP (49230)
4шт.
35
73092
WASHER - special
4шт.
36
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (17605)
4шт.
37
73096
ARM ASS'Y. - leveling
2шт.
38
72956
BUSHING
2шт.
39
72957
SHAFT - leveling arm pivot
1шт.
40
49483
X
RING - snap
2шт.
41
14-1272
BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5
HHCS 3/4-16 NF x 4-1/2 (73096 mtg.) (45794)
2шт.
42
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4-16 NF) (17605)
2шт.
43
R13197
LEVER ASS'Y. - rear
2шт.
44
74733
SPACER
2шт.
45
14-1696
HHCS 1-14 NF x 6 (R13197 mtg.) (45847) Hex, 1"-14 x 6, G5
2шт.
46
131-370
LOCK NUT
NUT - lock (1-14 NF) (48378)
2шт.
47
R2731
KIT - lever & pin, L.H. (Used up to ser. #7100935)
1шт.
R2737
KIT - lever & pin, R.H. (Used up to ser. #7100935)
1шт.
48
R13198
LEVER - L.H. (Used from ser. #7100935)
1шт.
49
R13199
LEVER - R.H. (Used from ser. #7100935)
1шт.
50
R13200
PIN ASS'Y. - (R13198 & R13199 mtg.)
2шт.
51
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
52
14-1016
BOLT,Hex, 5/8" - 18 x 1"
HHCS 5/8-18 NF x 1 (R13200 mtg.) (45756)
2шт.
54
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS 1/2-20 NF x 1 (R13200 mtg.) (45706)
2шт.
55
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
56
73046
ROTOR
CYLINDER ASS'Y - hydraulic (See Figure 308 for breakdown)
2шт.
57
74733
SPACER
2шт.
58
14-1696
HHCS 1-14 NF x 6 (73046 & 73096 mtg.) Hex, 1"-14 x 6, G5
2шт.
59
131-370
LOCK NUT
NUT - lock (1-14 NF)
2шт.
60
R13200
PIN ASS'Y. - (73046 mt'g.)
2шт.
61
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
62
14-1016
BOLT,Hex, 5/8" - 18 x 1"
HHCS 5/8-18 NF x 1 (R13200 mt'g.)
2шт.
64
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS 1/2-20 NF x 1 (R13200 mtg.)
2шт.
65
92-8
LOCK WASHER,1/2"
2шт.
66
72942
ARM ASS'Y. - dump (Used up to serial #7100428)
2шт.
R11209
ARM ASS'Y. - dump (Used from serial #7100428)
2шт.
67
70466
BUSHING
2шт.
68
72973
BUSHING
2шт.
69
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NP
2шт.
70
R13200
PIN ASS'Y. - (72942 or R11209 mt'g.)
2шт.
71
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
- special
2шт.
72
14-1016
BOLT,Hex, 5/8" - 18 x 1"
HHCS 5/8-18 NF x 1 (R13200 mt'g.)
2шт.
74
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS 1/2-20 NF x 1 (R13200 mt'g.)
2шт.
75
92-8
LOCK WASHER,1/2"
2шт.
76
72862
BUCKET ASS'Y. - (Used up to serial #7100345)
1шт.
39708
X
BUCKET ASS'Y. - (Used from serial #7100345)
1шт.
77
70466
BUSHING
8шт.
77a
72855
BLADE
EDGE - cutting
1шт.
78
46-840
RIVET,Pop, 1/2" x 2 1/2"
- countersunk head (72855 mt'g.)
27шт.
79
72912
PIN - (72862 mt'g.) (Used up to serial #7100428)
4шт.
74731
PIN - (39708 mt'g.) (Used from serial #7100428)
4шт.
80
51200331
WASHER
- special
8шт.
81
14-12120
HHCS 3/4-16 NF x 7-1/2 (72912 or 74731 mt'g.)
4шт.
82
230-46112
LOCK NUT,3/4"-16, GA
NUT - hex (3/4-16 NF)
4шт.
83
74298
WASHER
SPACER - (Used from serial #7100683)
1шт.
84
74761
CLEANER ASS'Y. - air
1шт.
85
NSS
NOT SOLD SEPARAT
BODY ASS'Y. - air cleaner
1шт.
86
73564
VALVE
SCREEN ASS'Y.
1шт.
87
73567
CUP & BAFFLE ASS'Y.
1шт.
88
73565
COUPLING
CUP ASS'Y.
1шт.
89
73566
ELBOW
ROD ASS'Y.
2шт.
90
74767
ARTICULATION
STACK - air cleaner
1шт.
91
74768
X,2-1/2" ID
CLAMP ASS'Y.
1шт.
92
R12432
SHIELD - LH side (Used from serial #7100959)
1шт.
93
R12433
SHIELD - RH side (Used from serial #7100959)
1шт.
94
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
(Used from S/N 7100959) Hex, 3/8"-24 x 3/4", G5, Full Thd
4шт.
95
195-25
WASHER,3/8"
- plain (Used from serial #7100959)
4шт.
96
92-6
LOCK WASHER,3/8"
(Used from S/N 7100959) 3/8"
4шт.
97
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (Used from serial #7100959)
4шт.
Выбрано товаров: 103
