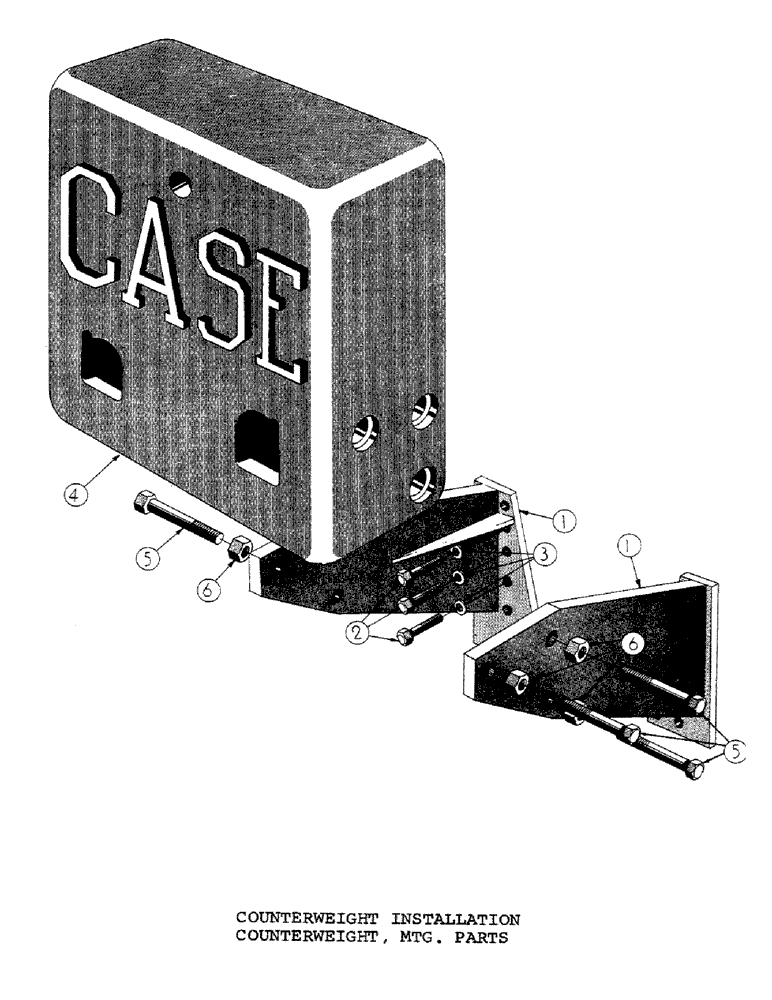

Запчасти Case 1000C (186) - COUNTERWEIGHT INSTALLATION, COUNTERWEIGHT AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

6261

SHAFT

COUNTERWEIGHT INSTALLATION - (Optional equipment)

1шт.

1

70980

BRACKET ASS'Y. - counterweight attaching

1шт.

70981

BRACKET ASS'Y. - counterweight attaching

1шт.

2

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4-16 NF x 2-1/4 (70980-1 mtg.) (45786)

6шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

6шт.

4

70982

COUNTERWEIGHT

1шт.

5

14-1696

HHCS - 1"-14 NF x 6 (70982 mtg.) (45847) Hex, 1"-14 x 6, G5

6шт.

6

131-369

LOCK NUT,7/8"-14, GA

NUT - lock 1"-14 NF

6шт.
