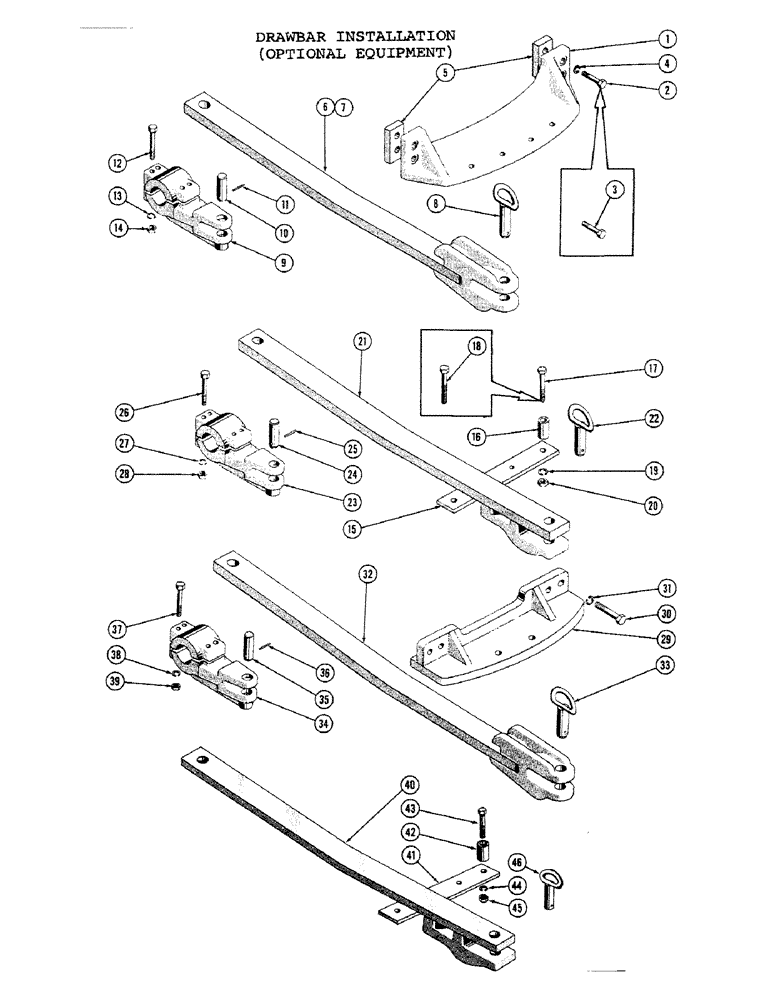

Запчасти Case 1000C (182) - DRAWBAR INSTALLATION, OPTIONAL EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

R2789

DRAWBAR INST. - standard tractor

1шт.

R2580

DRAWBAR INST. - tractor w/counterweight

1шт.

1

74346

GUIDE - drawbar

1шт.

2

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4-16 NF x 2-1/4 (74346 mt'g.) (Used up to serial #7101201)

4шт.

3

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS 3/4-16 NF x 3 (74346 mt'g.) (Used from serial #7101201)

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

R14501

BUSHING

SPACER - (R2789 only)

2шт.

6

70985

DRAWBAR ASS'Y. - (Used up to serial #7101201)

1шт.

7

74833

DRAWBAR ASS'Y. - (Used from serial #7101201)

1шт.

8

70989

PIN ASS'Y. - drawbar

1шт.

9

70983

BRACKET - drawbar attaching

1шт.

10

70992

PIN

- drawbar bracket (70983 mt'g.)

1шт.

11

49869

PIN

- lock (70992 mt'g.)

1шт.

12

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

HHCS - 5/8-18 x 4-1/2 (70983 mt'g.)

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18)

4шт.

R2503

DRAWBAR INST. - tractor w/ripper

1шт.

15

74602

GUIDE

- drawbar

1шт.

16

74603

SPACER - drawbar

2шт.

17

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4-16 NF x 2-1/4 (Used up to ser. #7101201)

2шт.

18

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4-16 NF x 4-1/2 (74602 mt'g.) (Used from serial #7101201)

2шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

20

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

2шт.

21

74608

DRAWBAR ASS'Y.

1шт.

22

74607

PIN ASSY.

PIN ASS'Y. - drawbar

1шт.

23

70983

BRACKET - drawbar attaching

1шт.

24

70992

PIN

- drawbar bracket (70983 mt'g.)

1шт.

25

49869

PIN

- lock (70992 mt'g.)

1шт.

26

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

HHCS - 5/8-18 NF x 4-1/2 (70983 mt'g.)

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF)

4шт.

8916

SCREW,FLAT, 1/4 x 3/4"

DRAWBAR INST. - tractor w/winch

1шт.

29

74295

GUIDE - drawbar

1шт.

30

14-1436

BOLT (SPREADER)

HHCS - 7/8-14 NF x 2-1/4 (74295 mt'g.)

4шт.

31

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

32

74297

DRAWBAR ASS'Y.

1шт.

33

70989

PIN ASS'Y. - drawbar

1шт.

34

70983

BRACKET - drawbar attaching

1шт.

35

70992

PIN

- drawbar bracket (70983 mt'g.)

1шт.

36

49869

PIN

- lock (70992 mt'g.)

1шт.

37

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

HHCS - 5/8-18 NF x 4-1/2 (70983 mt'g.)

4шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

39

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF)

4шт.

R2790

DRAWBAR FIELD INST. - tractor w/ripper

1шт.

40

74608

DRAWBAR ASS'Y. - ripper

1шт.

41

74602

GUIDE

- drawbar

1шт.

42

74603

SPACER - drawbar

2шт.

43

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS 3/4-16 NF x 4-1/2 (74602 mt'g.)

2шт.

44

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

45

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

2шт.

46

74607

PIN ASSY.

PIN ASS'Y. - drawbar

1шт.
