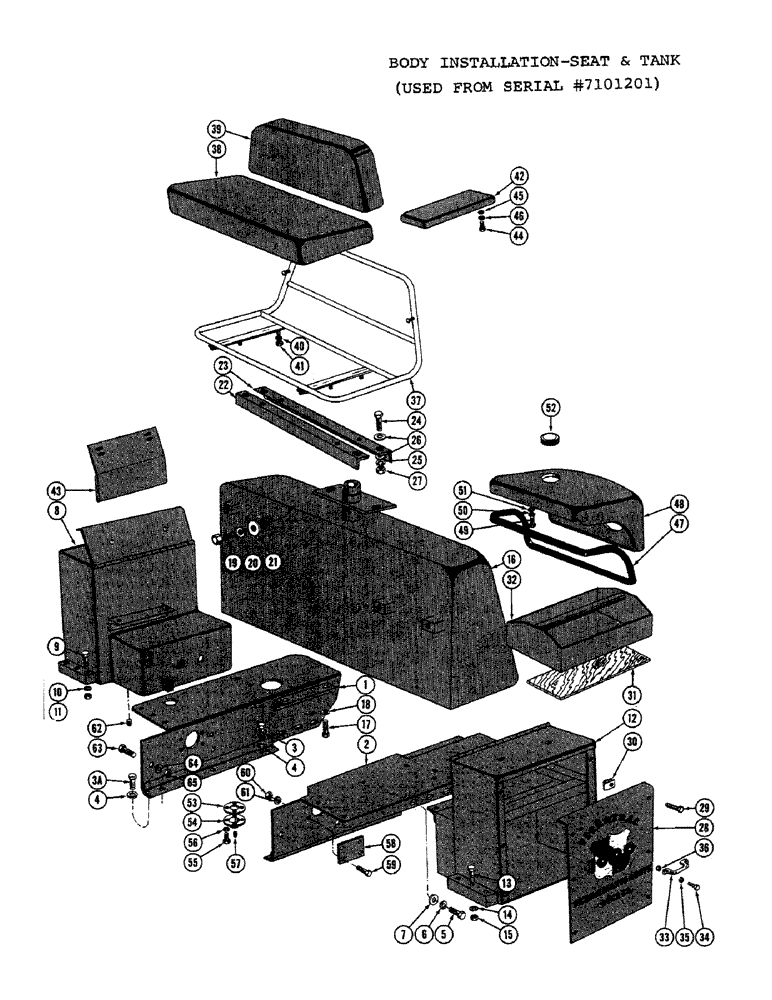

Запчасти Case 1000C (176) - BODY INSTALLATION, SEAT AND TANK, USED FROM SERIAL NUMBER 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

R14093

FENDER ASS'Y. - RH

1шт.

2

R14090

FENDER ASS'Y. - LH

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R14090 & R14093 mt'g.) (45708)

4шт.

3a

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2 (R14090 & R14093 mt'g.)

2шт.

4

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R14090 & R14093 mt'g.) (45758) Hex, 5/8"-18 x 1 1/2", G5

6шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

6шт.

7

195-41

WASHER,5/8"

(48430) 5/8"

6шт.

8

R13819

TANK ASS'Y. - hydraulic

1шт.

9

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS 1/2-20 NF x 2-1/4 (R13819 mt'g.) (45711)

3шт.

10

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

11

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

12

R13920

BOX ASS'Y. - battery

1шт.

13

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS 1/2-20 NF x 2-1/4 (R13920 mt'g.) (45711)

3шт.

14

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

15

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

16

71686

TANK ASS'Y. - fuel

1шт.

17

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71686 mt'g.) (45708)

4шт.

18

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71686 mt'g.) (45708)

4шт.

20

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

21

195-33

WASHER,1/2"

- plain (48428)

4шт.

22

R14038

ANGLE - seat mt'g., front

1шт.

23

R14039

ANGLE - seat mt'g., rear

1шт.

24

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R14038 & R14039 mt'g.) (45708)

4шт.

25

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

26

195-33

WASHER,1/2"

- plain (48428)

8шт.

27

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

28

71683

PLATE - outer side

1шт.

29

R11360

SCREW - self tapping (71683 mt'g.)

6шт.

30

R11355

NUT - special

6шт.

31

71941

COVER

BOARD - bottom

1шт.

32

71940

SHROUD

BOX ASS'Y. - tool

1шт.

33

70248

LEVER

HANDLE - grab

2шт.

34

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (70248 mt'g.) (45631)

4шт.

35

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

36

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (481010)

4шт.

37

R12893

FRAME ASS'Y. - seat

1шт.

38

70176

CUSHION - seat

1шт.

39

72359

CUSHION - seat back

1шт.

40

92-5

LOCK WASHER,5/16"

(R12893 mt'g.) (48445) 5/16"

4шт.

41

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

42

71792

CUSHION - arm rest

2шт.

43

74097

PAD

- side

2шт.

44

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(71792 mt'g.) (45006) Hex, 1/4"-20 x 1", G5

4шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

46

195-18

WASHER,1/4"

- plain (48424)

4шт.

47

70214

CHANNEL

- rubber

1шт.

48

70217

HOUSING - rear light

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(70217 mt'g.) (45056) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

50

92-6

LOCK WASHER,3/8"

(48416) 3/8"

2шт.

51

195-25

WASHER,3/8"

- plain (48426)

2шт.

52

70901

X

CAP - fuel tank

1шт.

53

35621

GASKET

- drain cover

1шт.

54

70244

COVER - drain

1шт.

55

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(70244 mt'g.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

56

92-6

LOCK WASHER,3/8"

4шт.

57

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd., 1/8 NP (41973)

1шт.

58

R13985

HHCS 5/16-24 NF x 1 (R13985 mt'g.) (45631)

4шт.

60

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

61

25-115

NUT,5/16"-24, G5

- reg. SF hex (48101)

4шт.

62

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, ext. sq. hd., 3/4 NP (41824)

1шт.

63

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R14090 & R14093 mt'g.) (48448)

2шт.

64

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

65

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.
