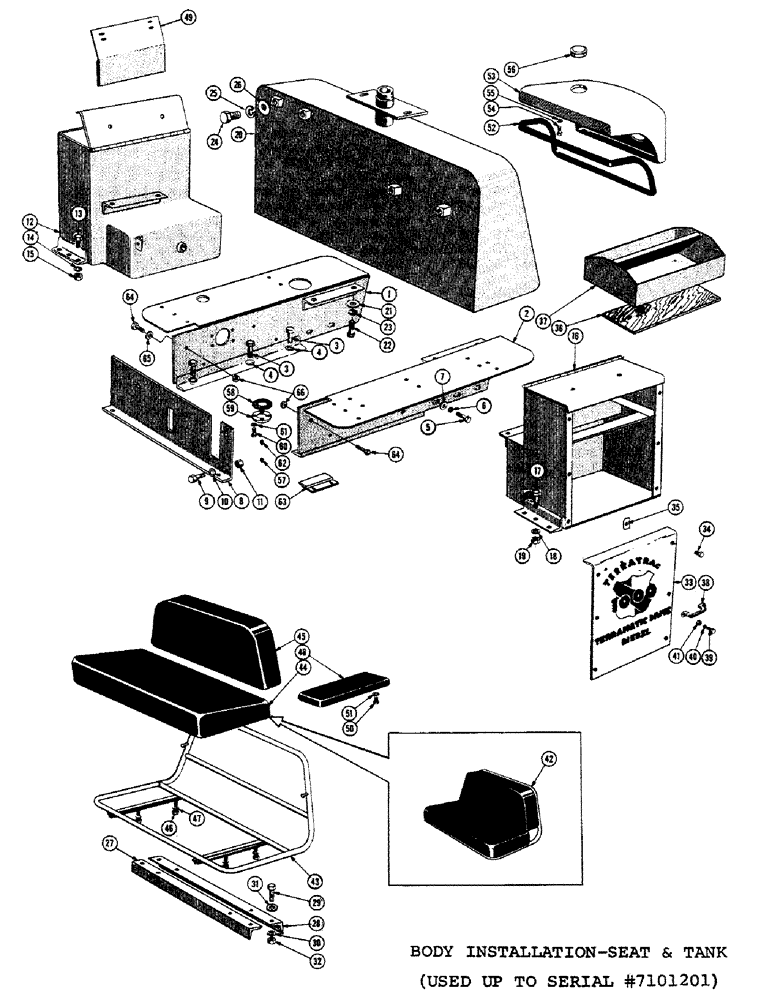

Запчасти Case 1000C (174) - BODY INSTALLATION, SEAT AND TANK, USED UP TO SERIAL NUMBER 7101201 (05) - UPPERSTRUCTURE CHASSIS

1

71854

FENDER ASS'Y. - RH

1шт.

2

71853

FENDER ASS'Y. - LH

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71853 & 71854 mt'g.) (45708)

6шт.

4

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71853 & 71854 mt'g.) (45708)

6шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

7

95-8

WASHER,1/2"

- plain (48408) 1/2"

6шт.

8

71902

PLATE ASS'Y. - heel (Used up to serial #7100386)

1шт.

9

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (71902 mt'g.) (Used up to serial #7100386)

3шт.

10

92-6

LOCK WASHER,3/8"

(Used up to serial #7100386) (48446) 3/8"

3шт.

11

25-116

NUT,Hex, 3/8"-24, G5

-reg. SF hex (3/4-24 NF) (Used up to serial #7100386)

3шт.

12

71882

TANK ASS'Y. - hydraulic

1шт.

13

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71882 mt'g.) (45708)

3шт.

14

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

15

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

16

71688

BOX ASS'Y. - battery

1шт.

17

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (71688 mt'g.) (45709)

3шт.

18

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

19

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

20

71686

TANK ASS'Y. - fuel

1шт.

21

95-8

WASHER,1/2"

- plain (48408) 1/2"

1шт.

22

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71686 mt'g.) (45708)

4шт.

23

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

24

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (71686 mt'g.) (45708)

8шт.

25

92-8

LOCK WASHER,1/2"

(48448) 1/2"

8шт.

26

95-8

WASHER,1/2"

- plain (48408) 1/2"

8шт.

27

71914

ANGLE - seat mt'g., front

1шт.

28

72095

ANGLE - seat mt'g., rear

1шт.

29

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (71914 & 72095 mt'g.) (45707)

4шт.

30

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

31

95-8

WASHER,1/2"

- plain (48408) 1/2"

4шт.

32

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

33

71683

PLATE - outer side

1шт.

34

R11360

SCREW - self tapping (71683 mt'g.)

6шт.

35

R11355

NUT - special

6шт.

36

71941

COVER

BOARD - bottom

1шт.

37

71940

SHROUD

BOX ASS'Y. - tool

1шт.

38

70248

LEVER

HANDLE - grab

2шт.

39

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (70248 mt'g.) (45631)

4шт.

40

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

41

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

42

70221

SEAT ASS'Y.

1шт.

43

72351

FRAME ASS'Y. - seat

1шт.

44

70176

CUSHION - seat

1шт.

45

72359

CUSHION - seat back

1шт.

46

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

47

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

48

71792

CUSHION - arm rest

2шт.

49

74097

PAD

- side

2шт.

50

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(71792 mt'g.) (45004) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

51

195-17

WASHER,1/4"

- plain

4шт.

52

70214

CHANNEL

- rubber

1шт.

53

70217

HOUSING - rear light

1шт.

54

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(70217 mt'g.) (48446) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

55

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

56

70901

X

CAP - fuel tank (41824)

1шт.

57

221-15

PLUG,Sq Hd, 3/4"-14

- ext. sq. hd., 3/4 NP (41824)

1шт.

58

35621

GASKET

- drain cover

1шт.

59

70244

COVER - tank drain

1шт.

60

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70244 mt'g.) (45656)

4шт.

61

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

62

221-11

PLUG,Sq Hd, 1/8"-27

- external sq. hd. pipe, 1/8 NP (41973)

1шт.

63

46935

X

PLATE ASS'Y. - filler

2шт.

64

46935

X

HHCS 1/2-20 NF x 1-1/4

2шт.

65

92-6

LOCK WASHER,3/8"

(48446) 3/8"

1шт.

66

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam

2шт.
