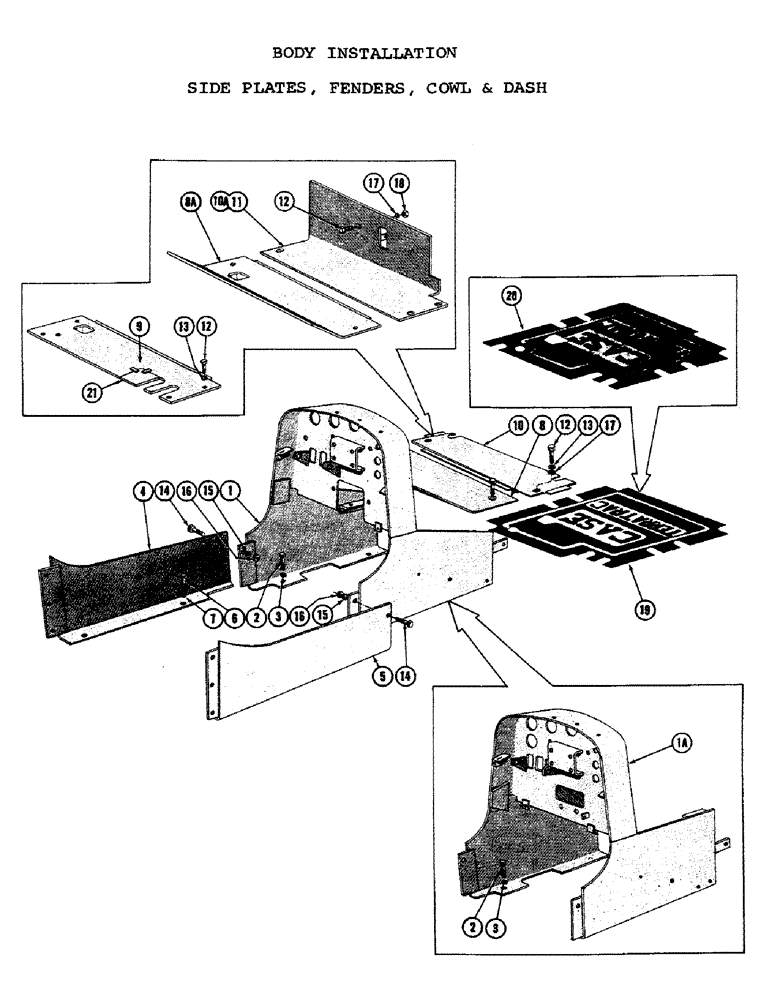

Запчасти Case 1000C (172) - BODY INSTALLATION, SIDE PLATES, FENDERS, COWL AND DASH (05) - UPPERSTRUCTURE CHASSIS

1

70808

COWL ASS'Y. (Standard) (Used up to serial #7101201)

1шт.

1a

R14766

COWL ASS'Y. (Used from serial #7101201)

1шт.

2

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (70808 & R14766 mounting)

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

70936

PANEL ASS'Y. - RH. engine side

1шт.

5

70937

PANEL ASS'Y. - LH. engine side

1шт.

6

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (70936 & 70937 mt'g.)

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

72568

PLATE ASS'Y. - floor front (Used up to serial #7100386)

1шт.

8a

74301

PLATE ASS'Y. - floor front (Used from serial #7100386 and up to serial #7101201)

1шт.

9

R17396

PLATE ASS'Y. - floor front (Used from serial #7101201)

1шт.

10

72753

CYLINDER HEAD

PLATE ASS'Y. - floor rear (Used up to serial #7100386)

1шт.

10a

74299

PLATE ASS'Y. - floor rear (Used from serial #7100386 and up to serial #7101201)

1шт.

11

R13882

PLATE ASS'Y. - floor rear (Used from serial #7101201)

1шт.

R14492

PLATE ASS'Y. - floor rear (For winch only)

1шт.

12

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1 (Floor plate mt'g.)

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (Mt'g. side plates to cowl)

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Mt'g. side plates to cowl)

1шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

2шт.

17

195-25

WASHER,3/8"

- plain (Floor plate mt'g.)

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

19

71670

MAT - floor (Used up to serial #7101201)

1шт.

20

R14083

MAT - floor (Used from serial #7101201)

1шт.

21

R16933

PLATE ASS'Y. - cover (Used from 10-25-59)

1шт.
