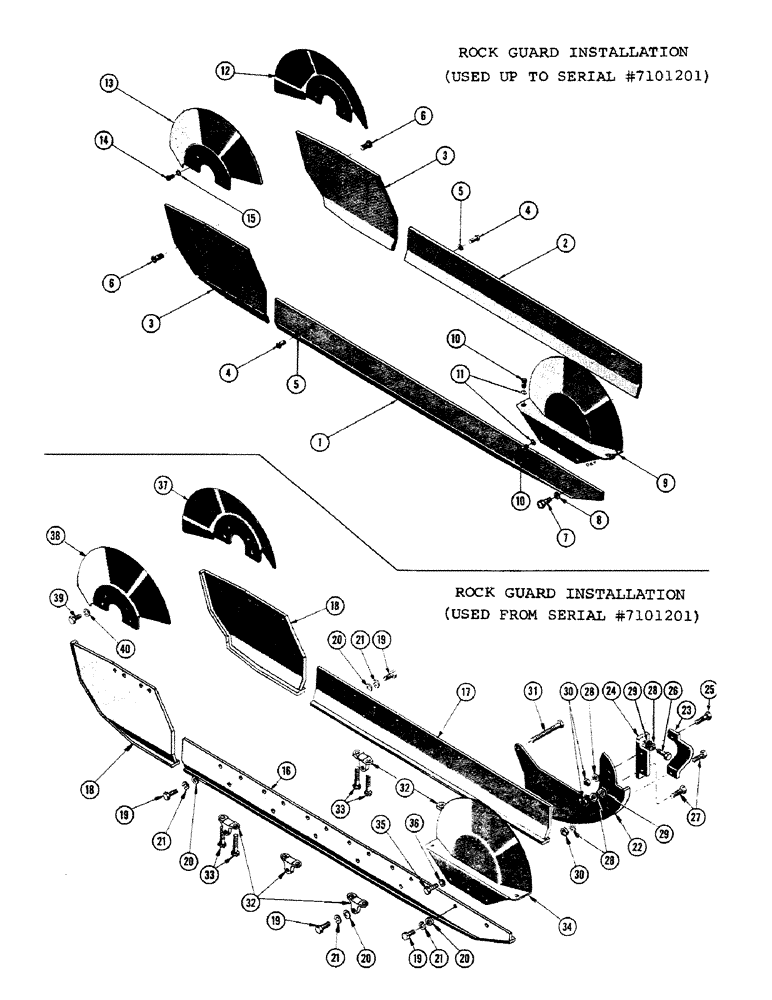

Запчасти Case 1000C (170) - ROCK GUARD INSTALLATION, DOZER TRACTOR, USED UP TO SERIAL NUMBER 7101201 (04) - UNDERCARRIAGE

6271

CLIP

GUARD INSTALLATION - rock (Optional equipment)

1шт.

1

70649

GUARD - R.H. outer rock

1шт.

70650

GUARD - L.H. outer rock

1шт.

2

70651

GUARD - R.H. inner rock

1шт.

70652

GUARD - L.H. inner rock

1шт.

3

70647

GUARD - R.H. rock

2шт.

70648

GUARD - L.H. rock

2шт.

4

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70649, 50, 51 & 52 mt'g.) (45707)

40шт.

5

92-8

LOCK WASHER,1/2"

(48448) 1/2"

40шт.

6

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4-16 NF x 2-1/4 (70647 & 70648 mt'g.) (45786)

16шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (70649 & 70650 mt'g.) (45708)

4шт.

8

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

9

70641

GUARD ASS'Y. - sprocket

2шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2-20 NF x 1-1/2 (70641 mt'g.) (45708)

10шт.

11

92-8

LOCK WASHER,1/2"

(48448) 1/2"

10шт.

6333

HYDRAULIC CYLINDER

GUARD INSTALLATION - idler (Optional equipment)

1шт.

12

70642

GUARD - R.H. front idler

2шт.

13

70643

KNOB

GUARD - L.H. front idler

2шт.

14

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (70642 & 70643 mt'g.) (45706)

16шт.

15

92-8

LOCK WASHER,1/2"

16шт.

R2670

GUARD INSTALLATION - rock (Optional equipment)

1шт.

16

74991

GUARD - R.H. outer rock

1шт.

74992

GUARD - L.H. outer rock

1шт.

17

74983

GUARD - R.H. inner rock

1шт.

74984

SPROCKET

GUARD - L.H. inner rock

1шт.

18

74975

FLEXIBLE SHEATH

GUARD - R.H. rock

2шт.

74976

ROPE

GUARD - L.H. rock

2шт.

19

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (74991, 92, 83 & 84 mt'g.) (45707)

64шт.

20

95-8

WASHER,1/2"

- plain (48408) 1/2"

64шт.

20

92-8

LOCK WASHER,1/2"

(48448) 1/2"

64шт.

22

R11227

GUARD - RH inner sprocket (Used, Serial Range: up-1-15-59)

1шт.

R14444

GUARD - R.H. inner sprocket (Used from 1-15-59)

1шт.

R11226

GUARD - LH inner sprocket (Used, Serial Range: up-1-15-59)

1шт.

R14443

GUARD - LH inner sprocket (Used from 1-15-59)

1шт.

23

R13105

DEFLECTOR - RH inner rock guard

1шт.

R13104

DEFLECTOR - LH inner rock guard

1шт.

24

R12325

BRACKET

- rock guard mt'g.

2шт.

25

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

(R11226 & 7, R13104 & 5 and R12325 mt'g.) (45761) Hex, 5/8"-18 x 2 1/4", G5

2шт.

26

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(R13104 & 5 mt'g.) (45158) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

27

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(R13104 & 5 mt'g.) (45759) Hex, 5/8"-18 x 1 3/4", G5

4шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

10шт.

29

195-41

WASHER,5/8"

(48430) 5/8"

6шт.

30

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

6шт.

31

R10896

BOLT - main frame (Used up to 1-15-59)

2шт.

R14440

BOLT - main frame (Used from 1-15-59)

2шт.

32

R13950

BLOCK - rock guard mt'g.

20шт.

33

R13954

BOLT - place (Self locking)

40шт.

34

70641

GUARD ASS'Y. - sprocket

2шт.

35

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (70641 mt'g.) (45708)

10шт.

36

92-8

LOCK WASHER,1/2"

(48448) 1/2"

10шт.

6333

HYDRAULIC CYLINDER

GUARD INSTALLATION - idler (Optional equipment)

1шт.

37

70642

GUARD - RH front idler

2шт.

38

70643

KNOB

GUARD - LH front idler

2шт.

39

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (70642 & 70643 mt'g.) (45706)

16шт.

40

92-8

LOCK WASHER,1/2"

(48448) 1/2"

16шт.
