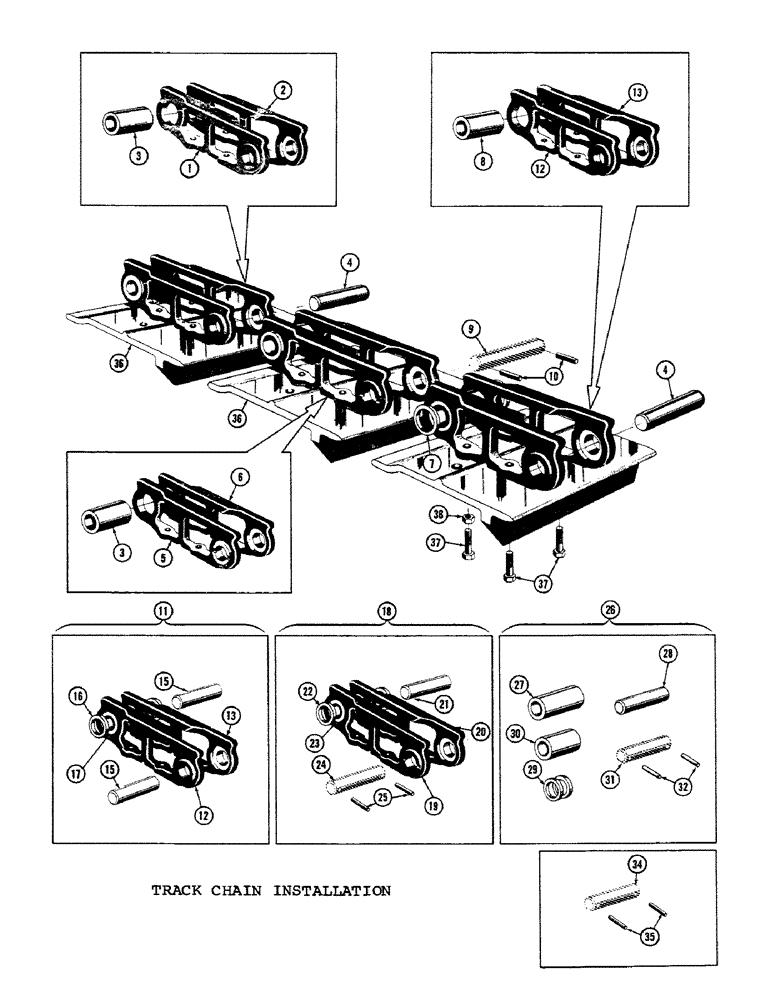

Запчасти Case 1000C (162) - TRACK CHAIN INSTALLATION, DOZER TRACTOR, USED FROM 9-19-59 (04) - UNDERCARRIAGE

R16021

CHAIN ASS'Y. - 19 units

2шт.

1

R14900

LINK

- track, RH. (Order kit #R3050, ref. #11)

18шт.

2

R14899

LINK

- track, LH. (Order kit #R3050, ref. #11)

18шт.

3

R14892

BUSHING

- long (Order kit #R3048, ref. #26)

18шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track (See kit #R3048, ref. #26) (See D32164 below)

18шт.

5

R14895

LINK - track master, RH. (Order #R3051, ref. #18)

1шт.

6

R14894

LINK - track master, LH. (Order #R3051, ref. #18)

1шт.

7

R14898

SPACER

BUSHING - track space (See kit #R3048, ref. #26)

2шт.

8

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master (Short) (See kit #R3048, ref. #26)

1шт.

R3049

KIT

- master pin

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

10

R15710

LINCH PIN

PIN - lock

2шт.

R16020

CHAIN ASS'Y. - 18 units

2шт.

1

R14900

LINK

- track, RH. (Order kit #R3050, ref. #11)

17шт.

2

R14899

LINK

- track, LH. (Order kit #R3050, ref. #11)

17шт.

3

R14892

BUSHING

- long (Order kit #R3048, ref. #26)

17шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track (See kit #R3048, ref. #26)

17шт.

5

R14895

LINK - track master, RH. (Order kit #R3051, ref. #18)

1шт.

6

R14894

LINK - track master, LH. (Order kit #R3051, ref. #18)

1шт.

7

R14898

SPACER

BUSHING - track spacer (See kit #R3048, ref. #26)

2шт.

8

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- track master (Short) (See kit #R3048, ref. #26)

1шт.

R3049

KIT

- master pin

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

10

R15710

LINCH PIN

PIN - lock

2шт.

11

R3050

REPAIR KIT

KIT - track unit repair

70шт.

12

R14900

LINK

- track, RH.

1шт.

13

R14899

LINK

- track, LH.

1шт.

14

RESERVED

1шт.

15

R14893

PIN,34.9mm OD x 176.22mm L

- track

2шт.

16

R14898

SPACER

BUSHING - track spacer

2шт.

17

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master (Short)

4шт.

18

R3051

LINK

KIT - track master unit repair

4шт.

18

R14895

LINK - track master, RH

1шт.

20

R14894

LINK - track master, LH

1шт.

21

R14893

PIN,34.9mm OD x 176.22mm L

- track

1шт.

22

R14898

SPACER

BUSHING - track spacer

2шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master (Short)

1шт.

R3049

KIT

- master pin

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

25

R15710

LINCH PIN

PIN - lock

2шт.

26

D33151

KIT

- pin & bushing (Replaces R3048)

1шт.

27

R14892

BUSHING

- long

74шт.

28

R14893

PIN,34.9mm OD x 176.22mm L

- track

74шт.

29

R14898

SPACER

BUSHING - track spacer

8шт.

30

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master (Short)

4шт.

31

D43541

PIN

KIT - master pin (Replaces R3049)

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

32

R15710

LINCH PIN

PIN - lock

2шт.

33

D43541

PIN

KIT - master pin (Replaces R3049)

4шт.

34

NSS

NOT SOLD SEPARAT

PIN - master

1шт.

35

R15710

LINCH PIN

PIN - lock

2шт.

36

R17329

TRACK SHOE

GROUSER - track, 16"

74шт.

37

R15309

BOLT

- special (R17329 mt'g.)

296шт.

38

R17415

LOCK NUT

- lock (9/16-18 NF) (Special)

296шт.

D32164

PIN

- service track (.004 oversize)

1шт.
