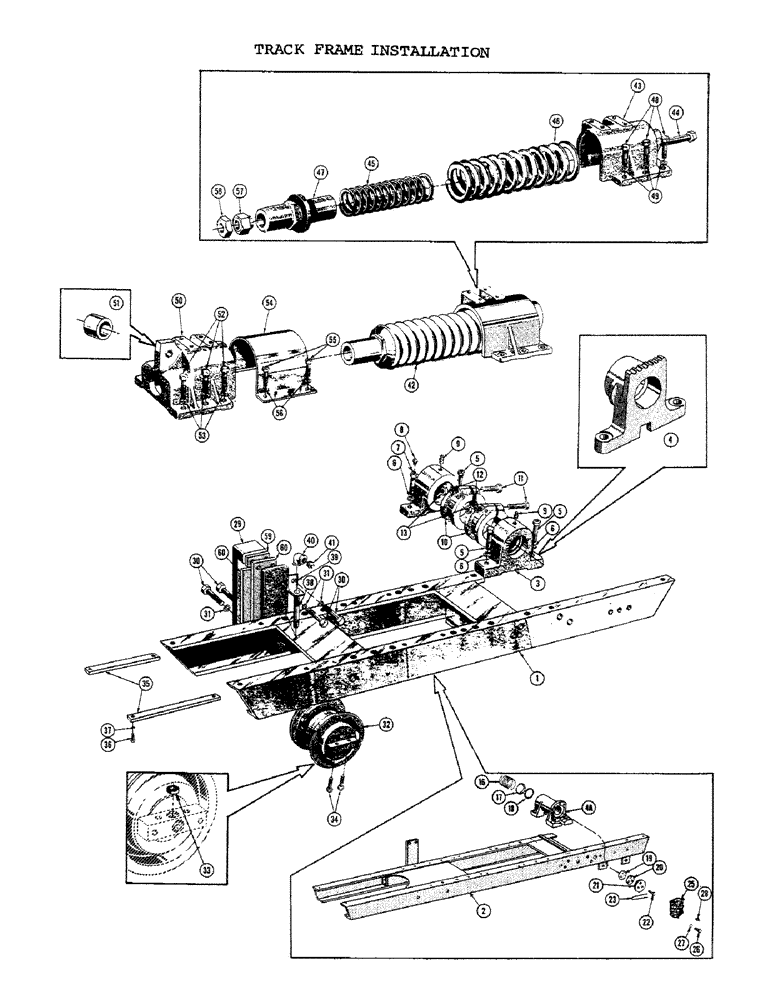

Запчасти Case 1000C (148) - TRACK FRAME INSTALLATION, FOR DOZER TRACTORS (04) - UNDERCARRIAGE

R13549

BOLT - place, (Self locking) (Used from serial #7101201)

40шт.

35

70094

PLATE

- wear

4шт.

36

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70094 mt'g.) (45707)

8шт.

37

92-8

LOCK WASHER,1/2"

(48448) 1/2"

8шт.

38

221-177

NIPPLE - pipe, 3/8 NP

2шт.

39

71179

ANGLE

2шт.

40

221-381

ELBOW - 90 degree reducing, 3/8 NP to 1/4 NP

2шт.

41

221-12

PLUG,Sq Hd, 1/4"-18

- ext. sq. hd. pipe, 1/4 NP

2шт.

42

70932

SPRING ASS'Y. - RH recoil (Used up to serial #7101201)

1шт.

R13417

SPRING ASS'Y. - RH recoil (Used from serial #7101201)

1шт.

70933

SPRING ASS'Y. - LH recoil (Used up to serial #7101201)

1шт.

R13417

SPRING ASS'Y. - LH recoil (Used from serial #7101201)

1шт.

43

70053

HOUSING - LH rear, recoil (Used up to serial #7101201)

1шт.

70052

HOUSING - RH rear, recoil (Used up to serial #7101201)

1шт.

R13056

HOUSING - RH & LH rear, recoil (Used from serial #7101201)

1шт.

44

70034

BOLT - track adjusting

1шт.

45

31868

SPRING - inner recoil

1шт.

46

70917

SPRING - outer recoil

1шт.

47

70040

KEY

SLEEVE - recoil spring

1шт.

48

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(70932, 70933 & R13417 mt'g.) (45759) Hex, 5/8"-18 x 1 3/4", G5

12шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

12шт.

50

71010

FLANGE

HOUSING ASS'Y. - RH, front recoil (Used up to serial #7101201)

1шт.

71011

HOUSING ASS'Y. - LH, front recoil (Used up to serial #7101201)

1шт.

R13801

HOUSING ASS'Y. - LH & RH, front recoil (Used from serial #7101201)

2шт.

51

70028

BUSHING

(Used up to serial #7100521)

1шт.

R10930

BUSHING (Used from serial #7100521 and up to ser. #7101201)

1шт.

R13096

BUSHING

(Used from serial #7101201)

1шт.

52

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(71010, 71011 or R13801 mt'g.) Hex, 5/8"-18 x 1 3/4", G5

12шт.

53

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

12шт.

54

70092

COVER - recoil spring

2шт.

55

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (70092 mt'g.) (48448)

8шт.

57

NLS

NO LONGER SERVICED

- adjusting

2шт.

58

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex (1-1/2-6 NC) (47902)

2шт.

59

72137

SPACER - track mt'g. (Used up to serial #7101201)

4шт.

60

72138

GEAR

PLATE - wear (Used up to serial #7101201)

4шт.
