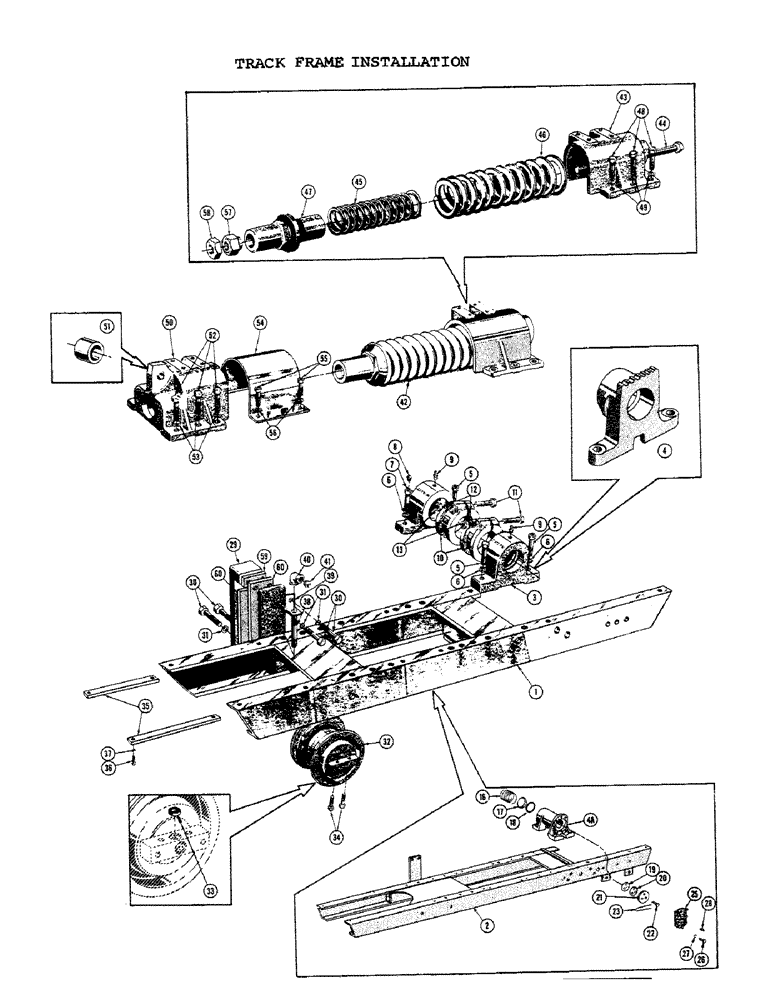

Запчасти Case 1000C (146) - TRACK FRAME INSTALLATION, FOR DOZER TRACTORS (04) - UNDERCARRIAGE

1

NSS

NOT SOLD SEPARAT

FRAME ASS'Y. - R.H. track (Used up to serial #7100524) (Order 74177 & kit #R2389 for service)

1шт.

74177

FRAME ASS'Y. - R.H. track (Used from serial #7100524 and up to serial #7101201)

1шт.

NSS

NOT SOLD SEPARAT

FRAME ASS'Y. - L.H. track (Used up to serial #7100524) (Order 74176 & kit #R2389 for service)

1шт.

74176

FRAME ASS'Y. - L.H. track (Used from serial #7100524 and up to serial #7101201)

1шт.

2

R13183

FRAME ASS'Y. - R.H. track (Used from serial #7101201)

1шт.

R13182

FRAME ASS'Y. - L.H. track (Used from serial #7101201)

1шт.

3

70039

BLOCK - pivot (Used up to serial #7100390)

4шт.

4

74908

BLOCK - pivot (Used from serial #7100390 and up to serial #7101201)

4шт.

4a

R14100

BLOCK - pivot (Used from serial #7101201)

2шт.

5

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (70039 mt'g.) (Used up to serial #7100390)

6шт.

46723

SUPPORT

HHCS 1-14 x 2 (74908 mt'g.) (Used from serial #7100390)

6шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Used up to S/N 7100390) 3/4"

8шт.

92-16

LOCK WASHER,1"

WASHER, LOCK, (Used from S/N 7100390) 1"

8шт.

7

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (70039 mt'g.) (Used up to serial #7100390)

2шт.

72982

GEAR

BOLT - breather (73173 or 74908 mt'g.) (Used from serial #7100390 and up to serial #7101201)

2шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, ext. sq. hd., 1/4 NP (Used up to serial #7100854)

2шт.

R11152

FITTING

- relief (Used from serial #7100854)

2шт.

9

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - straight grease, 1/4 NP (Used up to serial #7100390)

4шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8 NP (Used from serial #7100390 and up to serial #7101201)

4шт.

10

70112

CLAMP - track mt'g. (Used up to serial #7101201)

4шт.

11

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

HHCS 5/8-18 NF x 3-1/2 (70112 mt'g.) (Used up to serial #7101201)

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Used up to S/N 7010201) 5/8"

4шт.

13

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (Used up to serial #7101201)

4шт.

14

RESERVED

1шт.

15

RESERVED

1шт.

16

R14566

SPRING - pivot shaft (Used from serial #7101201)

2шт.

17

R13783

RETAINER - seal (Used from serial #7101201)

2шт.

18

R13774

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

-337, 70 Duro, 2.975" ID x .210" Thk (Used from S/N 7101201)

2шт.

19

R13087

SHIM,.031" Thk

Pivot shaft (Used from S/N 7101201) .031" Thk

2шт.

20

R13086

X

SHIM - pivot shaft (Used from serial #7101201)

1шт.

21

R13085

PLATE - lock (Used from serial #7101201)

2шт.

22

R13420

BOLT

- special 5/8-18 NF (Used from serial #7101201)

6шт.

23

R13538

ELECTRICAL WIRE

WIRE - tie (Used from serial #7101201)

2шт.

24

RESERVED

1шт.

25

R14099

COVER

- pivot shaft (Used from serial #7101201)

2шт.

26

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13006 mt'g.) (Used from serial #7101201)

10шт.

27

92-8

LOCK WASHER,1/2"

(Used from serial #7101201) 1/2"

10шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (Used from serial #7101201)

2шт.

29

70067

BRACKET - guide, track mt'g.

2шт.

30

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

(70067 mt'g.) (Used up to S/N 7101201) Hex, 5/8"-18 x 2 1/4", G5

8шт.

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(70067 mt'g.) (Used from serial #7101201) Hex, 5/8"-18 x 1 3/4", G5

8шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

9шт.

32

R12774

ROLLER ASS'Y. - track (Order with ref. #33 for models prior to serial #7100461) (Used up to serial #7101201) (See Figure 150 for breakdown)

10шт.

R14429

ROLLER ASS'Y. - track (Used from serial #7101201) (See Figure 150 for breakdown)

4шт.

R13554

ROLLER ASS'Y. - track (Used from serial #7101201) (See Figure 150 for breakdown)

6шт.

33

73222

BODY

GASKET - track roller (Used up to serial #7100461)

10шт.

74667

GASKET

- track roller (Used from serial #7100461)

10шт.

34

47648

PRESSURE GAUGE

BOLT - place, 5/8-18 NF (Self locking) (Used up to serial #7101201)

40шт.
