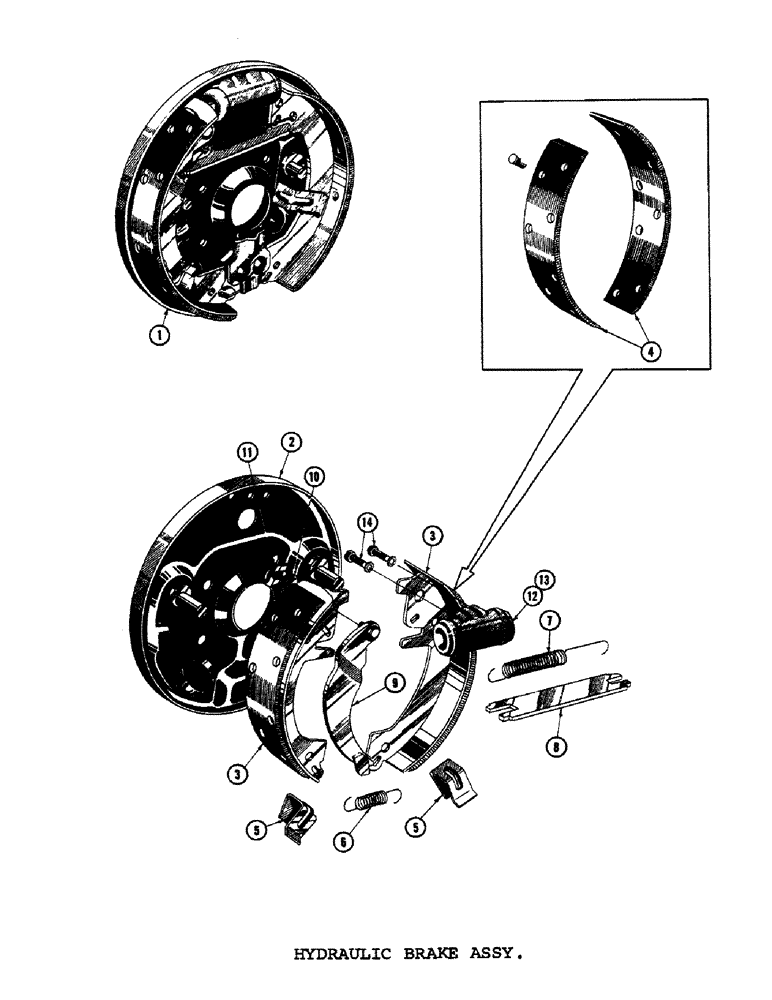

Запчасти Case 1000C (110) - HYDRAULIC BRAKE ASSEMBLY, USED UP TO SERIAL NUMBER 7101201 (04) - UNDERCARRIAGE

1

70904

PIVOT

BRAKE ASS'Y. - hydraulic (Used up to serial #7100107)

2шт.

R13779

BRAKE ASS'Y. - hydraulic (Used from serial #7100107)

2шт.

2

R14280

PLATE ASSY.

PLATE ASS'Y. - backing (Used up to ser. #7100107)

1шт.

R11381

PLATE ASS'Y. - backing (Used from ser. #7100107)

1шт.

3

R2645

PACKAGE - lined shoe

1шт.

4

R2646

LINING

PACKAGE - lining

1шт.

5

33242

SPRING - shoe hold down

1шт.

6

R14164

SPRING - shoe retainer, anchor end

2шт.

7

R14165

SPRING - shoe return, cylinder end

1шт.

8

72120

STRUT - parking brake lever

1шт.

9

70216

LEVER ASS'Y. - parking brake

1шт.

10

33240

PLATE

WASHER - spring, anti-rattle

1шт.

11

33241

RETAINER - parking brake lever

1шт.

12

71056

COVER

CYLINDER ASS'Y. - wheel

1шт.

13

6428

REPAIR KIT - wheel cylinder

1шт.

14

33443

SCREW & LOCKWASHER ASS'Y.

2шт.
