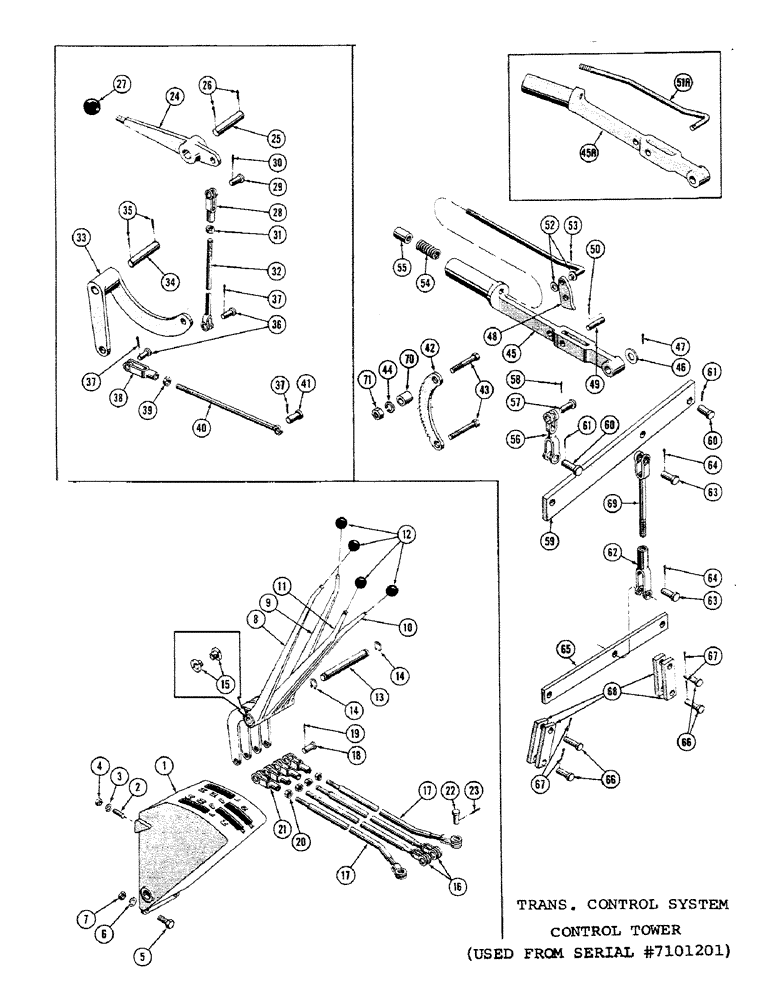

Запчасти Case 1000C (122) - TRANSMISSION CONTROL SYSTEM CONTROL TOWER, USED FROM SERIAL NUMBER 7101201 (03) - TRANSMISSION

1

R14769

TOWER - control

1шт.

2

46510

STUD 1/2-13 NC x 2

2шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

2шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (45708)

2шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

7

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

8

R13403

LEVER - hi low shift, L.H.

1шт.

9

R13404

LEVER - hi low shift, R.H.

1шт.

10

R13405

LEVER - forward & reverse, R.H.

1шт.

11

R13406

LEVER - forward & reverse, L.H.

1шт.

12

31375

WASHER

BALL - grip

4шт.

13

70147

SHAFT

- lever pivot

1шт.

14

W-10757-S

RING - snap

2шт.

15

74898

BUSHING - nylon

8шт.

16

R13399

ROD ASS'Y. - transmission control

2шт.

17

R13401

ROD

ASS'Y. - transmission control

2шт.

18

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (48662) 5/16" x .940"

4шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (48191) 3/32" x 1/2"

4шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam (5/16-24 NF) (48191)

4шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (48602)

4шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (48662) 5/16" x .940"

4шт.

23

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"

4шт.

24

R13377

LEVER

- range

1шт.

25

R13494

SHAFT - lever pivot

1шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

27

70213

KNOB

- control

1шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

29

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

1шт.

31

25-156

JAM NUT,Jam, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48192)

1шт.

32

R13459

LINK - range control

1шт.

33

R13372

LEVER

1шт.

34

R13494

SHAFT - lever pivot

1шт.

35

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

36

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

37

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

3шт.

38

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

39

25-156

JAM NUT,Jam, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48192)

1шт.

40

R13460

ROD

- push

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

42

R13847

BRACKET

RATCHET

1шт.

43

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1/2 (R13847 mt'g.) (45658)

2шт.

44

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

45

NSS

NOT SOLD SEPARAT

HANDLE - parking brake (Used up to 8-15-59) (Order ref. 45A & 51A for service)

2шт.

45a

R16567

HANDLE - parking brake (Used from 8-15-59)

1шт.

46

195-33

WASHER,1/2"

- plain (48428)

1шт.

47

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

1шт.

48

R13848

KEY

PAWL

1шт.

49

35173

PIN

1шт.

50

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

2шт.

51

R13849

ROD - parking brake (Used, Serial Range: up-8-15-59)

1шт.

51a

R14837

ROD - parking brake (Used from 8-15-59)

1шт.

52

195-18

WASHER,1/4"

- plain

2шт.

53

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

1шт.

54

R13850

SPRING

1шт.

55

R13851

BUTTON - control

1шт.

56

R13852

LINK

YOKE & ROD ASS'Y. - parking brake

1шт.

57

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

1шт.

58

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

1шт.

59

R14330

LEVER - cross

1шт.

60

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

61

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

2шт.

62

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

63

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

64

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48682)

2шт.

65

R14149

LINK - cross

1шт.

66

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (48662) 5/16" x .940"

4шт.

67

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"

4шт.

68

R14148

LINK

- parking brake

4шт.

69

O8966AB

X

LINK - parking brake

1шт.

70

R14507

SPACER

2шт.

71

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.
