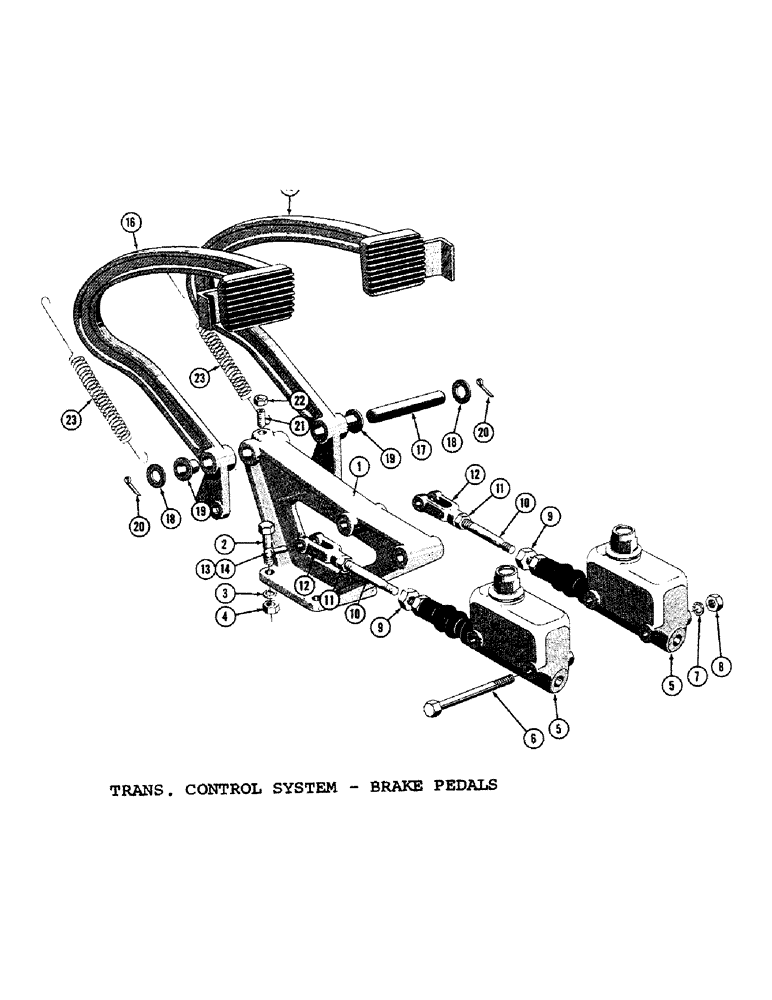

Запчасти Case 1000C (118) - TRANSMISSION CONTROL SYSTEM, BRAKE PEDAL, USED FROM SERIAL NUMBER 7101201 (03) - TRANSMISSION

1

R13496

SUPPORT - brake shaft

1шт.

2

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (R13496 mt'g.) (45658)

4шт.

3

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

4шт.

5

31481

CYLINDER

- master (See Figure 116 for breakdown)

2шт.

6

14-6108

BOLT,Hex, 3/8" - 24 x 6-3/4", Gr 5, Full Thd

HHCS 3/8-24 NF x 6-3/4 (45674)

2шт.

7

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16-18 NC) (47801)

2шт.

10

R13580

ROD

- push

2шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam (1/2-20 NF) (48194)

2шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605)

2шт.

13

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665)

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

15

R14636

PEDAL ASS'Y. - brake R.H.

1шт.

16

R14635

PEDAL ASS'Y. - brake L.H.

1шт.

17

NLS

NO LONGER SERVICED

PIN - brake pedal pivot

1шт.

18

195-45

WASHER,3/4"

(48432) 3/4"

2шт.

19

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- brake

4шт.

20

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (48707) 5/32" x 1 1/4"

2шт.

21

178-459

SET,Hex Soc, 3/8"-16 x 1"

SCREW - socket head set (3/8-16 NC x 1)

1шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam (3/8-16 NC) (47892)

1шт.

23

R13628

SPRING

- brake return

1шт.
