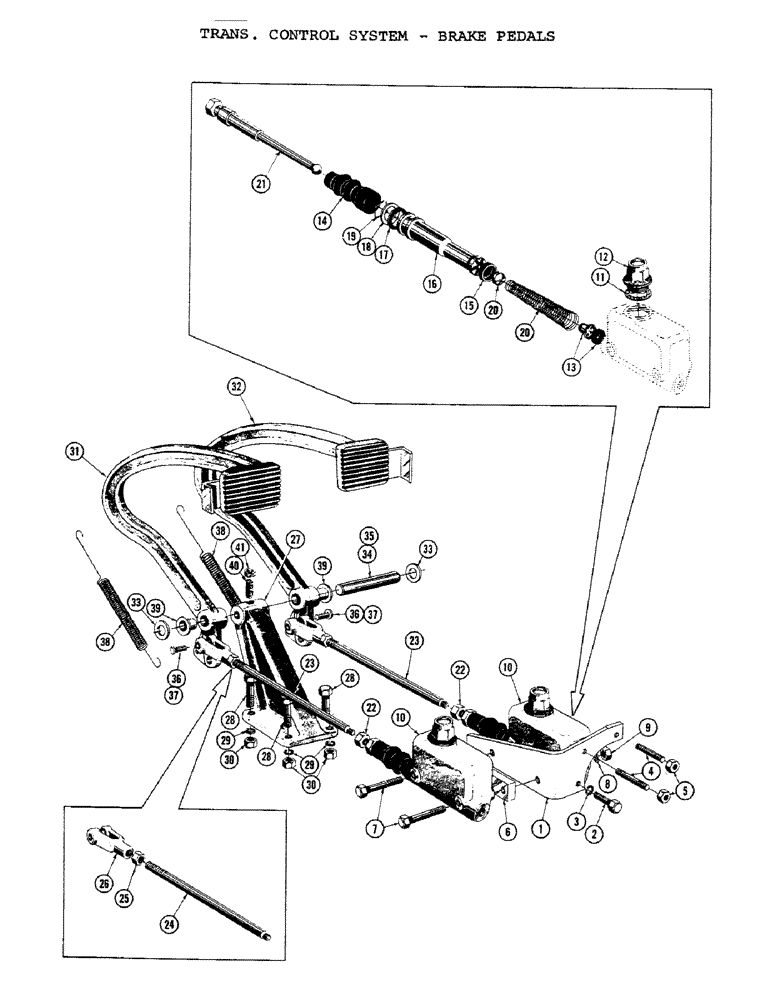

Запчасти Case 1000C (116) - TRANSMISSION CONTROL SYSTEM, BRAKE PEDALS, USED UP TO SERIAL NUMBER 7101201 (03) - TRANSMISSION

1

71223

SUPPORT ASS'Y. - master cylinder

1шт.

2

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (71223 mt'g.) (45706)

1шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

4

70967

STUD 1/2-20 NF x 3-1/8 (71223 mt'g.)

2шт.

5

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

2шт.

6

70288

SPARE PART

SPACER - master cylinder

2шт.

7

14-6108

BOLT,Hex, 3/8" - 24 x 6-3/4", Gr 5, Full Thd

HHCS 3/8-24 NF x 6-3/4 (31481 mt'g.) (45674)

2шт.

8

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

10

31481

CYLINDER

ASS'Y. - master

2шт.

11

33356

GASKET - filler cap

1шт.

12

NLS

NO LONGER SERVICED

CAP - filler

1шт.

5896

KIT

REPAIR KIT - master cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT ASS'Y. - master cylinder valve

1шт.

14

33346

BOOT

- master cylinder

1шт.

15

33351

X

CUP - master cylinder

1шт.

16

33350

X

PISTON ASS'Y. - master cylinder

1шт.

17

33349

SET

SEAL - "O" ring

1шт.

18

NLS

NO LONGER SERVICED

WASHER - master cylinder

1шт.

19

33347

LOCKING DEVICE

STOP - master cylinder

1шт.

20

33352

SPRING

& END CAP ASS'Y. - master cylinder valve

1шт.

21

33345

ROD

- brake plunger

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16-18 NF) (47801)

2шт.

23

72172

SEAL PROTECTION

ROD ASS'Y. - push

2шт.

24

72171

ROD - brake push

1шт.

25

25-158

JAM NUT,Jam, 1/2"-20, G5

- reg. SF hex jam (1/2-20 NF) (48194)

1шт.

26

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605)

1шт.

27

70285

SUPPORT - brake shaft

1шт.

28

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (70285 mt'g.) (45657)

3шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (70285 mt'g.) (45658)

1шт.

29

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

4шт.

31

71866

PEDAL ASS'Y. - L.H. brake

1шт.

32

71865

SNAP RING

PEDAL ASS'Y. - R.H. brake

1шт.

33

196-45

WASHER,1 1/32" x 2 1/4" x .259", HDN

- plain (48432)

2шт.

34

72324

O-RING

PIN - brake pedal pivot

1шт.

35

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), (48709) 5/32" x 1 1/2"

2шт.

36

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665)

2шт.

37

132-47

COTTER PIN,1/8" x 7/8"

PIN - cotter, 3/32 dia. x 1 (48694)

2шт.

38

70264

SPRING - brake return

2шт.

39

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- nylon

4шт.

40

178-459

SET,Hex Soc, 3/8"-16 x 1"

SCREW - socket hd. cap, 3/8-16 NC x 1

1шт.

41

25-146

JAM NUT,Jam, 3/8"-16, G5

- reg. SF hex jam (3/8-16 NC) (47892)

1шт.
