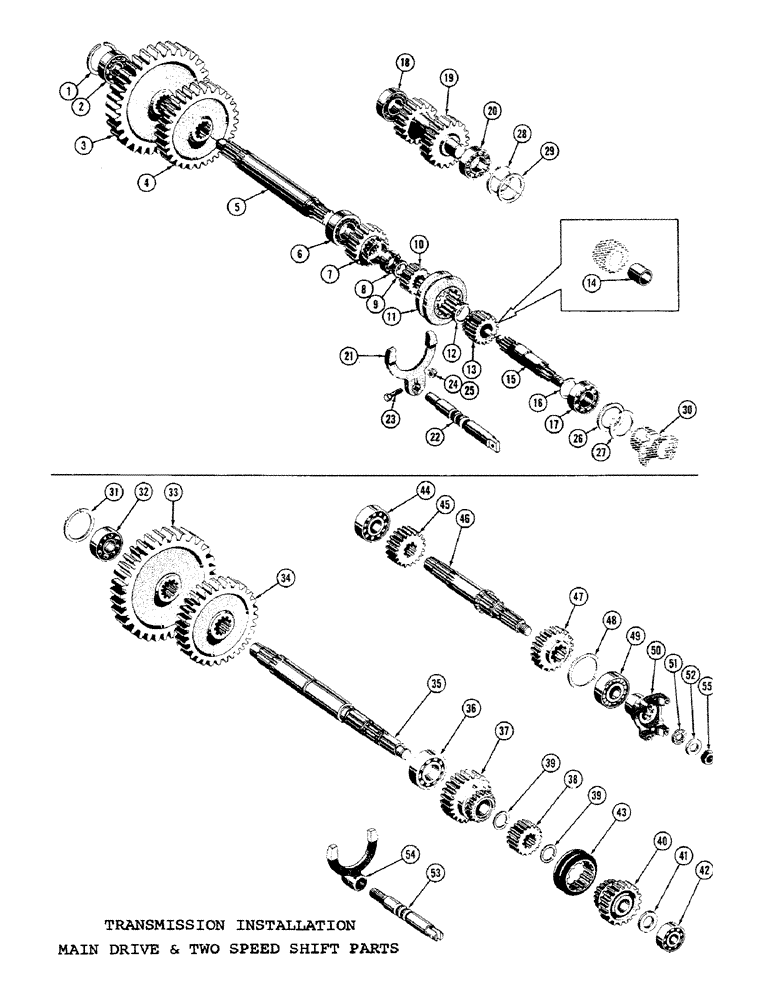

Запчасти Case 1000C (102) - TRANSMISSION INSTALLATION, MAIN DRIVE AND TWO SPEED SHIFT PARTS (03) - TRANSMISSION

73876

FRAME

SPARE PART TRANSMISSION ASS'Y. - complete (Cont'd) (Used up to S/N 7101201)

1шт.

1

49477

RING, SNAP

RING SNAP 3.156", Int, #315

1шт.

2

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

Ball

1шт.

3

70753

GEAR

Reverse

1шт.

4

70752

SPARE PART GEAR - forward

1шт.

5

70841

KIT

Drive

1шт.

6

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

Ball

1шт.

7

70754

SPARE PART Driven, low

1шт.

8

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

Ball

1шт.

9

70835

SHAFT

Input shaft

1шт.

10

NSS

NOT SOLD SEPARAT

HUB - clutch inner & high (Used up to S/N 7100332) (Order ref. #10, 11 & 22 for service)

1шт.

74278

SPARE PART HUB - clutch inner & high (Used from S/N 7100332)

1шт.

11

NSS

NOT SOLD SEPARAT

COLLAR - shifting (Used up to S/N 7100332) (Order ref. #10, 11 & 22 for service)

1шт.

74279

X

COLLAR - shifting (Used from S/N 7100332)

1шт.

12

70836

PISTON

Shifting collar

1шт.

13

70292

SPARE PART

GEAR & BUSHING ASS'Y. - driven, low

1шт.

14

70815

GASKET

BUSHING

1шт.

15

70840

SHAFT - input

1шт.

16

70837

SPARE PART Input

1шт.

17

40022

WASHER

BEARING - ball

1шт.

18

40265

ROLLER BEARING

Roller

1шт.

19

70755

SPARE PART GEAR - counter

1шт.

20

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

Ball

1шт.

21

70751

FORK - shifter

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - shifter (Used up to S/N 7100332) (Order ref. #10, 11 & 22 for service)

1шт.

71254

SPARE PART SHAFT - shifter (Used from S/N 7100332)

1шт.

23

16-632

SCREW,Hex, 3/8" - 24 x 2"

3/8"-24 NF x 2 (73129 or 72154 mt'g.)

1шт.

24

25-236

SLOTTED NUT,3/8"-24, G5, Thk

Castle

1шт.

25

132-27

COTTER PIN,3/32" x 7/8"

1шт.

26

73360

ADAPTER

SPARE PART SHIM (.010)

1шт.

27

73361

HANDLE

SPARE PART SHIM (.020)

1шт.

28

40592

SHIM

SPARE PART SHIM, (.005)

1шт.

29

40593

SPARE PART (.010)

1шт.

30

REF

INSTRUCTION

YOKE - end (See Figure 94, ref. #16)

1шт.

R2354

TRANSMISSION ASS'Y. - complete (Cont'd.) (Used from S/N 7101201)

1шт.

31

NLS

NO LONGER SERVICED

RING SNAP 3.156", Int, #315

1шт.

32

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

Ball

1шт.

33

70753

GEAR

Reverse

1шт.

34

70752

SPARE PART GEAR - forward

1шт.

35

R12647

SPARE PART SHAFT - drive

1шт.

36

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

Ball

1шт.

37

R13299

GEAR

Driven, low

1шт.

38

R12646

SPARE PART HUB - clutch inner & high

1шт.

39

R13338

SNAP RING,#150, Ext

2шт.

40

R13340

SPARE PART Driven, high

1шт.

41

R12650

BUSHING

SPACER - input

1шт.

42

R11637

BEARING

Roller

1шт.

43

74279

X

COLLAR - shifting

1шт.

44

R11638

BEARING

Roller

1шт.

45

R11421

X

GEAR - drive, low

1шт.

46

R11416

SPARE PART SHAFT - input

1шт.

47

R11419

GEAR

Drive, high

1шт.

48

R13804

RING

Snap

1шт.

49

O1463AB

X

BEARING - ball

1шт.

50

R17992

SPARE PART

1шт.

51

34395

SEALING WASHER

WASHER - cork

1шт.

52

32601

WASHER

Yoke retaining

1шт.

53

R11417

SHAFT

Shifter

1шт.

54

R13805

FORK

Shifter

1шт.

55

131-581

LOCK NUT,3/4"-16

1шт.
