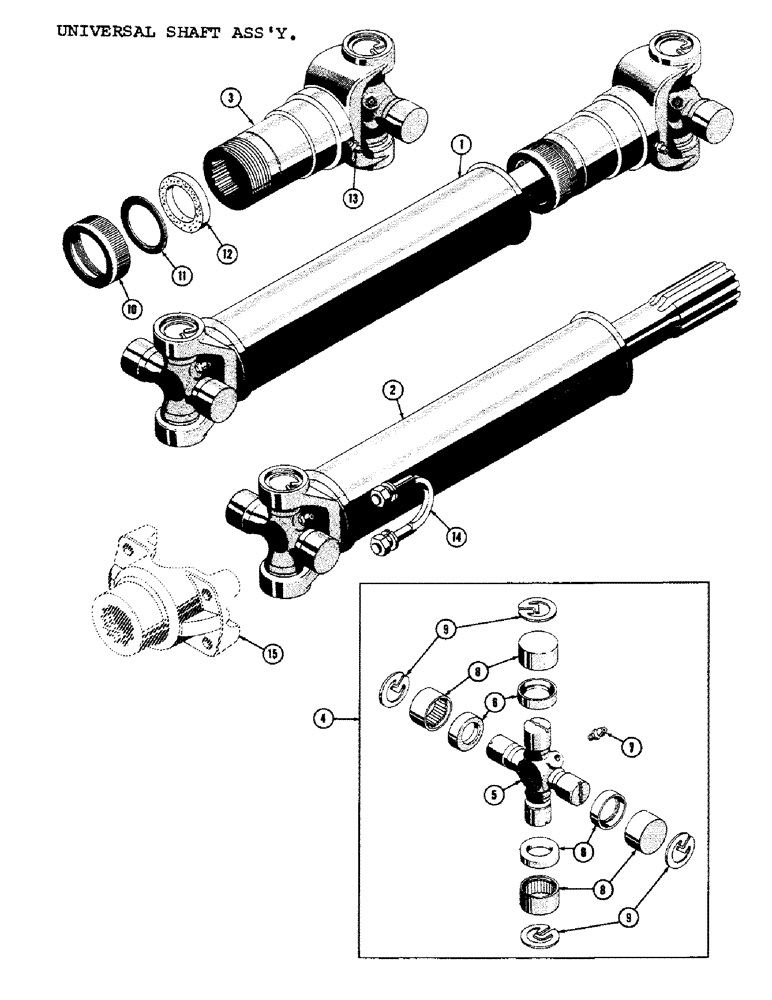

Запчасти Case 1000C (096) - UNIVERSAL SHAFT ASSEMBLY, USED FROM SERIAL NUMBER 7101201 (03) - TRANSMISSION

1

R13272

SHAFT

ASSY. - universal

1шт.

2

R13998

SHAFT

SUB ASSY. - universal

1шт.

3

R13989

LINKAGE YOKE

& SLEEVE ASSY. - universal

1шт.

4

R2713

BEARING ASSY

JOURNAL & BEARING KIT - universal

1шт.

5

R13990

SPARE PART CROSS ASSY. - universal

1шт.

6

R13994

SPARE PART GASKET - journal

4шт.

7

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

8

R13991

SPARE PART BEARING ASSY. - universal

4шт.

9

R13992

RING, SNAP

RING SNAP

4шт.

10

R13995

X

CAP - dust

1шт.

11

R13996

WASHER

Steel

1шт.

12

R13997

WASHER

Cork

1шт.

13

R14337

X

FITTING - straight grease

4шт.

14

R13345

BOLT

"U" - universal

4шт.

15

REF

INSTRUCTION

YOKE - universal (See Figure 88 ref. #28 or Figure 102, ref. #50)

2шт.
