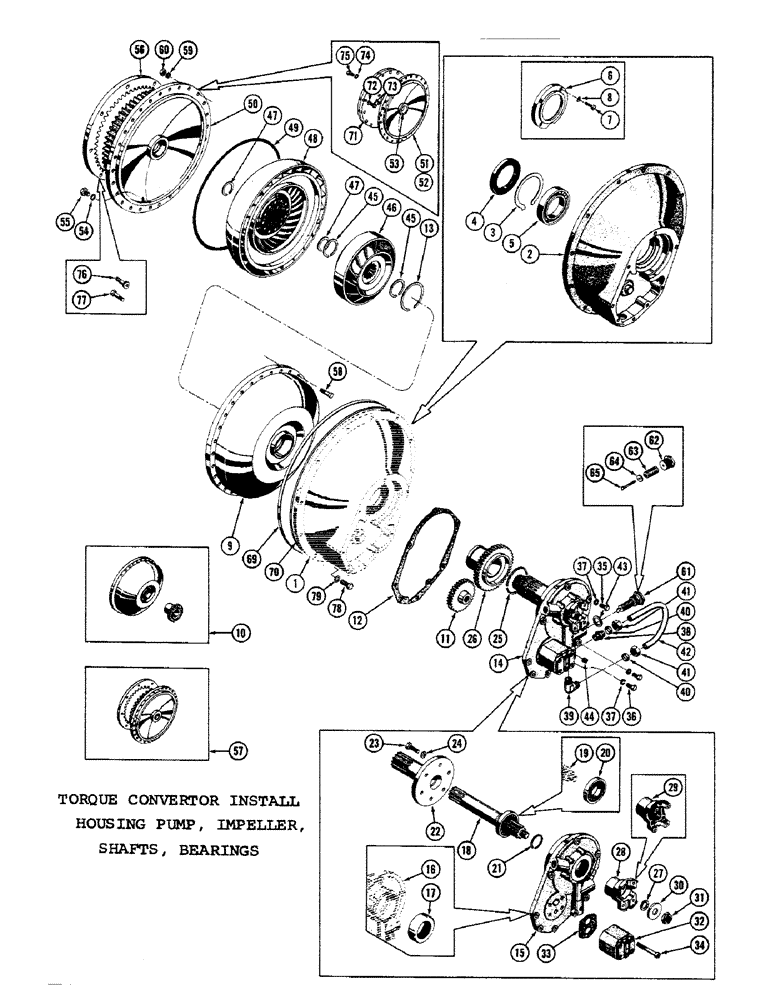

Запчасти Case 1000C (088) - TORQUE CONVERTOR INSTALLATION, HOUSING PUMP, IMPELLER, SHAFTS, BEARINGS (03) - TRANSMISSION

72537

CONVERTER ASS'Y. - torque (Used up to ser. #7101201)

1шт.

R13921

CONVERTER ASS'Y. - torque (Used from ser. #7101201 and up to ser. #7101438)

1шт.

R15276

CONVERTER ASS'Y. - torque (Used from ser.#7101438)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASS'Y. - converter

1шт.

2

R15782

HOUSING AND SHAFT ASS'Y. - converter

1шт.

3

R14061

RING - snap

1шт.

4

17421

SEAL

- oil

1шт.

5

17419

BALL BEARING

BEARING - ball

1шт.

6

74044

SIEVE

RETAINER - bearing (Used up to ser. #1078)

1шт.

7

74045

FHCS - #10-24 NF x 1/2 (Used up to ser. #1078)

4шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock (Used up to ser. #1078)

4шт.

9

NSS

NOT SOLD SEPARAT

IMPELLER ASS'Y. - converter (Used up to ser. #1078) (Order kit #6765, ref. #10)

1шт.

73736

IMPELLER ASS'Y. - converter (Used from ser. #1708)

1шт.

10

6765

KIT - impeller, pump drive gear (Used up to ser. #1078)

1шт.

11

73738

GEAR ASS'Y. - pump driven

1шт.

12

74048

GASKET - rear cover (Used up to ser. #1138)

1шт.

13

73740

AIR PRE-CLEANER ASSY

COVER AND COLLECTOR RING ASS'Y. - rear (Used up to ser. #1138)

1шт.

73741

SLEEVE

COVER AND COLLECTOR RING ASS'Y. - rear (Used from ser. #1138)

1шт.

15

74047

COVER ASS'Y. - rear (Used up to ser. #1138)

1шт.

17432

COVER ASS'Y. - rear (Used from ser. #1138)

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

17

17431

OIL SEAL

- oil

1шт.

18

17433

SHAFT

ASS'Y. - turbine output

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - turbine output

1шт.

20

VT2893

X

BEARING - ball

1шт.

21

17434

RING

- piston

1шт.

22

17435

RING - collector

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

24

92-5

LOCK WASHER,5/16"

6шт.

25

15173003

SCRAPER

- piston

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR ASS'Y. - pump drive (Used up to ser. #1078) (Order kit #6765 ref. #10)

1шт.

73737

GEAR ASS'Y. - pump drive (Used from ser. #1078 up to ser. #7101201)

1шт.

R14062

GEAR ASS'Y. - pump drive (Used from ser. #7101201)

1шт.

27

34395

SEALING WASHER

WASHER - cork

1шт.

28

17437

YOKE - splined (Used up to ser. #7101201)

1шт.

29

R17992

YOKE - splined (Used from ser. #7101201)

1шт.

30

17438

WASHER

- plain

1шт.

31

17444

NUT - lock (3/4-16 NF)

1шт.

32

17439

PUMP ASS'Y. - converter (See Figure 92 for breakdown)

1шт.

33

17440

- pump

1шт.

34

17441

SPARE PART

SHCS - 1/4-20 NC x 2-1/2

4шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Cover & collector mt'g.) Hex, 3/8"-16 x 2", G5

2шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Cover & coll. mt'g.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

37

92-6

LOCK WASHER,3/8"

8шт.

38

73743

PIN

CONNECTOR - ball sleeve tube 5/8 x 1/2 NP

1шт.

39

73744

LEVER

ELBOW - 90 degree ball sleeve tube 5/8 x 1/2 NP

1шт.

40

73745

SWIVEL PIVOT

SLEEVE - ball 5/8

2шт.

41

73746

BLOCK

NUT - ball sleeve tube 5/8

2шт.

42

73747

TUBE -, Serial Range: pump-converter

1шт.

43

73748

- annular

1шт.

44

17415

PLUG

- pipe, 1/8-27 dry seal

2шт.

45

17404

X

RING - snap

2шт.

46

17405

FASTENER

STATOR - converter

1шт.

47

17406

RING

- snap

2шт.

48

17407

TURBINE ASS'Y. - converter

1шт.

49

R14063

O-RING

SEAL - "O" ring

1шт.

50

NSS

NOT SOLD SEPARAT

COVER ASS'Y. - converter (Used up to ser. #1138) (Order kit #6764, ref. #57)

1шт.

17411

KNOB

COVER ASS'Y. - converter (Used from ser. #1138 & up to ser. #1001GA) (Inc. ref. #54 & 55)

1шт.

51

R15780

COVER ASS'Y. - converter (Used from ser. #1001GA)

1шт.

52

NSS

NOT SOLD SEPARAT

COVER - converter

1шт.

53

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

54

17413

X

SEAL - "O" ring

1шт.

55

17414

PLUG - drain and fill

1шт.

56

NSS

NOT SOLD SEPARAT

GEAR - driving ring (Used up to ser. #1138) (Order kit #6764, ref. #57)

1шт.

17416

GEAR - driving ring (Used from ser. #1138 and up to ser. #1819)

1шт.

NSS

NOT SOLD SEPARAT

GEAR - driving ring (Used from ser. #1819 and up to ser. #1001GA) (Order kit #R2536 for service)

1шт.

57

6764

KIT - front cover & ring (Used up to ser. #1138)

1шт.

58

17412

BOLT

- special

30шт.

59

92-5

LOCK WASHER,5/16"

30шт.

60

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

30шт.

61

72494

VALVE - converter regulator (Used up to ser. #3273)

1шт.

R14065

VALVE - converter regulator (Used from ser. #3273) (Must be used with rear cover ass'y. with reduced pressure - see ref. #15)

1шт.

62

72533

BRACKET

SCREW - valve retainer

1шт.

63

72534

PIN

SPRING - regulator valve (Used up to ser. #3273)

1шт.

R14056

X

SPRING - regulator valve (Used from ser. #3273)

1шт.

64

72529

SCREW

DISC - regulator valve (Used up, Serial Range: -#3273)

1шт.

65

72539

RING

PIN - regulator valve

1шт.

66

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(Not shown) Hex, 5/16"-24 x 1 1/4", G5

1шт.

67

R14297

PIN - spring 1/4 x 1/2 x .048 (Not shown)

1шт.

68

17410

X

SEAL - "O" ring (Not shown)

1шт.

69

R11809

BAND - torque converter (Used from ser. #7100701 and up to ser. #7101438)

1шт.

70

R11442

SEAL - torque converter (Used from ser. #7100701 and up to ser. #7101438)

1шт.

71

R14953

PLATE

- drive (Used from ser. #7101438)

3шт.

72

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate (Used from ser. #7101438)

16шт.

73

R14979

SCREW

BOLT - self locking, 3/8-16 NC x 3/4 (Used from ser. #7101438)

16шт.

74

R14952

RING - reinforcement (Used from ser. #7101438)

1шт.

75

R14980

BOLT - self locking, 7/16-14 NC x 3/4 (Used from ser. #7101438)

6шт.

76

61-33814

HEX SOC SCREW,3/8" - 16 x 7/8"

SHCS - 3/8-16 NC x 7/8 (Ring gear mt'g.) (Used up to ser. #7101201), Screw

8шт.

77

R13371

BOLT - sepcial (Ring gear mt'g.) (Used from ser. #7101201 and up to ser. #7101438)

8шт.

78

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(72537 or R13921, or R15276 mt'g.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

79

92-6

LOCK WASHER,3/8"

12шт.
