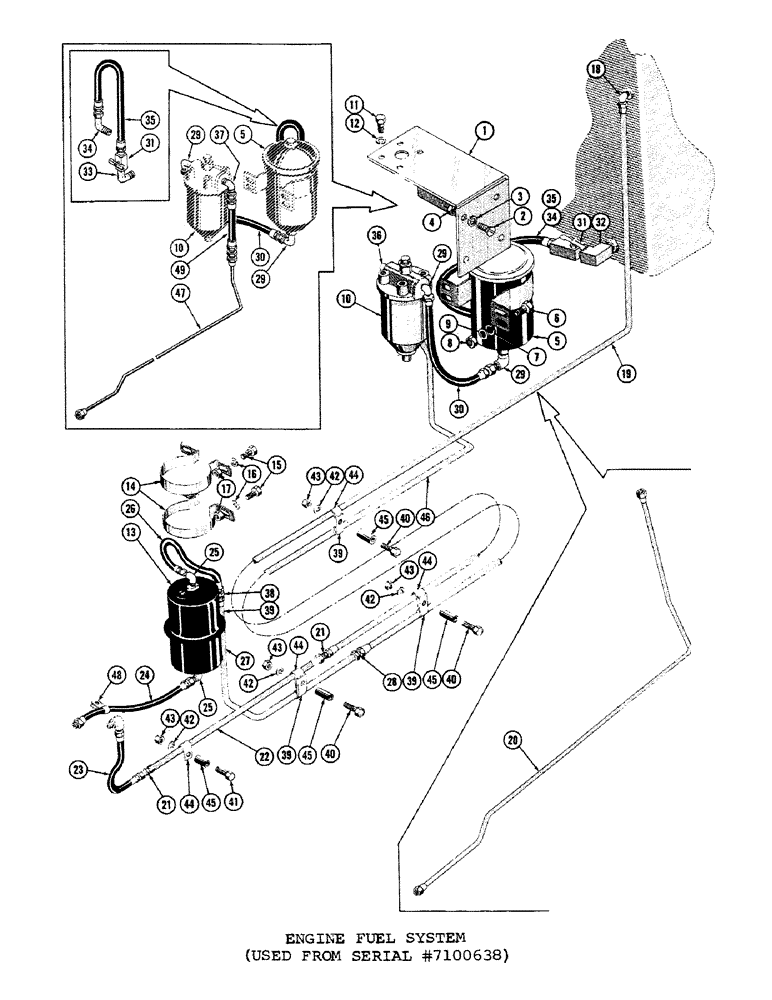

Запчасти Case 1000C (056) - ENGINE FUEL SYSTEM, USED FROM SERIAL NUMBER 7100638 (02) - FUEL SYSTEM

1

74128

BRACKET - filter mt'g

1шт.

2

74-514

FHMS 5/16-24 NF x 7/8 (74128 mt'g.)

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

5

71243

FILTER

ASS'Y. - fuel primary (See Figure 52 for breakdown)

1шт.

6

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71243 mt'g.) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

9

195-21

WASHER,5/16"

4шт.

10

71244

FILTER ASS'Y. - secondary (See Figure 52 for breakdown)

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(71244 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

34033

SPINDLE

FILTTER ASS'Y. - final stage fuel

1шт.

14

30134

BRACKET ASS'Y. - final fuel filter

2шт.

15

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(30134 mtg.) Hex, 5/16"-24 x 7/8", G5, Full Thd

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

18

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

- 90 degree male, 1/4 SAE-1/4 NP

1шт.

19

74718

TUBE ASS'Y. - fuel line (Used up to ser. #7101201)

1шт.

20

R14043

TUBE ASS'Y. - fuel line (Used from ser. #7101201)

1шт.

21

222-712

FITTING

UNION - male, 1/4 SAE

2шт.

22

71038

TUBE ASS'Y. - fuel line

1шт.

23

D20272

HOSE

HOSE ASS'Y. - fuel line

1шт.

24

74122

HOSE

ASS'Y. - fuel line

1шт.

25

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NP

2шт.

26

74131

HOSE ASS'Y. - fuel line

1шт.

27

74187

TUBE ASS'Y. - fuel line

1шт.

28

222-714

FITTING

UNION - male, 3/8 SAE

1шт.

29

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NP

2шт.

30

74131

HOSE ASS'Y - fuel line

1шт.

31

217-94

SHUT-OFF VALVE

VALVE - shutoff

1шт.

32

221-375

ELBOW

- 90 degree street, 1/4 NP (Used up to ser. #7101566)

1шт.

33

R14868

X

ELBOW - 90 degree street, 1/4 NP (Used up from ser. #7101566)

1шт.

34

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree male, 3/8 SAE - 1/4 NP

1шт.

35

74131

HOSE ASS'Y. - fuel line

1шт.

36

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree street, 1/4 NP (Used up to ser. #7101566)

1шт.

37

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree street, 1/4 NP (Used from ser. #7101566)

1шт.

38

222-746

COUPLING - female, 3/8 SAE - 1/4 NP

1шт.

39

49845

CLAMP

- tube

4шт.

40

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8-24 NF x 2-1/4 (49845 mt'g.)

3шт.

41

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2

1шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

44

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

4шт.

45

71029

SPACER - clamp

4шт.

46

74125

TUBE ASS'Y. - fuel line (Used up to ser. #7101201)

1шт.

47

R14045

TUBE ASS'Y. - fuel line (Used from ser. #7101201)

1шт.

48

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

1шт.

49

R13572

HOSE ASS'Y - fuel line (Used from ser. #7101201)

1шт.
