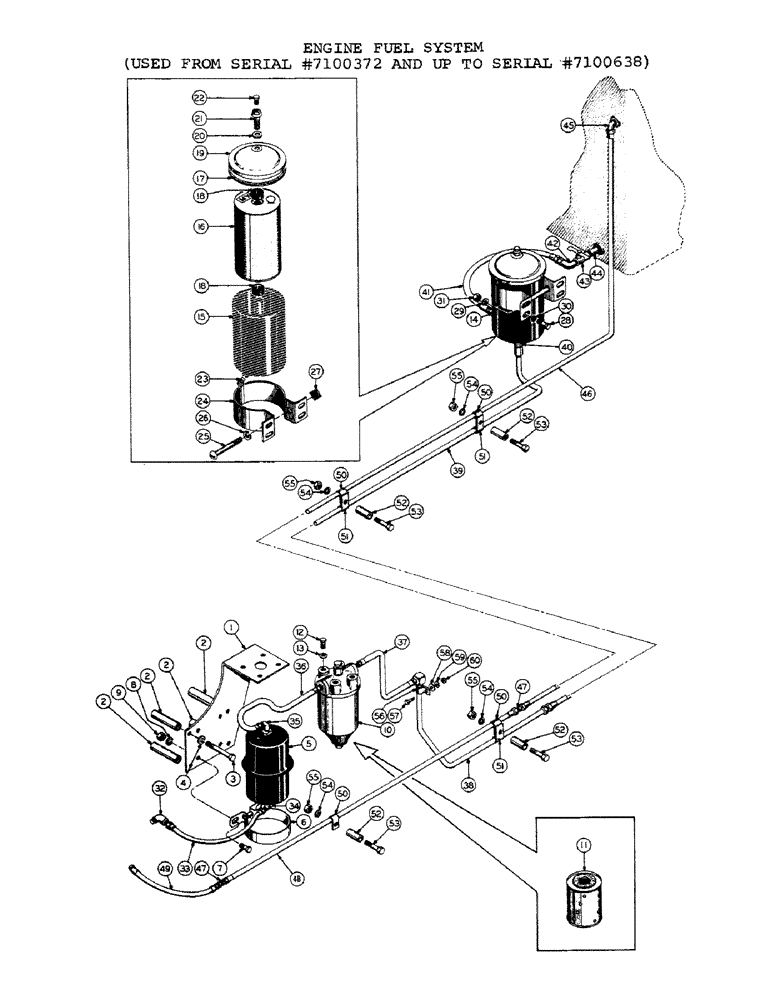

Запчасти Case 1000C (054) - ENGINE FUEL SYSTEM, USED FROM SERIAL NUMBER 7100372 AND UP TO SERIAL NUMBER 7100638 (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
71313
BRACKET - fuel filter mtg.
1шт.
2
71312
SPACER - filter bracket
4шт.
3
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
HHCS - 3/8-16 NC x 3-3/4 (71313 mtg.) (45067)
4шт.
4
92-6
LOCK WASHER,3/8"
(48446) 3/8"
4шт.
5
34033
SPINDLE
FILTER ASS'Y. - fuel final stage
1шт.
6
30134
BRACKET ASS'Y. - final fuel filter
2шт.
7
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
(30134 & 34033 mtg.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd
4шт.
8
92-5
LOCK WASHER,5/16"
(48445) 5/16"
4шт.
9
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF) (48101)
4шт.
10
71244
FILTER ASS'Y. - fuel secondary
1шт.
11
NLS
NO LONGER SERVICED
CARTRIDGE - secondary filter
1шт.
12
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
(71244 mtg.) (45055) Hex, 3/8"-16 x 7/8", G5, Full Thd
4шт.
13
92-6
LOCK WASHER,3/8"
(48446) 3/8"
4шт.
14
71243
FILTER
ASS'Y - fuel primary
1шт.
15
NSS
NOT SOLD SEPARAT
BODY ASS'Y - primary fuel filter
1шт.
16
86982911
FILTER, ELEMENT
CARTRIDGE - fuel filter
1шт.
17
73500
GASKET - filter cover
1шт.
18
73497
PLATE
GASKET - filter cartridge
2шт.
19
34850
CYLINDER
COVER ASS'Y - fuel filter
1шт.
20
10054
COLLAR
GASKET - cover screw
1шт.
21
73501
SCREW
CAPSCREW - filter cover
1шт.
22
73502
BOLT
VENT ASS'Y - air
1шт.
23
35506
LINE
PLUG - filter drain
1шт.
24
73499
SPRING
STRAP - filter mtg.
1шт.
25
73505
BLOCK
BOLT - mtg. clamp
1шт.
26
73504
GEAR
WASHER - lock, mtg. clamp
1шт.
27
73503
NUT - hex. mtg. clamp
1шт.
28
14-514
BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd
(71243 mtg.) (45630) Hex, 5/16"-24 x 7/8", G5, Full Thd
4шт.
29
92-5
LOCK WASHER,5/16"
(48445) 5/16"
4шт.
30
95-5
WASHER,3/8" x 7/8" x .083"
- plain (48405)
4шт.
31
25-115
NUT,5/16"-24, G5
- reg. SF. hex (5/16"-24 NF) (48101)
4шт.
32
218-483
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
- 90 degree male, 3/8 JIC to 1/4 NP (50106)
1шт.
33
71310
HOSE ASS'Y - c/case to final stage filter
1шт.
34
221-412
ELBOW,90 Degree, 1/4"-27, NPT
- 90 degree street, 1/4 NP (41671)
1шт.
35
222-768
ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT
- 90 degree male, 3/8 JIC to 1/4 NP
1шт.
36
222-768
ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT
HOSE ASS'Y - final stage filter to secondary filter
1шт.
37
71377
HOSE ASS'Y - secondary filter to primary filter
1шт.
38
72970
TUBE ASS'Y - secondary filter to primary filter
1шт.
39
72968
NOZZLE,24, 5.75" Length
TUBE ASS'Y - secondary filter to primary filter
1шт.
40
HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
CONNECTOR - male, 3/8 JIC to 1/4 NP (50016)
1шт.
41
71377
HOSE ASS'Y - primary, Serial Range: filter-tank
1шт.
42
218-513
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF
- 90 degree female, 3/8 JIC to 1/4 NP (50165)
1шт.
43
217-94
SHUT-OFF VALVE
COCK - fuel shut-off
1шт.
44
221-705
NIPPLE - pipe, 1/4 NP x 2-3/8
1шт.
45
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
male, to 1/4 SAE 90º, 7/16"-20, 45º Fl x 1/8" NPT
1шт.
46
71042
SPRING
TUBE ASS'Y - fuel return
1шт.
47
222-712
FITTING
UNION - 1/4 SAE
2шт.
48
71038
TUBE ASS'Y - fuel return
1шт.
49
36558
SCREW
HOSE ASS'Y - fuel return
1шт.
50
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
- tube
4шт.
51
49845
CLAMP
- tube
3шт.
52
71029
SPACER - tube clamp
4шт.
53
14-632
BOLT,Hex, 3/8" - 24 x 2", Gr 5
HHCS - 3/8-24 NF x 2 (49845 & 49851 mtg.) (45660)
4шт.
54
92-6
LOCK WASHER,3/8"
(48446) 3/8"
4шт.
55
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF) (48102)
4шт.
56
49845
CLAMP
- tube
1шт.
57
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
(49845 mtg.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd
1шт.
58
95-5
WASHER,3/8" x 7/8" x .083"
- plain (48405)
1шт.
59
92-5
LOCK WASHER,5/16"
(48445) 5/16"
1шт.
60
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF) (48101)
1шт.
Выбрано товаров: 60
