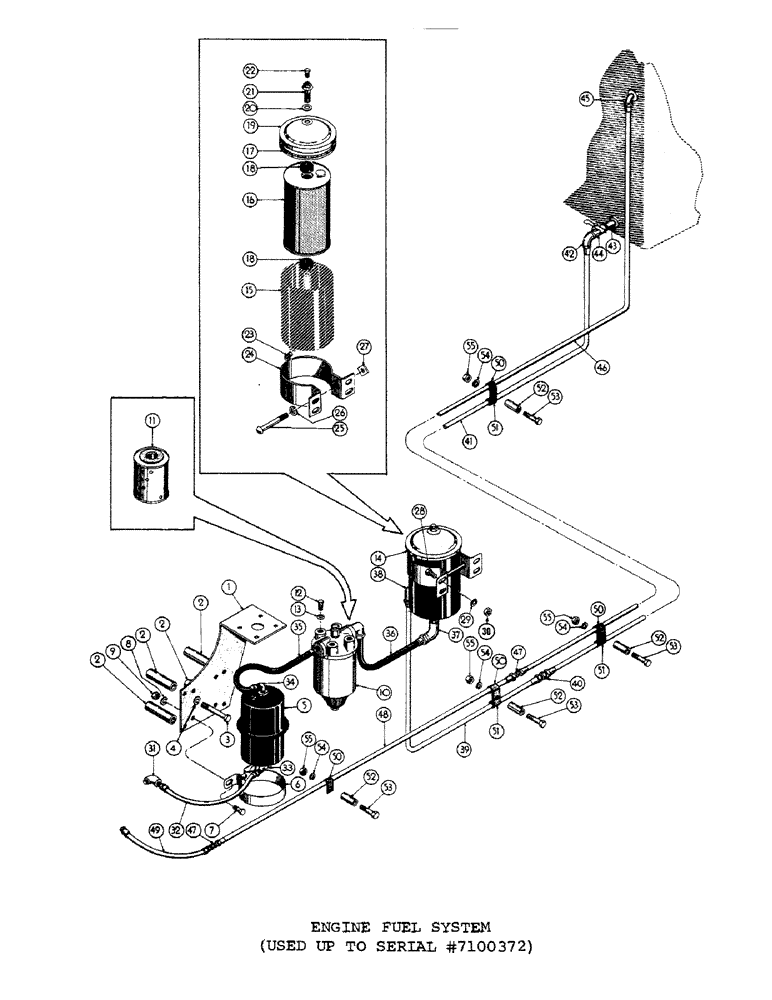

Запчасти Case 1000C (052) - ENGINE FUEL SYSTEM, USED UP TO SERIAL NUMBER 7100372 (02) - FUEL SYSTEM

1

71313

BRACKET - fuel filter mtg.

1шт.

2

71312

SPACER - filter bracket

4шт.

3

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8 - 16 NC x 3-3/4 (71313 mtg.) (45067)

4шт.

4

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

5

34033

SPINDLE

FILTER ASS'Y. - final stage fuel

1шт.

6

30134

BRACKET ASS'Y. - final fuel filter

2шт.

7

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(30134 & 34033 mtg.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

8

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

9

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

10

71244

FILTER ASS'Y. - secondary fuel

1шт.

11

72319

CARTRIDGE - secondary filter

1шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(71244 mtg.) (45055) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

14

71243

FILTER

ASS'Y - primary fuel

1шт.

15

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - primary fuel filter

1шт.

16

86982911

FILTER, ELEMENT

CARTRIDGE - fuel filter

1шт.

17

73500

GASKET - filter cover

1шт.

18

73497

PLATE

GASKET - filter cartridge

2шт.

19

34850

CYLINDER

COVER ASS'Y. - fuel filter

1шт.

20

10054

COLLAR

GASKET - cover screw

1шт.

21

73501

SCREW

CAPSCREW - filter cover

1шт.

22

73502

BOLT

VENT ASS'Y. - air

1шт.

23

35506

LINE

PLUG - filter drain

1шт.

24

73499

SPRING

STRAP - filter mtg.

1шт.

25

73505

BLOCK

BOLT - mtg. clamp

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER - lock, mtg. clamp

1шт.

27

73503

NUT - hex, mtg. clamp

1шт.

28

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71243 mtg.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

29

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

30

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

31

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106)

1шт.

32

71310

HOSE ASS'Y. - c/case to final stage filter

1шт.

33

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 NP

1шт.

34

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106)

1шт.

35

71377

HOSE ASS'Y. - final stage filter to secondary filter

1шт.

36

71377

HOSE ASS'Y. - secondary filter to primary filter

1шт.

37

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106)

2шт.

38

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 NP

1шт.

39

71032

TUBE ASS'Y. - primary, Serial Range: filter-tank

1шт.

40

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 3/8 JIC

1шт.

41

NSS

NOT SOLD SEPARAT

TUBE ASS'Y. - primary filter to tank (Order 74717 for service)

1шт.

42

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

- 90 degree female, 3/8 JIC to 1/4 NP (50165)

1шт.

43

221-705

NIPPLE - pipe, 1/4 NP x 2-3/8

1шт.

44

217-94

SHUT-OFF VALVE

COCK - fuel shut-off

1шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, to 1/4 JIC 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

46

71042

SPRING

TUBE ASS'Y. - fuel return

1шт.

47

222-712

FITTING

UNION - 1/4 SAE

2шт.

48

71038

TUBE ASS'Y. - fuel return

1шт.

49

D20272

HOSE

HOSE ASS'Y. - fuel return

1шт.

50

49851

SHIELD

- tube

4шт.

51

49845

CLAMP

- tube

3шт.

52

71029

SPACER - tube clamp

4шт.

53

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8 - 24 NF x 2 (49845 & 49851 mtg.) (45660)

4шт.

54

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

55

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8-34 NF) (48102)

4шт.
