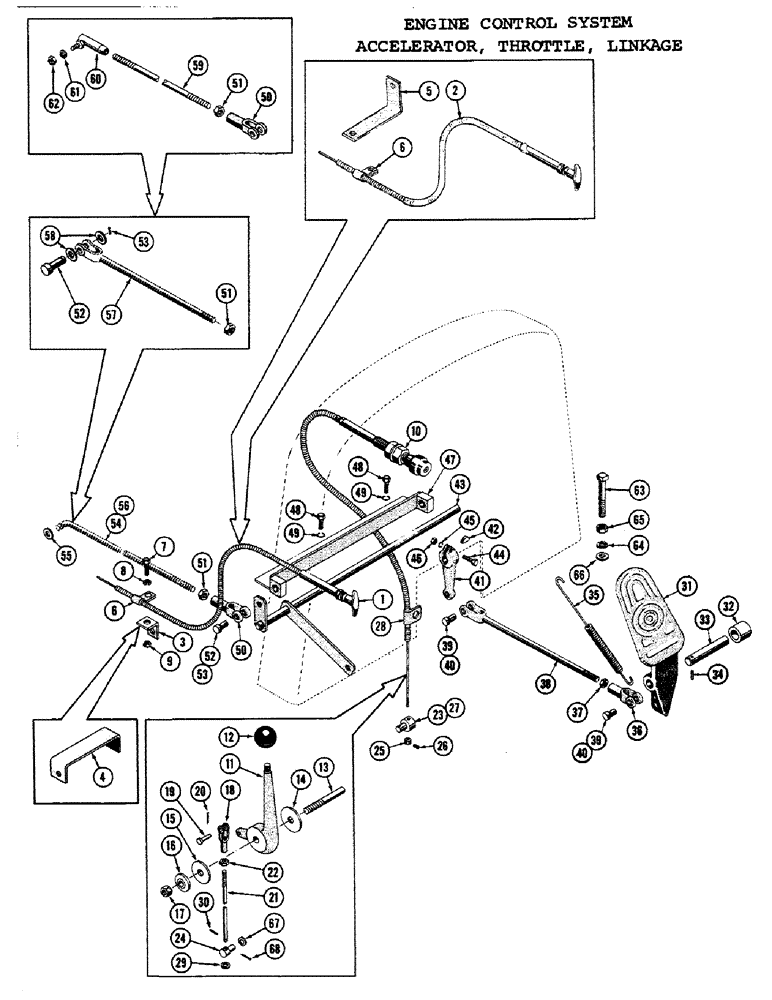

Запчасти Case 1000C (082) - ENGINE CONTROL SYSTEM, ACCELERATOR, THROTTLE, LINKAGE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

CONTROL ASS'Y. - engine shut-off (Used up to ser. #7101201) (Order ref. #2 for service)

1шт.

2

R13595

CONTROL ASS'Y. - engine shut-off (Used from ser. #7101201)

1шт.

3

71324

NUT

CLIP - shut-off support (Used up to ser. #7100828)

1шт.

4

71952

ROLL PIN

BRACKET - shut-off support (Used from ser. #7100828 and up to ser. #7101201)

1шт.

5

R12801

CLIP - shut-off support (Used from ser. #71010201)

1шт.

6

51200330

CLAMP

- tube (Shut-off mt'g.) (Used up to ser. #7101201)

1шт.

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube (Shut-off mt'g.) (Used from ser. #7101201)

1шт.

7

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49857 or 49851 mt'g.) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

10

71092

THROTTLE ASS'Y. - engine hand (Used, Serial Range: up-7-17-59)

1шт.

11

R14768

THROTTLE - hand lever (Used from 7-17-59)

1шт.

12

70213

KNOB

- hand lever (Used from 7-17-59)

1шт.

13

O5174AB

STUD - 1/2 nominal (R14768 mt'g.) (Used from 7-17-59)

1шт.

14

R15071

DISC

- friction (Used from 7-17-59)

1шт.

15

95-8

WASHER,1/2"

- plain (Used from 7-17-59) 1/2"

1шт.

16

R14771

WASHER

- Bellville (Used from 7-17-59)

1шт.

17

131-58

LOCK NUT,1/2"-20, G5

NUT - lock (1/2-20 NF) (Used from 7-17-59)

1шт.

18

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - end (Used from 7-17-59)

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (Yoke to lever mt'g.) (Used from 7-17-59) 5/16" x .940"

1шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used from 7-17-59)

1шт.

21

R14773

ROD - throttle (Used from 7-17-59)

1шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from 7-17-59)

1шт.

23

35313

PIVOT - hand throttle (Used, Serial Range: up-7-17-59)

1шт.

24

R14772

PIVOT - hand throttle (Used from 7-17-59)

1шт.

25

34823

CHAIN LINK

STOP - pivot (Used, Serial Range: up-7-17-59)

1шт.

26

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, #10-24 x 1/4 (34823 mt'g.) (Used up to 7-17-59)

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used, Serial Range: up-7-17-59)

1шт.

28

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- (71092 mt'g.) (Used up to 7-17-59)

1шт.

29

195-21

WASHER,5/16"

plain (Used from 7-17-59) 5/16"

1шт.

30

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, (R14772 mt'g.) (used from 7-17-59) 1/8" x 1/2", Slotted

1шт.

31

34828

PEDAL - accelerator

1шт.

32

R17363

SPACER - accelerator pedal (Used from ser. #7101682)

1шт.

33

R17364

SHAFT

- pedal pivot

1шт.

34

49871

X

PIN - lock (R17364 mt'g.)

1шт.

35

11469

SPRING

- accelerator pedal

1шт.

36

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

37

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

38

71045

ROD - foot pedal (Used up to ser. #7101682)

1шт.

R17284

ROD - foot pedal (Used from ser. #7101682)

1шт.

39

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

40

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (141-3 mt'g.)

2шт.

41

71394

LEVER - accelerator linkage

1шт.

42

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(71394 mtg.) #3, 1/8" x 1/2"

1шт.

43

71250

SHAFT ASS'Y. - throttle linkage

1шт.

44

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2 (71394 mt'g.)

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

47

71252

WASHER

BRACKET ASS'Y. - throttle linkage

1шт.

48

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(71252 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

52

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (213-3 mt'g.) 5/16" x .940"

2шт.

53

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (141-3 mt'g.)

2шт.

54

NSS

NOT SOLD SEPARAT

ROD - throttle (Used up to 1-10-59) (For service order, ref. #58, 59, 60 & 61)

1шт.

55

195-21

WASHER,5/16"

plain (Used up to 1-10-59) 5/16"

1шт.

56

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used, Serial Range: up-1-10-59)

1шт.

57

NSS

NOT SOLD SEPARAT

ROD - throttle (Used up to 1-10-59) (For service order, ref. #58, 59, 60 & 61)

1шт.

58

195-21

WASHER,5/16"

plain (Used up to 1-10-59) 5/16"

2шт.

59

R14510

ROD - throttle (Used from 1-10-59)

1шт.

60

R14508

BALL - joint - special type "B" (Used from 1-10-59)

1шт.

61

92-5

LOCK WASHER,5/16"

WASHER - plain (Used from 1-10-59)

1шт.

62

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from 1-10-59)

1шт.

63

181-679

SCREW - sq. hd. set, 1/2-13 NC x 2 (Used, Serial Range: up-12-1-58)

1шт.

64

92-8

LOCK WASHER,1/2"

(Used up to 12-1-58) 1/2"

1шт.

65

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (Used up to 12-1-58)

1шт.

66

195-18

WASHER,1/4"

- plain (Used up to 12-1-58)

1шт.

67

195-18

WASHER,1/4"

- plain (Used from 12-1-58)

1шт.

68

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used from 12-1-58)

1шт.
