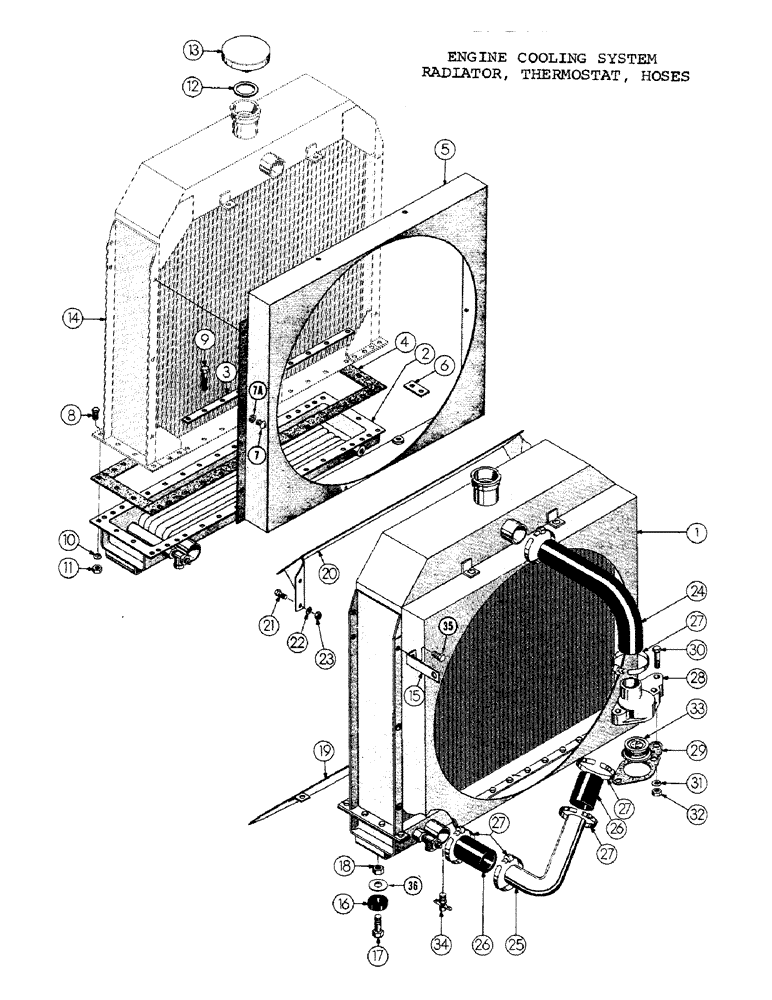

Запчасти Case 1000C (058) - ENGINE COOLING SYSTEM, RADIATOR, THERMOSTAT, HOSES (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R15925
RADIATOR ASS'Y
1шт.
2
R14419
TANK & COOLER ASS'Y - radiator bottom
1шт.
3
73597
WASHER - core
2шт.
4
N6649
STRIP-GASKET
- core
2шт.
5
73602
SHROUD ASS'Y - fan
1шт.
6
73604
CLIP - radiator shroud bottom
2шт.
7
73605
X
SCREW - shroud mtg
10шт.
7a
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
10шт.
8
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
8шт.
9
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
32шт.
10
92-5
LOCK WASHER,5/16"
40шт.
11
9635082
NUT,5/16" - 18, Gr 5
- hex (5/16-18 NC)
40шт.
12
72764
WASHER
- radiator cap
1шт.
13
A10259
CAP
- radiator
1шт.
14
R12542
CORE & TOP TANK ASS'Y
1шт.
15
71331
PLUG
ANGLE - radiator mtg. top
2шт.
16
70198
WASHER
- vibration
2шт.
17
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS - 1/2-20 NF x 2 (71275 mtg.) (45710)
2шт.
18
230-4618
LOCK NUT,1/2"-20, GA
NUT - lock (1/2-20 NF) (17586)
2шт.
19
73353
MAGNETO
BAFFLE ASS'Y - radiator bottom
1шт.
20
71294
FLEXIBLE HOSE
BAFFLE ASS'Y - radiator top
1шт.
21
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
(71294 mtg.) (45629) Hex, 5/16"-24 x 3/4", G5, Full Thd
4шт.
22
92-5
LOCK WASHER,5/16"
(48445) 5/16"
4шт.
23
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF) (48101)
4шт.
24
70628
HOSE
- radiator inlet
1шт.
25
70131
TUBE - radiator outlet
1шт.
26
70136
X
HOSE - radiator outlet
2шт.
27
49763
X
CLAMP - hose
6шт.
28
71835
INSERT
ELBOW - cylinder water outlet
1шт.
29
10673
FITTING
GASKET - water outlet elbow
1шт.
30
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
(71835 mtg.) (45059) Hex, 3/8"-16 x 1 3/4", G5
3шт.
31
92-6
LOCK WASHER,3/8"
(48446) 3/8"
3шт.
32
25-106
NUT,3/8"-16, G5
- hex (3/8-16 NC)
3шт.
33
10275
THERMOSTAT
ASS'Y
1шт.
34
217-92
COCK
- radiator water drain
1шт.
35
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
(71331 mtg.) Hex, 1/4"-20 x 3/4", G5, Full Thd
2шт.
36
51200247
WASHER
SPACER, Cover, Transmission Case
2шт.
