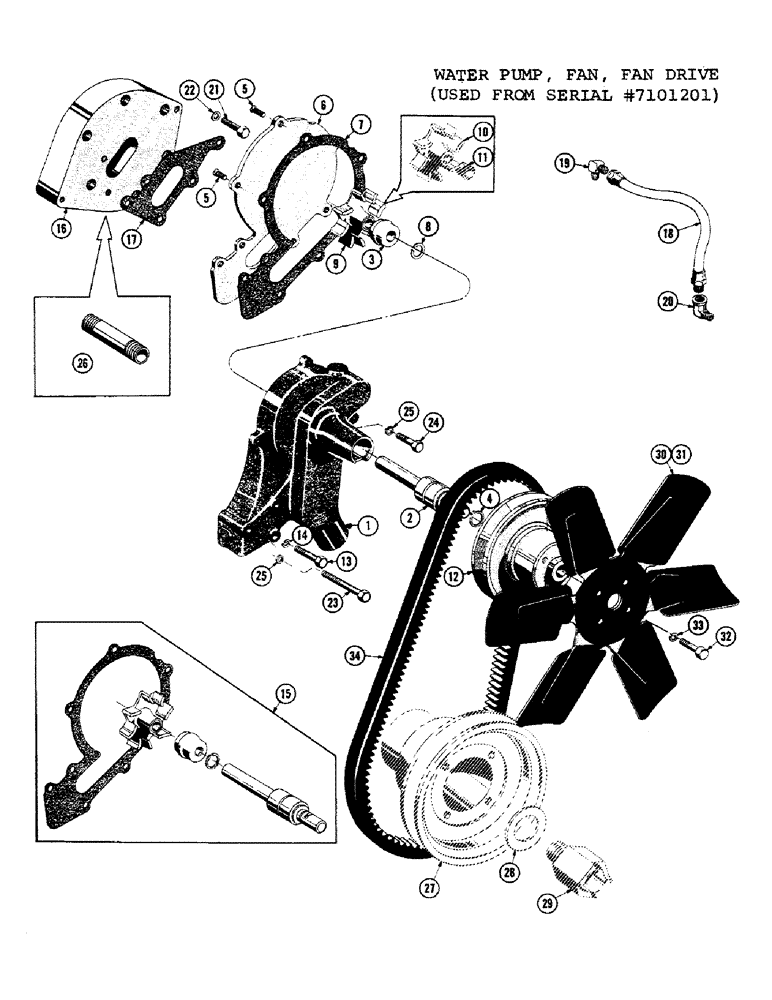

Запчасти Case 1000C (042) - WATER PUMP, FAN, FAN DRIVE, USED FROM SERIAL NUMBER 7101201 (01) - ENGINE

R13465

SPARE PART PUMP ASSY - water (Complete) (Used up to S/N 7101755)

1шт.

R17910

WATER PUMP

ASSY (Complete) (Used from S/N 7101755)

1шт.

R13887

WATER PUMP

ASSY (Used up to S/N 7101755)

1шт.

R17908

SPARE PART (Used from S/N 7101755)

1шт.

1

R13471

SPARE PART BODY - water pump

1шт.

2

R13472

X

SHAFT ASSY - water pump (Used up to S/N 7101755)

1шт.

R17912

SHAFT

ASSY - water pump (Used from S/N 7101755)

1шт.

3

10503

SEAL ASSY.

Water pump

1шт.

4

R13476

RING - snap (Used up to S/N 7101755) brg. and pulley

1шт.

R17913

RING, SNAP

RING SNAP (Used from S/N 4101755) brg. and pulley

1шт.

5

10506

SCREW -, Serial Range: cover-body

4шт.

6

70858

WASHER

COVER - water pump

1шт.

7

70860

GASKET

Water pump

1шт.

8

R13473

RING, SNAP

RING SNAP Bearing seat

1шт.

9

R13475

KIT

IMPELLER & INSERT ASSY - water pump

1шт.

10

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

11

NSS

NOT SOLD SEPARAT

INSERT - impeller

1шт.

12

R13477

HUB - water pump (Use up to S/N 7101755)

1шт.

R17911

SPARE PART HUB - water (Used from S/N 7101755)

1шт.

13

36596

SCREW - water, Serial Range: pump-adapter

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

R2584

SPARE PART REPAIR - (Used up to S/N 7101755)

1шт.

R3705

KIT

REPAIR - (used from S/N 7101755)

1шт.

16

R14404

ADAPTER - water pump

1шт.

17

70859

GASKET

SPARE PART Water, Serial Range: pump-adapter

1шт.

18

70856

HOSE

ASSY - by-pass

1шт.

19

71836

X

ELBOW - 1/2 x 3/8

1шт.

20

71837

GASKET

SPARE PART ELBOW - 90 degree street, 3/8 NP

1шт.

21

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

SCREW - 1/4-20 NC x 1-1/4 (Adapter mt'g.)

6шт.

22

71838

GASKET

1/4 copper

6шт.

23

36596

SCREW - 3/8-16 NC x 2-1/8 (Pump mt'g.)

2шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Pump mounting)

1шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

R13040

NIPPLE water pump adapter

1шт.

27

REF

INSTRUCTION

PULLEY - fan drive (On c/shaft) (See Figure 18, ref. # 19)

1шт.

28

REF

INSTRUCTION

WASHER - c/shaft starting jaw (See Figure 18, ref. # 20)

1шт.

29

REF

INSTRUCTION

JAW - c/shaft starting (See Figure 18, ref. # 21)

1шт.

30

R12782

SPARE PART Suction (Standard tractor & dozers)

1шт.

31

R12781

SPARE PART Pusher (Terraload'r)

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Fan mounting)

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

R17745

BELT

Fan

1шт.
