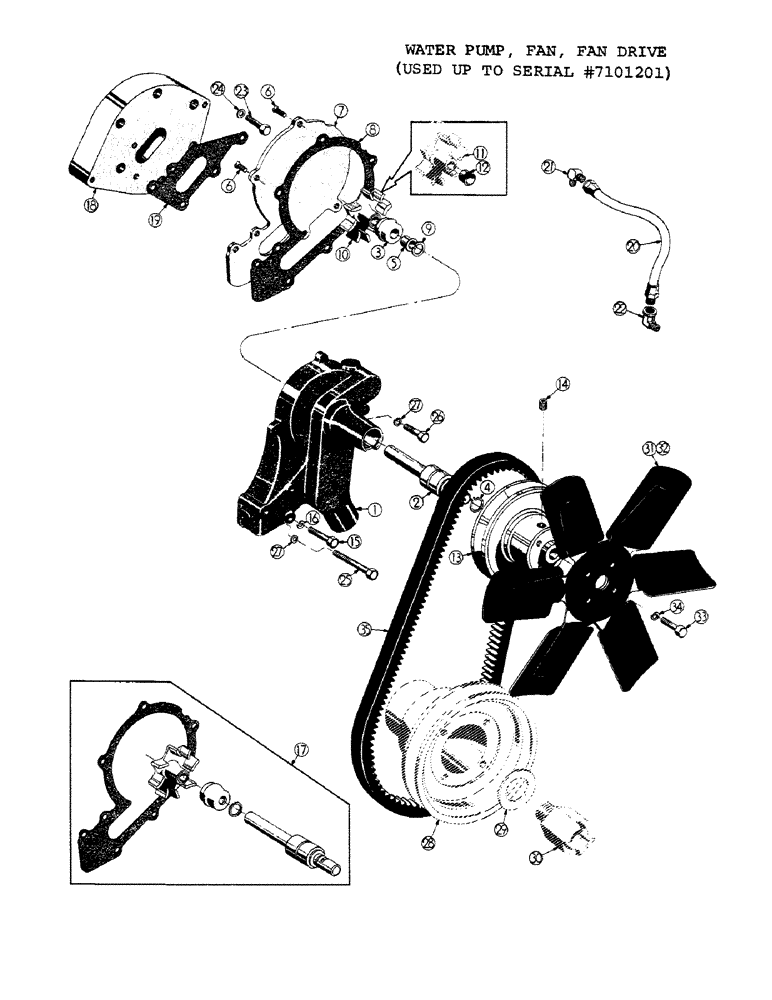

Запчасти Case 1000C (040) - WATER PUMP, FAN, FAN DRIVE, USED UP TO SERIAL NUMBER 7101201 (01) - ENGINE

73426

GASKET

SPARE PART PUMP ASSY - water

1шт.

1

70863

SPARE PART BODY - water pump

1шт.

2

33859

SHAFT

ASSY - water pump

1шт.

3

10503

SEAL ASSY.

Water pump

1шт.

4

10504

GASKET

RETAINER - bearing

1шт.

5

10505

SWITCH

SHEDDER - water

1шт.

6

10506

SCREW -, Serial Range: cover-body

4шт.

7

70858

WASHER

COVER - water pump

1шт.

8

70860

GASKET

Water pump

1шт.

9

01509

RING - bearing seat

1шт.

10

10502

SPARE PART IMPELLER & INSERT ASSY. - water pump

1шт.

11

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

12

72031

INSERT - impeller

1шт.

13

73427

INSERT

SPARE PART PULLEY - water pump

1шт.

14

33863

SCREW - set, fan hub

1шт.

15

36596

SCREW - water, Serial Range: pump-adapter

1шт.

16

92-6

LOCK WASHER,3/8"

(48446)

1шт.

17

6720

KIT

REPAIR - water pump

1шт.

18

70861

RING

ADAPTER - water, Serial Range: pump-c/case

1шт.

19

70859

GASKET

SPARE PART Water, Serial Range: pump-adapter

1шт.

20

70856

HOSE

ASSY - by pass

1шт.

21

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

1/2 x 3/8

1шт.

22

71837

GASKET

SPARE PART ELBOW - 90 degree street, 3/8 NP

1шт.

23

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

SCREW - 1/4"-20 NC (70861 mtg.)

6шт.

24

71838

GASKET

1/4 copper

6шт.

25

36596

SCREW - 3/8"-16 NC x 2-1/8 (73426 mtg.)

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(73426 mtg.) (45057)

1шт.

27

92-6

LOCK WASHER,3/8"

(48446)

3шт.

28

REF

INSTRUCTION

PULLEY - fan drive (On c/shaft) (See Figure # 18, ref.19)

1шт.

29

REF

INSTRUCTION

WASHER - c/shaft starting jaw (See Figure # 18, ref. 20)

1шт.

30

REF

INSTRUCTION

JAW - c/shat starting (See Figure # 18, ref. # 21)

1шт.

31

71236

FLEXIBLE HOSE

SPARE PART FAN - suction (Std. tractor & dozers)

1шт.

32

NLS

NO LONGER SERVICED

FAN - pusher (Terraload'r)

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Fan mtg.) (45031)

1шт.

34

92-5

LOCK WASHER,5/16"

(Fan mtg.) (48445)

1шт.

35

73430

BELT

Fan

1шт.
