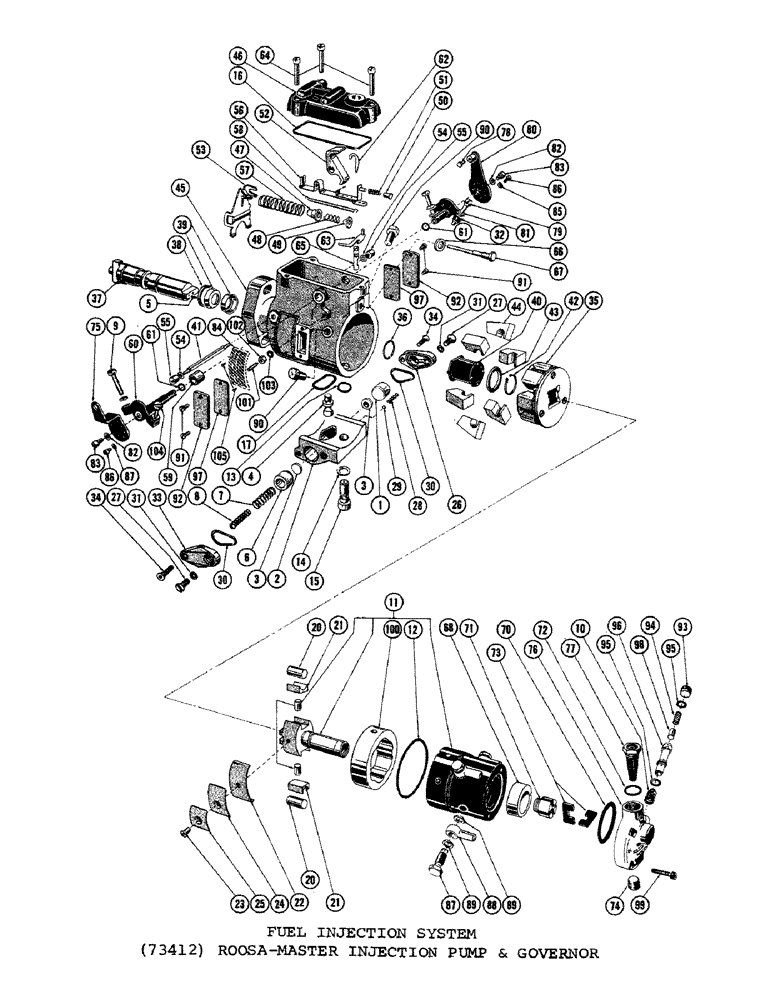

Запчасти Case 1000C (036) - FUEL INJECTION SYSTEM 73412, 73412 ROOSA-MASTER INJECTION PUMP AND GOVERNOR (01) - ENGINE

1

73689

PISTON - power (1 degree adv.)

1шт.

2

73677

HOUSING - auto advance

1шт.

3

73679

SHROUD

WASHER - slide

2шт.

4

73683

SUN VISOR

SCREW - cam advance

1шт.

5

73451

PIN - drive shaft locating

1шт.

6

NLS

NO LONGER SERVICED

PISTON - spring (6 degree adv.)

1шт.

7

73686

PANEL

SPRING - outer, advance

1шт.

8

73685

HYD CONNECTOR

SPRING - inner, advance

1шт.

9

NLS

NO LONGER SERVICED

- idler adjusting

1шт.

10

73618

SPRING - plunger retaining

1шт.

11

73515

ROTOR ASS'Y. - hyd. head & dist.

1шт.

12

73522

SCREEN

SEAL - head

1шт.

13

51200832

SEAL ASSY.

SEAL - head locating screw

1шт.

14

73675

CYLINDER BLOCK

WASHER - advance body screw

1шт.

15

73678

SHROUD

SCREW - advance body clamp

1шт.

16

73647

GASKET - governor cover

1шт.

17

73674

GROMMET

SEAL - cam hole

1шт.

18

RESERVED

1шт.

19

RESERVED

1шт.

20

73517

ROLLER - cam

2шт.

21

73516

SHOE - cam roller

2шт.

22

R19235

SPRING - main leaf

1шт.

23

73518

CUP

SCREW - leaf spring adjusting

1шт.

24

73520

SPRING - second leaf

1шт.

25

73521

SCREW

SPRING - third leaf

1шт.

26

R15707

PLATE - advance end (Power side)

1шт.

27

73681

FILTER

SCREW - stop

2шт.

28

73682

ELBOW

SPRING - ball check

1шт.

29

73680

SPARE PART

BALL - check

1шт.

30

73673

GROMMET

SEAL - auto. advance end plate

2шт.

31

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - advance stop screw

2шт.

32

73657

JET

LEVER ASS'Y. - shut-off

1шт.

33

R15708

PLATE - advance end (Spring side)

1шт.

34

73690

SCREW - advance end plate

2шт.

35

R19236

RETAINER ASS'Y. - governor weight

1шт.

36

73449

O-RING - drive shaft seal

1шт.

37

73443

SHAFT - drive

1шт.

38

73448

PISTON

WASHER - drive shaft thrust

1шт.

39

R14711

SEAL

- drive shaft

2шт.

40

73633

SLEEVE - governor thrust

1шт.

41

73655

CARBURETOR

SHAFT - governor arm pivot

1шт.

42

73660

STEEL PLATE

RING - governor cage retaining

1шт.

43

73634

WASHER - governor thrust

1шт.

44

73635

WEIGHT - governor

6шт.

45

R15693

HOUSING & PILOT TUBE ASS'Y.

1шт.

46

R15704

COVER - governor housing

1шт.

47

73654

O-RING

RETAINER - spring

1шт.

48

R11952

SPRING - idling

1шт.

49

73641

GUIDE - idling spring

1шт.

50

73664

SLEEVE - damper

1шт.

51

73665

DEFLECTOR

SPRING - damper

1шт.

52

74254

LEVER - throttle shaft

1шт.

53

R15702

ARM - governor

1шт.

54

73659

SHAFT

WASHER - pivot shaft seal

2шт.

55

73661

NUT - cap, pivot shaft

2шт.

56

R15701

HOOK ASS'Y - governor linkage

1шт.

57

73642

SPRING - governor control

1шт.

58

73638

SPRING - governor linkage

1шт.

59

73663

ELBOW

SPACER - throttle shaft lever

1шт.

60

73643

O-RING

SHAFT ASS'Y. - throttle

1шт.

61

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - shut-off shaft, throttle shaft

2шт.

62

73658

REPAIR KIT

CAM - shut-off

1шт.

63

73629

SUN VISOR

ARM ASS'Y. - metering valve

1шт.

64

73652

SCREW - cover hold down

3шт.

65

73628

VALVE - metering

1шт.

66

NLS

NO LONGER SERVICED

WASHER - guide stud

1шт.

67

73653

PIN

STUD - guide

1шт.

68

73608

LINER - transfer pump

1шт.

69

RESERVED

1шт.

70

73610

HYD CONNECTOR

SEAL - transfer pump

1шт.

71

73607

ROTOR - transfer pump

1шт.

72

51200280

SEAL

RING - filter nut seal

1шт.

73

73609

SOLENOID SWITCH

BLADE - transfer pump

2шт.

74

73627

X

PLUG - pipe, end plate

1шт.

75

73669

SUPPORT

ARM - adjustable throttle

1шт.

76

73615

PLATE ASS'Y. - plain end

1шт.

73616

PLATE - end

1шт.

73617

PIN - locating

1шт.

77

CAS73671

FILTER, ELEMENT

ELEMENT & FITTING ASS'Y. - filter

1шт.

78

73667

IGNITION SWITCH

- stop lever fitting

1шт.

79

73649

VOLTAGE REGULATOR

SCREW - throttle arm adjusting

2шт.

80

R19234

ARM ASS'Y. - adjustable shut-off

1шт.

81

51200274

NUT

- lock, adj, screw

4шт.

82

73630

LOCK WASHER

WASHER - lock, throttle arm & shut-off arm

2шт.

83

73670

SCREW

- throttle arm & shut-off arm retaining

2шт.

84

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

85

493-21017

LOCK WASHER,Int Tooth, #8

- lock, positioning screw

2шт.

86

73646

SCREW

- adjusting, throttle arm & shut-off arm pos.

2шт.

87

73613

SCREW

- fuel line connector

4шт.

88

73612

CONNECTOR, ELEC

CONNECTOR - fuel line

4шт.

89

73614

WASHER

- fuel line connector

8шт.

90

73611

SCREW - locking head

2шт.

91

51200263

SCREW

- timing line cover

4шт.

92

73452

COVER

PLATE - timing line cover

2шт.

93

73623

PLUG - end plate

1шт.

73624

PLUG - end plate, Serial Range: (Optional-73623)

1шт.

73625

PLUG - end plate, Serial Range: (Optional-73623)

1шт.

94

73622

SPRING - regulator

1шт.

95

73620

X

RING - sleeve seal

2шт.

96

73619

SLEEVE - end plate

1шт.

97

NLS

NO LONGER SERVICED

- timing line cover

2шт.

98

72621

PISTON - regulating

1шт.

99

R15698

SCREW - end plate

4шт.

100

73444

RING - cam

1шт.

101

73631

PINION

SCREW - torque

1шт.

102

73632

NUT - torque screw seal

1шт.

103

73644

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - torque screw

1шт.

104

73668

SCREW - throttle arm adjusting

1шт.

105

NSS

NOT SOLD SEPARAT

SCREW - name plate

2шт.

73447

WIRE & LEAD PLOMB - seal (Not shown)

2шт.

73691

SHIM - advance spring (Not shown)

1шт.

R3663

SEAL KIT - injection pump (Not illustrated)

1шт.
