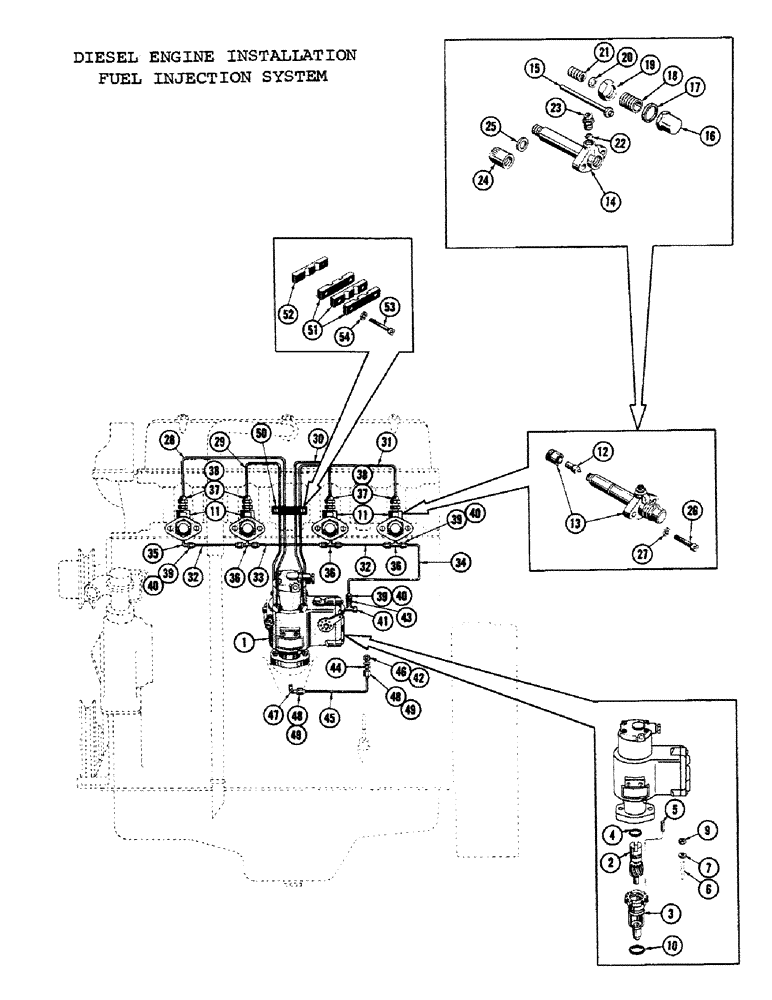

Запчасти Case 1000C (034) - DIESEL ENGINE INSTALLATION, FUEL INJECTION SYSTEM (01) - ENGINE

1

73412

ADAPTER

PUMP - fuel injection (See Figure #34 for breakdown)

1шт.

2

73409

SHAFT

SHAFT - injection pump drive

1шт.

3

R14056

X

ADAPTER - injection pump

1шт.

4

73411

SEAL

- adapter

1шт.

5

73413

SPARE PART PIN - dowel (73410 mtg.)

1шт.

6

REF

INSTRUCTION

STUD 5/16 - 18 N.C. x 2-1/8" (See Figuree # 8, ref. # 23)

2шт.

7

R13663

SPARE PART WASHER - special

2шт.

8

RESERVED

2шт.

9

131-4

LOCK NUT,5/16"-18, GB

2шт.

10

73414

SPARE PART

SEAL - injection, Serial Range: pump-block

1шт.

11

73415

BUSHING

HOLDER & TIP ASS'Y. - nozzle

4шт.

12

73416

SPARE PART TIP - nozzle

1шт.

13

71931

SPARE PART HOLDER ASS'Y. - nozzle

1шт.

14

19330

SPARE PART BODY - nozzle holder

1шт.

15

19331

SPINDLE

1шт.

16

19332

NUT - spring cap

1шт.

17

19333

SPARE PART WASHER - nozzle holder

2шт.

18

19334

NUT - adjusting, spring cap

1шт.

19

19335

NUT - lock

1шт.

20

19336

SPARE PART WASHER - nozzle holder

1шт.

21

R13084

SPARE PART SPRING - nozzle holder

1шт.

22

R13083

SPARE PART WASHER - nozzle holder

1шт.

23

19339

ROTOR

CONNECTOR - nozzle holder

1шт.

24

19340

NUT - nozzle cap

1шт.

25

19341

SPARE PART

WASHER - nozzle cap

1шт.

26

10690

NUT

SCREW - 5/16 - 18 N.C. x 1-1/2 (73415)

8шт.

27

92-5

LOCK WASHER,5/16"

(48445)

8шт.

28

73417

SPARE PART TUBE ASS'Y. - injection (# 1, Serial Range: nozzle-pump)

1шт.

29

73418

GASKET

SPARE PART TUBE ASS'Y. - injection (# 2, Serial Range: nozzle-pump)

1шт.

30

73419

GASKET

SPARE PART TUBE ASS'Y. - injection (# 3, Serial Range: nozzle-pump)

1шт.

31

73420

SPARE PART TUBE ASS'Y. - injection (# 4, Serial Range: nozzle-pump)

1шт.

32

73421

SPARE PART TUBE ASS'Y. - leak-off (# 1 to # 2 and # 3 to # 4 cylinders)

2шт.

33

73422

SPARE PART TUBE ASS'Y. - leak-off (# 2 to # 3 cylinders)

1шт.

34

73574

SPARE PART TUBE ASS'Y. - leak-off (# 4, Serial Range: cylinder-pump)

1шт.

35

30318

X

ELBOW - 3/16 flex tube

1шт.

36

30309

SPARE PART TEE - 3/16 flex tube

3шт.

37

30307

SPARE PART NUT - ermeto coupling

4шт.

38

30308

SPARE PART RING - ermeto coupling

4шт.

39

80672C1

DECAL

NUT - 3/16 flex tube

8шт.

40

30317

X

SLEEVE - 3/16 flex tube

8шт.

41

35683

TEE - street, 1/8 N.P.

1шт.

42

NLS

NO LONGER SERVICED

TEE - 1/2 JIC to 1/8 N.P.

1шт.

43

NLS

NO LONGER SERVICED

CONNECTOR - male

1шт.

44

NLS

NO LONGER SERVICED

CONNECTOR - male

1шт.

45

73424

SPARE PART TUBE - inj. pump drive lube oil

1шт.

46

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

REDUCER - 1/4 N.P. to 1/8 N.P. (41640)

1шт.

47

30318

X

ELBOW - 3/16 flex tube

1шт.

48

80672C1

DECAL

NUT - 3/16 flex tube

2шт.

49

30317

X

SLEEVE - 3/16 flex tube

2шт.

50

71864

SPARE PART CLAMP ASS'Y. - fuel injection lines

1шт.

51

30305

SPARE PART CLAMP SECTION (Drilled)

3шт.

52

30304

SPARE PART CLAMP SECTION (Tapped)

1шт.

53

71867

SCREW - 1/4 - 20 N.C. (30304 & 30305 mtg.)

2шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.
