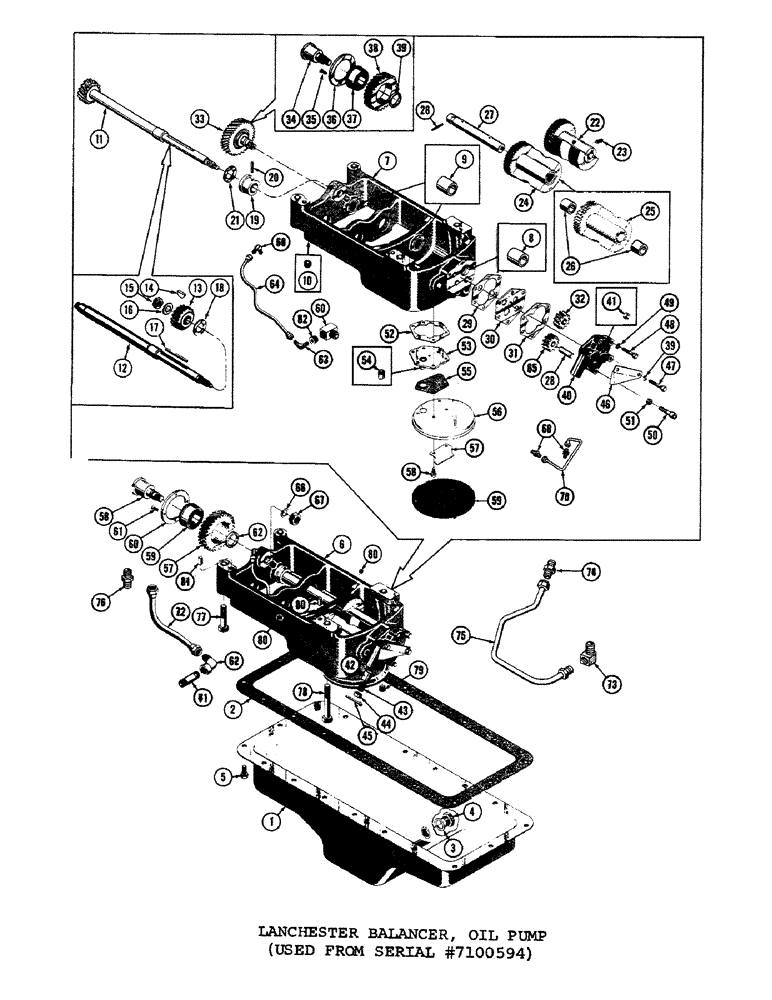

Запчасти Case 1000C (030) - LANCHESTER BALANCER, OIL PUMP, USED FROM SERIAL NUMBER 7100594 (01) - ENGINE

1

72683

SPRING

PAN ASS'Y. - crankcase oil

1шт.

2

72689

GASKET

- oil pan

1шт.

3

VT4520

X

GASKET - oil pan drain plug

1шт.

4

11579

NUT

PLUG - oil pan drain

1шт.

5

10139

SCREW & LOCKWASHER ASS'Y. - 3/8-16 NC x 1 (72683 mt'g.)

18шт.

6

R14451

BALANCER ASS'Y. - Lanchester

1шт.

7

R14527

HOUSING ASS'Y - counterweight drive

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - ctwt. drive

1шт.

8

R18666

BUSHING

1шт.

9

R14534

BUSHING

2шт.

10

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- pipe, 3/8 NP

1шт.

10a

72697

COVER

STUD - idler gear

1шт.

11

R14528

SHAFT

ASS'Y. - oil pump & ctwt drive

1шт.

12

R14538

SHAFT

- oil pump & ctwt drive

1шт.

13

R13493

GEAR

- ctwt drive shaft

1шт.

14

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

KEY - Woodruff

1шт.

15

R11701

NUT

- lock (Gear mt'g.)

1шт.

16

NLS

NO LONGER SERVICED

LOCK - nut

1шт.

17

NLS

NO LONGER SERVICED

KEY - square (Ctwt gear mt'g.)

1шт.

18

R14529

WASHER - thrust

1шт.

19

R14530

COLLAR - drive shaft

1шт.

20

R14533

X

PIN - groove, collar to drive shaft

1шт.

21

R14529

WASHER - thrust

1шт.

22

R123492

GEAR - ctwt driver

1шт.

23

73385

GEAR

SCREW - set, drive gear

2шт.

24

R14532

GEAR ASS'Y - ctwt driven

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

26

R14536

BUSHING

2шт.

27

R14531

SHAFT ASS'Y. - ctwt driven

1шт.

28

R11964

X

PIN - roll (R14531 mt'g.)

1шт.

29

NLS

NO LONGER SERVICED

- oil pump cover

1шт.

30

R11038

COVER - oil pump cover

1шт.

31

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

32

R11037

GEAR - oil pump drive

1шт.

33

R11837

GEAR & STUD ASS'Y. - idler

1шт.

34

R18668

SHAFT - idler

1шт.

35

73375

SHAFT

SCREW

4шт.

36

73373

PLATE - bearing retainer

4шт.

37

72696

BEARING - ball

1шт.

38

R13665

GEAR - idler

1шт.

39

73362

HOOD

SPACER - idler gear

1шт.

R13860

BODY ASS'Y. - oil pump

1шт.

40

R14454

BODY ASS'Y - oil pump

1шт.

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - oil pump body

1шт.

42

R13545

X

VALVE - oil pressure relief

1шт.

43

30325

SPRING - relief valve

1шт.

44

VT3221

X

RETAINER - oil relief spring

1шт.

45

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

46

73396

SHIELD - oil relief valve

1шт.

47

73398

SCREW - oil pump body

3шт.

48

73397

CABLE

SCREW - oil pump body

2шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

50

R12721

SCREW - oil pump body

1шт.

51

192-8

WASHER - lock

1шт.

52

10395

GASKET - oil inlet cover to housing

1шт.

53

73399

CLIP

COVER ASS'Y. - oil inlet

1шт.

NSS

NOT SOLD SEPARAT

COVER - oil inlet

1шт.

54

10403

TUBE - oil inlet suction

1шт.

55

10397

BUSHING

GASKET - oil inlet cover to strainer frame

1шт.

56

73400

PIN

FRAME - oil inlet strainer

1шт.

57

10393

WASHER

SPACER - oil inlet strainer

1шт.

58

11497

SCREW & LOCKWASHER ASS'Y. - (73400 mt'g.)

6шт.

59

73401

SCREEN ASS'Y. - oil strainer

1шт.

60

72685

BUSHING

TEE - 3/8 NP (Ctwt housing center)

1шт.

61

R11971

NIPPLE - pipe (72685 tee to 74232 elbow) (Not shown)

1шт.

62

74232

ELBOW - 90 degree street

1шт.

63

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

- ctwt housing to idler gear boss 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

64

72684

PLASTIC-RUBBER TUBE

TUBE ASS'Y. - ctwt. hsg. to ctwt bearing

1шт.

65

73395

GEAR - oil pump driven

1шт.

66

R11838

X

WASHER - lock, idler gear stud

1шт.

67

R11701

NUT

- hex idler gear stud

1шт.

68

R11839

CONNECTOR

2шт.

69

30204

CONNECTOR - tube ass'y. to ctwt. hsg

1шт.

70

R11836

TUBE ASS'Y. - ctwt housing to ctwt bearing

1шт.

71

73376

SHAFT

NIPPLE - pipe, 3/8 NP x 2-1/4

1шт.

72

73368

CLIP

TUBE ASS'Y. - ctwt housing to front cap

1шт.

73

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

CONNECTOR - tube to crankcase

1шт.

75

R11706

TUBE ASS'Y. - ctwt, Serial Range: housing-crankcase

1шт.

76

73369

PANEL

CONNECTOR - front bearing cap

1шт.

77

73371

X

SCREW - 5/8-11 NC x 4 (Place) (Housing, Serial Range: rear-c/case)

2шт.

78

73372

CONTROL

SCREW - 5/8-11 NC x 5-1/4 (Place) (Housing, Serial Range: front-c/case)

2шт.

79

72626

PISTON

PLUG - pipe, 1/4 NP (Front bearing cap)

1шт.

80

30395

PLUG - pipe, 1/8 NP (Ctwt drive housing)

2шт.

81

R11693

PIN - dowel, 3/8 x 3/4, Serial Range: (Housing-crankcase)

2шт.

82

74231

BUSHING - reducer (To R11970 tee)

1шт.

R11702

RING - seal (Not shown)

1шт.

R11703

NUT - (Not shown)

1шт.
