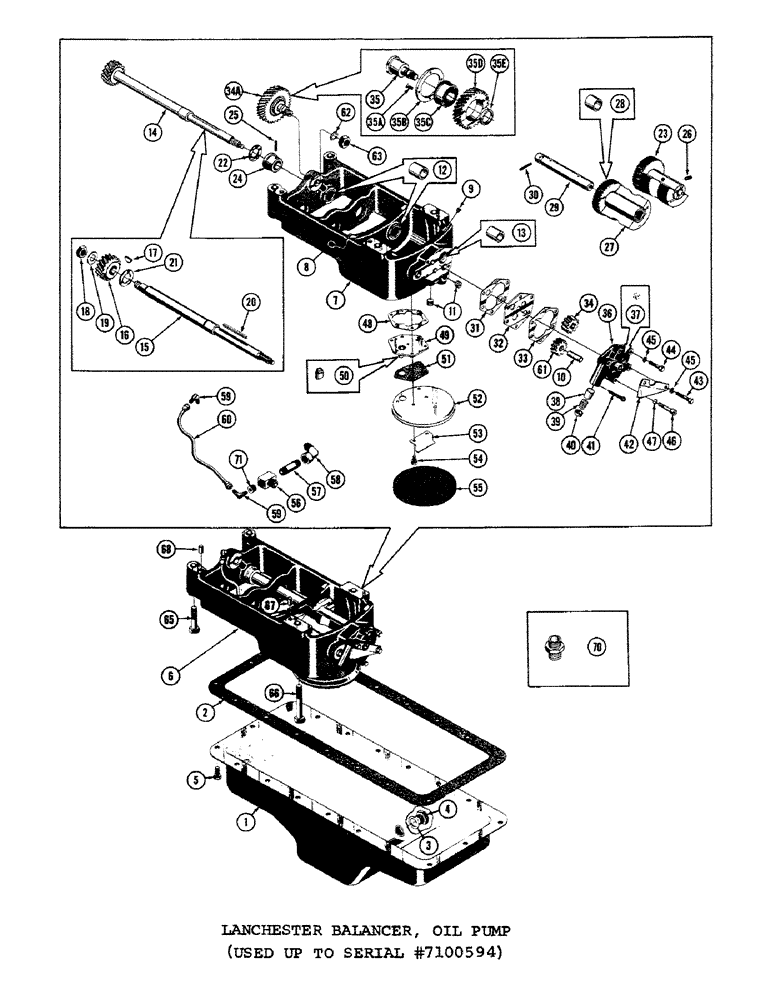

Запчасти Case 1000C (026) - LANCHESTER BALANCER, OIL PUMP, USED UP TO SERIAL NUMBER 7100594 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
72683
SPRING
PAN ASS'Y. - crankcase oil
1шт.
2
72689
GASKET
- oil pan
1шт.
3
VT4520
X
GASKET - oil pan drain plug
1шт.
4
11579
NUT
PLUG - oil pan drain
1шт.
5
10139
SCREW & LOCKWASHER ASS'Y. - 3/8-16 NC x 1 (72683 mt'g.)
18шт.
6
R14450
BALANCER ASS'Y. - Lanchester
1шт.
7
R14557
HOUSING ASS'Y. - ctwt. drive
1шт.
NSS
NOT SOLD SEPARAT
HOUSING - ctwt.
1шт.
8
30395
PLUG - pipe, 1/8 NP
1шт.
9
72626
PISTON
PLUG - pipe, 1/4 NP
1шт.
10
72697
COVER
STUD - oil pump idler gear
1шт.
11
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
- pipe 3/8 NP
2шт.
12
R14534
BUSHING
2шт.
13
R13894
BUSHING
1шт.
14
R14528
SHAFT
ASS'Y. - oil pump & ctwt drive
1шт.
15
R14538
SHAFT
- oil pump & ctwt drive
1шт.
16
R13493
GEAR
- ctwt. drive shaft
1шт.
17
73365
LEVER
KEY - Woodruff
1шт.
18
R11701
NUT
- lock (Gear mt'g.)
1шт.
19
NLS
NO LONGER SERVICED
LOCK - nut
1шт.
20
NLS
NO LONGER SERVICED
KEY - square (Ctwt. gear mt'g.)
1шт.
21
R14529
WASHER - thrust
1шт.
22
R14529
WASHER - thrust
1шт.
23
R13492
GEAR
- ctwt. driver
1шт.
24
R14530
COLLAR - drive shaft
1шт.
25
R14533
X
PIN - groove, collar to drive shaft
1шт.
26
73385
GEAR
SCREW - set, drive gear
2шт.
27
R14532
GEAR ASS'Y. - ctwt. driven
1шт.
NSS
NOT SOLD SEPARAT
GEAR - driven
1шт.
28
R14536
BUSHING
2шт.
29
R14531
SHAFT ASS'Y. - ctwt driven
1шт.
30
R11964
X
PIN - roll (R14531 mt'g.)
1шт.
31
NLS
NO LONGER SERVICED
GASKET - oil pump cover
1шт.
32
R11038
COVER - oil pump body
1шт.
33
73392
GASKET - oil pump, Serial Range: body-cover
1шт.
34
R11037
GEAR - oil pump drive
1шт.
34a
R20485
GEAR & STUD ASS'Y. - idler
1шт.
35
R18668
SHAFT - idler
1шт.
35a
73375
SHAFT
SCREW
4шт.
35b
73373
PLATE - bearing retainer
1шт.
35c
72696
BEARING - ball
1шт.
35d
R13665
GEAR - idler
1шт.
35e
73362
HOOD
SPACER - idler gear
1шт.
R13860
BODY ASS'Y. - oil pump
1шт.
36
R14454
BODY ASS'Y. - oil pump
1шт.
NSS
NOT SOLD SEPARAT
BODY - oil pump
1шт.
37
NSS
NOT SOLD SEPARAT
BUSHING - oil pump body
1шт.
38
R13545
X
VALVE - oil pressure relief
1шт.
39
30325
SPRING - relief valve
1шт.
40
VT3221
X
RETAINER - oil relief spring
1шт.
41
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
42
73396
SHIELD - oil relief valve
1шт.
43
73398
SCREW - oil pump body
3шт.
44
73397
CABLE
SCREW - oil pump body
2шт.
45
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
46
R12721
SCREW - oil pump body
1шт.
47
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
48
10395
GASKET - oil inlet cover to housing
1шт.
49
73399
CLIP
COVER ASS'Y. - oil inlet
1шт.
NSS
NOT SOLD SEPARAT
COVER - oil inlet
1шт.
50
10403
TUBE - oil inlet suction
1шт.
51
10397
BUSHING
GASKET - oil inlet cover to strainer frame
1шт.
52
73400
PIN
FRAME - oil inlet strainer
1шт.
53
10398
SPACER - oil inlet strainer
1шт.
54
11497
SCREW & LOCKWASHER ASS'Y. - (73400 mt'g.)
6шт.
55
NLS
NO LONGER SERVICED
SCREEN ASS'Y. - oil strainer
1шт.
56
72685
BUSHING
TEE - 3/8 NP (Ctwt housing center)
1шт.
57
R11971
NIPPLE - pipe (72865 tee to 74232 elbow)
1шт.
58
74232
ELBOW - 90 degree street
1шт.
59
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
- ctwt. housing to idler gear boss 90º, 7/16"-20, 45º Fl x 1/8" NPT
2шт.
60
72684
PLASTIC-RUBBER TUBE
TUBE ASS'Y
1шт.
61
73395
GEAR - oil pump driven
1шт.
62
R11838
X
WASHER - lock, idler gear stud
1шт.
63
R11701
NUT
- hex, idler gear stud
1шт.
64
73368
CLIP
TUBE ASS'Y. - housing to front cap (Not shown)
1шт.
65
73371
X
SCREW - 5/8-11 NC x 4 (R14450 mt'g.)
2шт.
66
13-1084
BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5
SCREW - 5/8-11 NC x 5-1/4
2шт.
67
30233
PIN - dowel (Ctwt housing front)
1шт.
68
30233
PIN - dowel (Ctwt housing)
1шт.
69
221-413
ELBOW,90 Degree, 3/8"-18, NPT
- 90 degree street, 3/8 NP (To front bearing cap) (Not shown)
1шт.
70
73369
PANEL
CONNECTOR - (To 221-413)
1шт.
71
74231
BUSHING - reducing
1шт.
Выбрано товаров: 82
