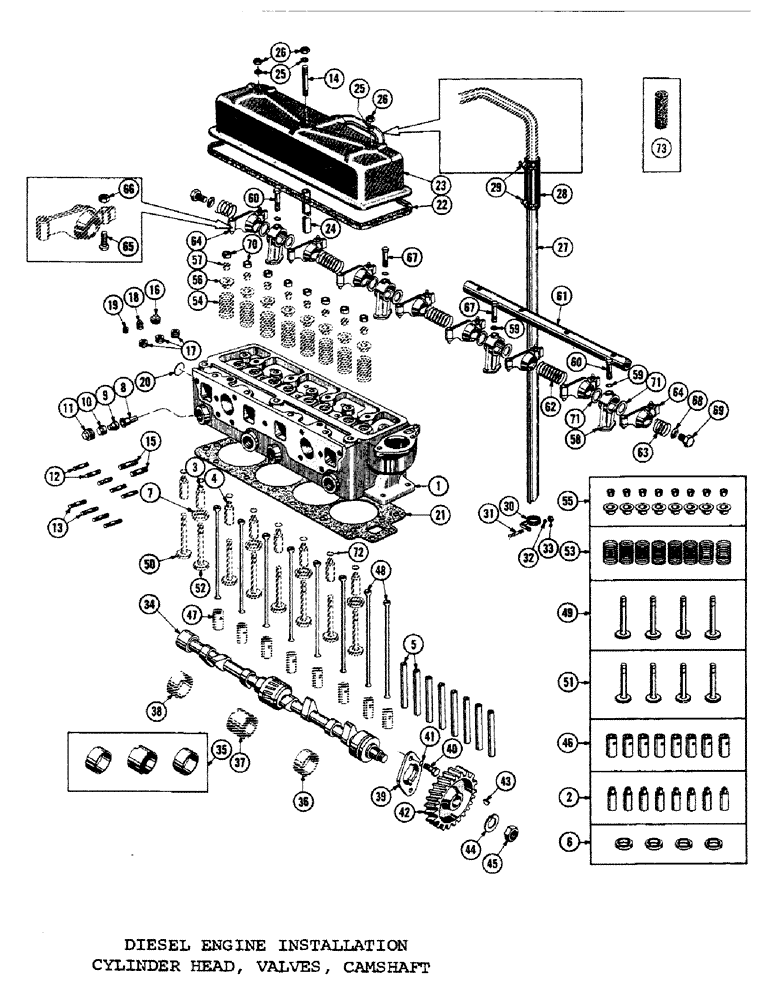

Запчасти Case 1000C (022) - DIESEL ENGINE INSTALLATION, CYLINDER HEAD, VALVES, CAMSHAFT (01) - ENGINE

1

72633

SCREEN

SPARE PART HEAD ASSY - cylinder (Stripped) (Used up to S/N 7101438)

1шт.

R15756

X

HEAD ASSY - cylinder (Stripped) (Used from S/N 7101438)

1шт.

73454

X

HEAD ASSY - cylinder (With valves) (Optional to 72633) (Used up to S/N 7101438)

1шт.

R15757

X

HEAD ASSY - cylinder (With valves) (Optional to R15756) (Used from S/N 7101438)

1шт.

2

6745

FITTING

GUIDE KIT - valve

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem

4шт.

4

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem

4шт.

5

11134

O-RING

Push rod

8шт.

6

R2260

SPARE PART Exhaust valve seat

1шт.

7

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat

4шт.

8

R11831

SPARE PART ASSY - energy cell

4шт.

9

72638

SPARE PART Energy

4шт.

10

72639

SPARE PART Energy cell

4шт.

11

72640

WASHER

PLUG - energy cell retainer

4шт.

12

10697

FITTING

3/8-16 NC x 1-7/8 (Manifold to cyl. head)

5шт.

13

NLS

NO LONGER SERVICED

STUD - 3/8-16 NC x 2-1/4 (Manifold to cyl. head)

4шт.

14

11159

SPARE PART 3/8-16 NC x 5-1/2 (72674 mt'g.)

1шт.

15

30166

SPARE PART 3/8-16 NC x 2 (Manifold to cyl. head)

2шт.

16

30395

PLUG - pipe (Oil hole in head)

1шт.

17

10772

LOCK WASHER

PLUG - 3/4 NP pipe (Clamp outlet holes in head)

3шт.

18

221-13

PLUG,Sq Hd, 3/8"-18

3/8 NP pipe (Rear of cyl. head)

1шт.

19

30011

X

PLUG - 1/8 NP fuse (Cyl. head)

1шт.

20

10775

LOCK WASHER

Core hole (Cyl. head)

1шт.

21

72686

X

GASKET - cylinder, Serial Range: head-c/case

1шт.

22

72691

CYLINDER HEAD GASKET

Valve cover to cyl. head

1шт.

23

NLS

NO LONGER SERVICED

COVER ASSY - valve

1шт.

24

11125

COTTER PIN

SPACER - valve cover

1шт.

25

30257

GASKET

Valve cover studs

3шт.

26

9635082

NUT,5/16" - 18, Gr 5

Hex (5/16-18 NC) (72674 mt'g.)

3шт.

27

R17264

TUBE - road draft

1шт.

28

72677

SLEEVE

SPARE PART HOSE - road draft tube

1шт.

29

72679

CLAMP - hose, road draft tube

2шт.

30

72682

CLIP - road draft tube

1шт.

31

REF

INSTRUCTION

STUD - (72682 mt'g.) (See Figure 8, ref. 25)

1шт.

32

92-6

LOCK WASHER,3/8"

WASHER - lock (72682 mt'g.)

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

(72682 mt'g.)

1шт.

34

72664

SPARE PART

1шт.

35

NLS

NO LONGER SERVICED

BUSHING KIT - camshaft

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - camshaft front

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - camshaft center

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - camshaft rear

1шт.

39

NLS

NO LONGER SERVICED

Camshaft thrust

1шт.

40

11588

NUT

SCREW - 3/8-16 NC x 7/8 (11587 mt'g.)

2шт.

41

48526

X

WASHER - lock (11587 mt'g.)

2шт.

42

72665

GEAR - camshaft timing (Standard)

1шт.

R16641

GEAR - camshaft timing (.003 undersize)

1шт.

R16640

GEAR - camshaft timing (.002 undersize)

1шт.

R16639

GEAR - camshaft timing (.001 undersize)

1шт.

R16636

GEAR - camshaft timing (.001 oversize)

1шт.

R16637

GEAR - camshaft timing (.002 oversize)

1шт.

R16638

GEAR - camshaft timing (.003 oversize)

1шт.

43

10776

LOCK WASHER

KEY - Woodruff (Timing gear)

1шт.

44

10447

SEALING RING COLLAR

LOCK, camshaft timing gear

1шт.

45

10718

FITTING

NUT - camshaft timing gear

1шт.

46

6742

TEE

TAPPET KIT - valve

1шт.

47

NSS

NOT SOLD SEPARAT

TAPPET - valve

8шт.

48

72670

SPARE PART Valve

8шт.

49

6733

SPARE PART Intake

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - intake

4шт.

51

6736

SPINDLE

Exhaust

1шт.

52

NSS

NOT SOLD SEPARAT

VALVE - exhaust

4шт.

53

6738

SPRING KIT

Valve

1шт.

54

6740

HYDRAULIC CYLINDER

SPRING - valve

8шт.

55

6740

HYDRAULIC CYLINDER

SEAT & LOCK KIT - valve

2шт.

56

NSS

NOT SOLD SEPARAT

RETAINER - valve spring

4шт.

57

NSS

NOT SOLD SEPARAT

LOCK - valve spring retaining

8шт.
