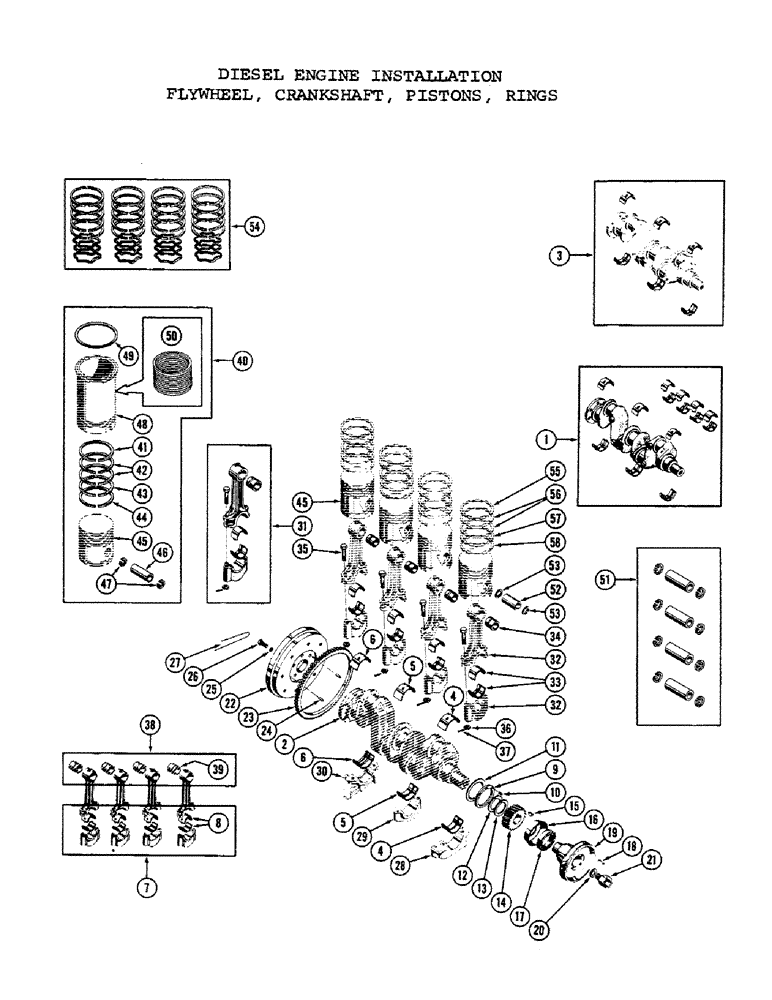

Запчасти Case 1000C (018) - DIESEL ENGINE INSTALLATION, FLYWHEEL, CRANKSHAFT, PISTONS, RINGS (01) - ENGINE

1

6725

CRANKSHAFT & BEARING ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

3

R2525

SPARE PART BEARING KIT - main (Standard)

1шт.

R3209

SPARE PART BEARING KIT - main (.002 undersize) (Optional)

1шт.

4

72643

SPARE PART ASSY - front main (Upper & lower) (Standard)

1шт.

R3223

BEARING

ASSY - front main (Upper & lower) (.002 undersize) (Optional)

15шт.

R13238

SPARE PART BEARING ASSY - center main (Upper & lower) (Standard)

1шт.

R3224

SPARE PART BEARING ASSY - center main (Upper & lower) (.002 undersize) (Optional)

1шт.

6

72645

SPARE PART ASSY - rear main (Upper & lower) (Standard)

1шт.

R3225

SPARE PART ASSY - rear main (Upper & lower) (.002 undersize) (Optional)

1шт.

7

6703

KIT

BEARING - connecting rod (Standard)

1шт.

6704

VALVE

BEARING KIT - connecting rod (.002 undersize) (Optional)

1шт.

8

R3267

BEARING

ASSY - connecting rod (Upper & lower) (Standard)

4шт.

R3272

SPARE PART ASSY - connecting rod (Upper & lower) (.002 undersize) (Optional)

4шт.

9

72631

SPARE PART c/shaft thrust (Rear)

1шт.

10

REF

INSTRUCTION

PIN - dowel, rear thrust washer (See Figure 8, ref. 43)

1шт.

11

11293

BALL BEARING

c/shaft thrust (Front)

1шт.

12

72646

SPARE PART c/shaft thrust (.002)

1шт.

13

72648

SPARE PART c/shaft thrust (.008)

1шт.

14

72666

SPARE PART GEAR - c/shaft timing (Used up to S/N 7101201)

1шт.

R13664

SPARE PART c/shaft timing (Standard) (Used from S/N 7101201)

1шт.

R16617

GEAR - c/shaft timing (.003 undersize), Serial Range: (Optional-R13664)

1шт.

R16616

GEAR - c/shaft timing (.002 undersize), Serial Range: (Optional-R13664)

1шт.

R16615

GEAR - c/shaft timing (.001 undersize), Serial Range: (Optional-R13664)

1шт.

R16612

GEAR - c/shaft timing (.001 oversize), Serial Range: (Optional-R13664)

1шт.

R16613

GEAR - c/shaft timing (.002 oversize), Serial Range: (Optional-R13664)

1шт.

R16614

GEAR - c/shaft timing (.003 oversize), Serial Range: (Optional-R13664)

1шт.

15

10777

LOCK WASHER

KEY - Woodruff (Timing gear)

1шт.

16

11111

WEDGE

THROWER - c/shaft oil

1шт.

17

10681

PIPE FITTING

Dust, fan drive pulley

1шт.

18

11170

PLUG - c/shaft pulley key way

1шт.

19

73429

MUFFLER

SPARE PART PULLEY - fan drive

1шт.

20

10734

ELEC CONNECTOR

WASHER - c/shaft starting jaw

1шт.

21

10449

SEALING RING COLLAR

JAW - c/shaft starting

1шт.

22

R14448

SPARE PART FLYWHEEL ASSY - (Used up to S/N 7101438)

1шт.

R16439

FLYWHEEL ASSY - (Used from S/N 7101438)

1шт.

23

33835

GEAR WHEEL

Ring

1шт.

R15815

PIN - locating (Not shown)

1шт.

24

73403

PIN - dowel (73402 mt'g.)

2шт.

25

10130

X

LOCK WASHER WASHER - lock (73402 mt'g.)

6шт.

26

73404

VALVE, EXHAUST, OVER

SPARE PART SCREW - 5/3-18 NF x 1-5/8 (73402 mt'g.)

6шт.

27

72700

SPARE PART

WIRE - lock 18" long

1шт.

28

REF

INSTRUCTION

CAP - c/shaft front bearing (See Figure 8, ref. 5)

1шт.

29

REF

INSTRUCTION

CAP - c/shaft center bearing (See Figure 8, ref. 6)

1шт.

30

REF

INSTRUCTION

CAP - c/shaft rear bearing (See Figure 8, ref. 7)

1шт.

31

72649

EXCHANGE CONROD

ROD ASSY - connecting

4шт.

32

NSS

NOT SOLD SEPARAT

ROD & CAP - connecting

1шт.

33

REF

INSTRUCTION

BEARING - connecting (See ref. 7)

2шт.

34

REF

INSTRUCTION

BUSHING - piston pin (See ref. 38)

1шт.

35

72692

SPARE PART Connecting rod

2шт.

36

72694

BOLT

SPARE PART NUT - connecting rod

2шт.

37

72698

SPARE PART PIN - connecting rod bolt

2шт.

38

6716

RING

KIT - piston pin

1шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - piston pin

4шт.

40

6753

PISTON

KIT - piston & cylinder liner (With rings)

1шт.

17487

STRAP

CYLINDER LINER & PISTON ASSY

4шт.

41

REF

INSTRUCTION

RING - piston (First groove) (See ref. 54)

1шт.

42

REF

INSTRUCTION

RING - piston (Second & third grooves) (See ref.54)

2шт.

43

REF

INSTRUCTION

RING - piston (Fourth groove) (See ref.54)

1шт.

44

REF

INSTRUCTION

RING - piston (Fifth groove) (See ref.54)

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON

1шт.

46

REF

INSTRUCTION

PIN - piston (See ref.51)

1шт.

47

REF

INSTRUCTION

RING - piston pin retaining (See ref.53)

2шт.

48

NSS

NOT SOLD SEPARAT

LINER - cylinder

1шт.

49

72687

BEARING

SPARE PART PACKING - cylinder liner

2шт.

50

17485

COVER

SHIM - cylinder liner

1шт.

51

6756

TEE

KIT - piston pin (Standard)

1шт.

R3332

KIT - piston pin (.003 oversize)

1шт.

R3333

KIT - piston pin (.005 oversize)

1шт.

52

72678

PIN - piston (Standard)

4шт.

R16964

SPARE PART PIN - piston (.003 oversize)

4шт.

R16965

SPARE PART PIN - piston (.005 oversize)

4шт.

53

72681

RING - piston pin retaining

8шт.

54

6696

RING

KIT - piston (2 in 1)

1шт.

55

NSS

NOT SOLD SEPARAT

RING - piston (First groove)

4шт.

56

NSS

NOT SOLD SEPARAT

RING - piston (Second & third grooves)

8шт.

57

NSS

NOT SOLD SEPARAT

RING - piston (Fourth groove)

4шт.

58

NSS

NOT SOLD SEPARAT

RING - piston (Fifth groove)

4шт.
