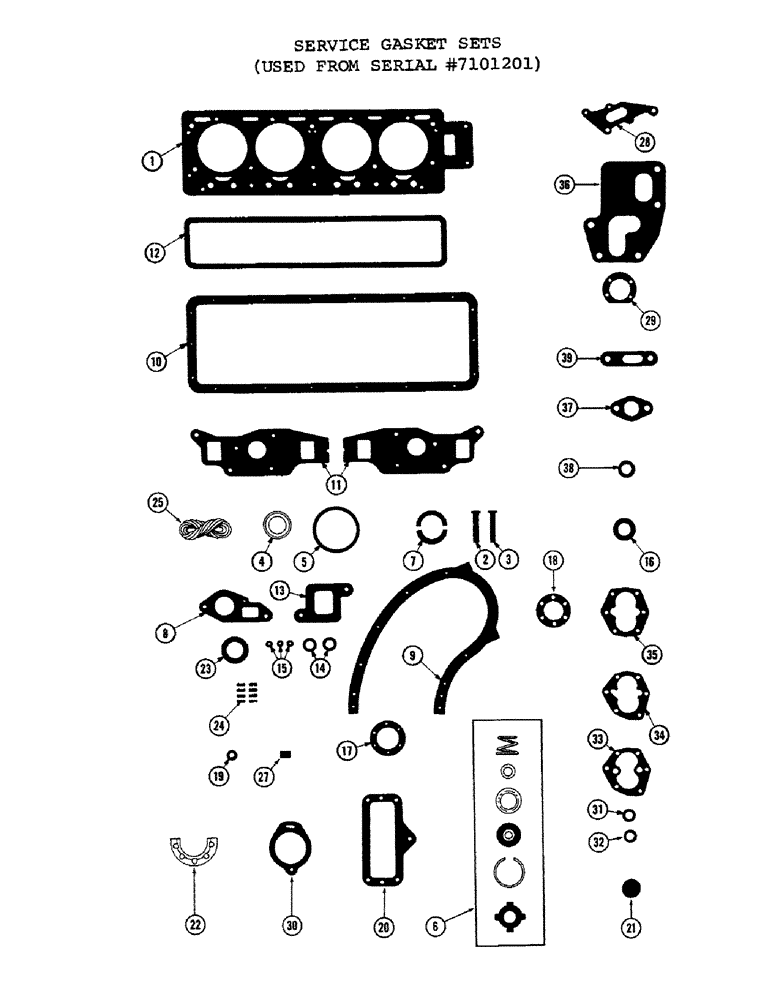

Запчасти Case 1000C (014) - SERVICE GASKET SETS, USED FROM SERIAL NUMBER 7101201 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
R2786
GASKET SET - service
1шт.
1
72686
X
GASKET - cylinder head
1шт.
2
11150
SEAL
- side, rear br'g. filler block, RH
1шт.
3
11149
SEAL
- side, rear br'g. filler block, LH
1шт.
4
10670
FITTING
SEAL - oil, c/shaft front end
1шт.
5
72687
BEARING
PACKING - cylinder liner
8шт.
6
30045
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
SEAL ASS'Y. - water pump
1шт.
7
11143
BALL
- oil, c/shaft rear
2шт.
8
10673
FITTING
GASKET - water outlet elbow
1шт.
9
72688
GASKET - gear, Serial Range: cover-c/case
1шт.
10
72689
GASKET
- oil pan
1шт.
11
17483
GASKET
- manifold
2шт.
12
72691
CYLINDER HEAD GASKET
- cylinder head cover
1шт.
13
10679
PIPE FITTING
GASKET - water inlet elbow
1шт.
14
30259
NUT
- copper, rocker arm shaft plug
2шт.
15
30257
GASKET
- copper, cylinder head cover studs
3шт.
16
71847
SEAL
WASHER - felt, oil strainer tube
1шт.
17
10680
PIPE FITTING
GASKET - water pump drive support
1шт.
18
33849
GASKET - hand hole cover
2шт.
19
VT4520
X
GASKET - oil pan drain plug
1шт.
20
10217
GASKET - gear cover lid
1шт.
21
10134
FELT - flywheel pointer cover
1шт.
22
R11933
RETAINER - c/shaft rear oil seal
1шт.
23
10681
PIPE FITTING
SEAL - dust, fan drive pulley
1шт.
24
R11931
WICK - oil, rocker arm
8шт.
25
30074
X
PACKING, rear bearing filler block (10 ft.)
1шт.
26
RESERVED
1шт.
27
11170
PLUG - c/shaft pulley
1шт.
28
70859
GASKET
- water pump adapter
1шт.
29
30072
GASKET - magneto adapter hole cover
1шт.
31
NLS
NO LONGER SERVICED
SEAL - adapter
1шт.
32
73414
SPARE PART
SEAL - injection, Serial Range: pump-block
1шт.
33
NLS
NO LONGER SERVICED
- oil pump cover
1шт.
34
73392
GASKET - oil pump cover
1шт.
35
10395
GASKET - oil inlet cover to housing
1шт.
36
R14455
GASKET - oil cooler base to c/case
1шт.
37
R14456
GASKET
- elbow to oil cooler
2шт.
38
10424
HARNESS
GASKET - by-pass valve plug
1шт.
39
R14457
GASKET - oil, Serial Range: cooler-base
2шт.
Выбрано товаров: 40
