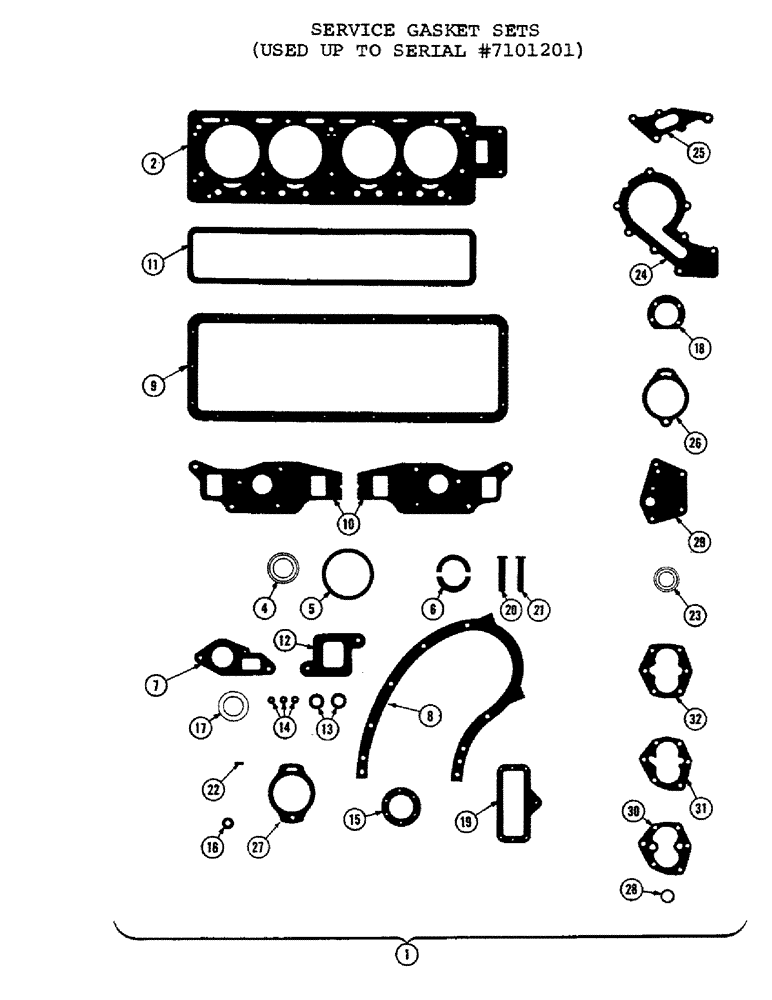

Запчасти Case 1000C (012) - SERVICE GASKET SETS, USED UP TO SERIAL NUMBER 7101201 (01) - ENGINE

1

6719

SEAL

GASKET KIT

1шт.

2

72686

X

GASKET - cylinder head

1шт.

3

RESERVED

1шт.

4

10670

FITTING

SEAL - c/shaft oil & dust

1шт.

5

72687

BEARING

PACKING - cylinder liner

8шт.

6

D52296

SEAL

- c/shaft rear oil

2шт.

7

10673

FITTING

GASKET - water outlet

1шт.

8

72688

GASKET - gear cover

1шт.

9

72689

GASKET

- oil pan

1шт.

10

17483

GASKET

- manifold

2шт.

11

72691

CYLINDER HEAD GASKET

- cylinder head cover

1шт.

12

10679

PIPE FITTING

GASKET - water inlet elbow

1шт.

13

30259

NUT

- rocker arm shaft plug

2шт.

14

30257

GASKET

- cyl. head cover studs

3шт.

15

10680

PIPE FITTING

GASKET - water pump drive support

1шт.

16

VT4520

X

GASKET - oil pan drain plug

1шт.

17

10681

PIPE FITTING

SEAL - fan drive pulley dust

1шт.

18

30072

GASKET - adapter to gear cover

1шт.

19

30070

PULLEY

GASKET - inj. pump adapter

1шт.

20

11149

SEAL

- filler block to c/case - L.H. side

1шт.

21

11150

SEAL

- filler block to c/case - R.H. side

1шт.

22

11170

PLUG - c/shaft pulley keyway

1шт.

23

10503

SEAL ASSY.

SEAL - water pump

1шт.

24

70860

GASKET

- water pump cover

1шт.

25

70859

GASKET

- water pump adapter

1шт.

26

10324

X

GASKET - magneto hole cover

1шт.

27

10480

GASKET - hyd., Serial Range: pump-adapter

1шт.

28

73414

SPARE PART

SEAL - injection pump

1шт.

29

10397

BUSHING

GASKET - oil inlet cover to strainer frame

1шт.

30

NLS

NO LONGER SERVICED

GASKET - oil pump cover to ctwt. housing

1шт.

31

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

32

10395

GASKET - oil inlet cover to housing

1шт.
