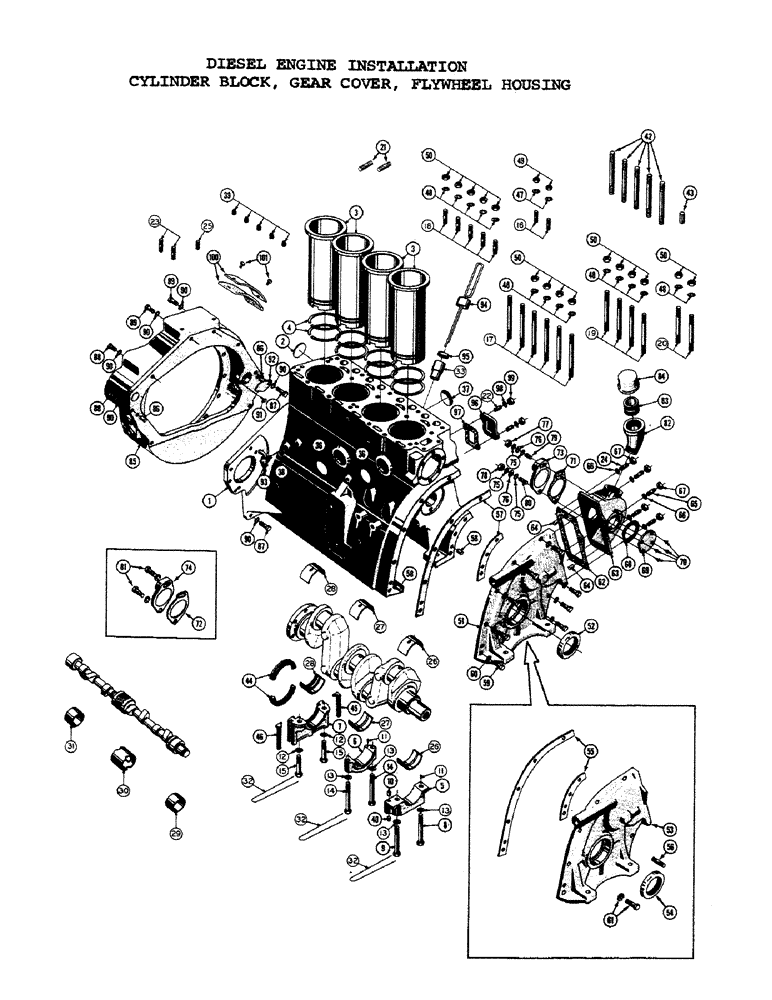

Запчасти Case 1000C (008) - DIESEL ENGINE INSTALLATION, CYLINDER BLOCK, GEAR COVER, FLYWHEEL HOUSING (01) - ENGINE

1

72630

CYLINDER & CRANKCASE ASS'Y. - (With valves) (Optional to 72629) (Used up to S/N 7100594)

1шт.

R14828

SPARE PART CYLINDER & CRANKCASE ASS'Y. - (With valves) (Optional to R14829) (Used from S/N 7100594)

1шт.

R14667

SPARE PART CYLINDER & CRANKCASE ASS'Y. - (With valves) (Optional to R14829) (Used from S/N 7101201)

1шт.

72629

CARBURETOR

CYLINDER & CRANKCASE ASS'Y. - (Stripped) (Used up to S/N 7100594)

1шт.

R14829

SPARE PART CYLINDER & CRANKCASE ASS'Y. - (Stripped) (Used from S/N 7100594)

1шт.

2

41-32

PLUG,Exp, 2"

4шт.

3

REF

INSTRUCTION

LINER - cylinder (See Figure 18, ref. 40)

4шт.

4

REF

INSTRUCTION

PACKING - cylinder (See Figure 20, ref. 49)

8шт.

5

72632

CAP - c/shaft front bearing

1шт.

6

72634

SPARE PART c/shaft center bearing

1шт.

7

72628

REPAIR KIT

CAP & FILLER BLOCK - c/shaft rear bearing

1шт.

8

11154

HARNESS

5/8-11 NC x 3-1/4 (72632 mt'g.)

1шт.

9

72623

PIN

SPARE PART SCREW - 5/8-11 NC x 4 (72632 mt'g.)

1шт.

10

10294

BUSHING

DOWEL - ring (72632 mt'g.)

1шт.

11

30271

SPARE PART Dowel (Bearing, Serial Range: caps-c/case)

5шт.

12

71818

SPARE PART Plain (72628 mt'g.)

2шт.

13

71819

GEAR

SPARE PART WASHER - plain (72632 & 72634 mt'g.)

4шт.

14

11154

HARNESS

5/8-11 NC x 4-1/2 (72634 mt'g.)

2шт.

15

11155

CABLE

5/8-11 NC x 3-1/4 (72628 mt'g.)

2шт.

16

10089

HEAD

STUD - 3/8-16 NC x 1-11/16 (Cylinder, Serial Range: head-c/case)

2шт.

17

11157

SPARE PART 9/16-12/18 x 7-1/4 (Cylinder, Serial Range: head-c/case)

6шт.

18

71918

SPARE PART 9/16-12/18 x 2 (Cylinder, Serial Range: head-c/case)

5шт.

19

11162

SPARE PART STUD 9/16-12/18 x 7-1/8 (Cylinder, Serial Range: head-c/case)

4шт.

20

71861

SPARE PART 9/16-12/18 x 6-13/16 (Cylinder, Serial Range: head-c/case)

2шт.

21

VT4508

SPARE PART STUD 3/8-16 NC x 1-1/4 (Generator bracket to c/case) (Used up to S/N 7100594)

2шт.

R15761

STUD - 1/2-13 NC x 2 (Generator bracket to c/case) (Used from S/N 7100594)

2шт.

22

10077

X

STUD - 3/8-16 NC x 1-3/8 (Water inlet, Serial Range: elbow-c/case)

2шт.

23

10552

BOOM

STUD - 5/16-18 NC x 2-1/8 (Injection, Serial Range: pump-c/case)

2шт.

24

VT3675

X

STUD 3/8-16 NC x 1-1/2, Serial Range: (Adapter-c/case)

2шт.

25

30333

SPARE PART STUD 5/16-18 NC x 1-1/8 (Road draft tube mt'g.)

1шт.

26

REF

INSTRUCTION

BEARING ASSY - front main (See Figure 18, ref.4)

1шт.

27

REF

INSTRUCTION

BEARING ASSY - center main (See Figure 18, ref. 5)

1шт.

28

REF

INSTRUCTION

BEARING ASSY - rear main (See Figure 18, ref. 6)

1шт.

29

REF

INSTRUCTION

BUSHING - camshaft (See Figure 22, ref. 36)

1шт.

30

REF

INSTRUCTION

BUSHING - camshaft (See Figure 22, ref. 37)

1шт.

31

REF

INSTRUCTION

BUSHING - camshaft (See Figure 22, ref. 38)

1шт.

32

30272

WIRE - locking, 11" long (Bearing cap screws)

3шт.

33

VT3369

SPARE PART SUPPORT - oil gauge rod

1шт.

34

RESERVED

1шт.

35

RESERVED

1шт.

36

10771

LOCK WASHER

PLUG - Hubbard, 1-5/8 dia. (Heater holes)

2шт.

37

41-32

PLUG,Exp, 2"

2шт.

38

NLS

NO LONGER SERVICED

PLUG - pipe, 1/4 NP (Oil gallery)

2шт.

39

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, ext. sq. head 1/4 NP (c/case holes)

5шт.

40

72626

PISTON

PLUG - pipe, 1/4 NP (Front bearing cap)

1шт.

41

72625

SET PISTON RINGS+0.8

SPARE PART SPACER - front bearing cap (Not shown)

1шт.

42

R11716

STUD - 7/16-14 NC x 2 (Filter base to c/case) (Used from S/N 7100594)

5шт.

43

VT3364

X

PIN - rear thrust washer to c/case (Used from S/N 7101201)

1шт.

44

11143

BALL

Oil, c/shaft rear bearing

2шт.

45

11149

SEAL

Rear bearing filler block, LH

1шт.

46

11150

SEAL

Rear bearing filler block, RH

1шт.

47

92-6

LOCK WASHER,3/8"

(Cylinder hd to c/case)

2шт.

48

R16733

SPARE PART Plain (Cylinder, Serial Range: hd.-c/case)

15шт.

49

25-106

NUT,3/8"-16, G5

Hex (Cylinder hd. to c/case)

2шт.

50

11164

NUT - hex (9/16-18 NF) (Cylinder, Serial Range: hd.-c/case)

15шт.

51

72667

SPARE PART COVER ASSY - timing gear (Used up to S/N 7100594)

1шт.

52

10670

FITTING

c/shaft oil & dust

1шт.

53

R11692

COVER ASSY - timing gear (Used from S/N 7100594)

1шт.

54

10670

FITTING

c/shaft oil & dust

1шт.

55

REF

INSTRUCTION

GASKET - gear cover to c/case (See ref. # 57)

1шт.

56

VT3675

X

STUD - 3/8-16 NC x 1-1/2

3шт.

57

72688

SPARE PART Gear, Serial Range: cover-c/case

1шт.

58

R11693

PIN - dowel (Gear cover mt'g.)

2шт.

59

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(72667 mt'g.) (Use up to S/N 7100594)

8шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R11692 mt'g.) (Used from S/N 7100594)

5шт.

60

92-6

LOCK WASHER,3/8"

(Used up to S/N 7100594)

8шт.

92-6

LOCK WASHER,3/8"

(Used from S/N 7100594)

6шт.

61

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER ASS'Y. - 3/8-16 NC x 1-1/4 (Used from S/N 7100594)

2шт.

62

30070

PULLEY

Adapter to gear cover

1шт.

63

33875

TUBE NUT

PIPE FITTING Hydraulic pump

1шт.

64

R11693

PIN - dowel (33875 mt'g.)

2шт.

65

VT3675

X

STUD 3/8-16 NC x 1-1/2 (33875 mt'g.)

3шт.

66

92-6

LOCK WASHER,3/8"

5шт.

67

25-106

NUT,3/8"-16, G5

Hex

5шт.

68

30072

SPARE PART Adapter hole cover

1шт.

69

30073

COVER - adapter hole

1шт.

70

172-97

SPARE PART SCREW - cts's. head, # 10-32 x 1/2 (30073 mt'g.)

4шт.

71

10324

X

GASKET - hyd. pump hole cover (Used up to S/N 7100594)

1шт.

72

10480

SPARE PART Hyd. pump hole cover (Used from S/N 7100594)

1шт.

73

10155

TOOL

COVER - hyd. pump hole (Used up to S/N 7100594)

1шт.

74

R11735

COVER - hyd. pump hole (Used from S/N 7100594)

1шт.

75

492-11038

LOCK WASHER,3/8"

WASHER - lock (10155 mt'g.) (Used up to S/N 7100594)

4шт.

76

495-21044

WASHER,3/8"

WASHER - plain (10155 mt'g.) (Used up to S/N 7100594)

2шт.

77

VT4505

SPARE PART NUT - hex (3/8-16 NC) (10155 mt'g.) (Used up to S/N 7100594)

1шт.

78

25-106

NUT,3/8"-16, G5

Hex (10155 mt'g.) (Used up to S/N 7100594)

1шт.

79

11262

HOSE

STUD - 3/8-16 NC x 1-1/8 (10155 mt'g.) (Used up to S/N 7100594)

1шт.

80

11163

STUD - 3/8-16 NC x 1-3/4 (10155 mt'g.) (Used up to S/N 7100594)

1шт.

81

80680

LOCK WASHER,3/8 0.381 CST ZND

& LOCKWASHER ASSY - 3/8-16 NC x 1-1/4 (R11735 mt'g.) (Used from S/N 7100594)

2шт.

82

33877

ROLL PIN

ELBOW - 45 degrees (Oil filter)

1шт.

83

30279

SPARE PART NIPPLE - pipe (Oil filler)

1шт.

84

10406

SPARE PART CUP ASSY - oil filler

1шт.

R16438

HOUSING - flywheel (Used from 5-14-59)

1шт.

85

73406

HOUSING - flywheel (Used, Serial Range: up-5-14-59)

1шт.

86

30327

PIN - dowel (73406 mt'g.)

2шт.

87

NLS

NO LONGER SERVICED

SCREW - 3/8-16 NC x 1-5/8 (73406 mt'g.)

4шт.

88

10295

BUSHING

SCREW - 3/8-16 NC x 1-1/8 (73406 mt'g.)

2шт.

89

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(73406 mt'g.)

2шт.

90

92-6

LOCK WASHER,3/8"

9шт.

91

10135

SCREW - drive #10-32 x 3/4

1шт.

92

73405

CONTROL VALVE

SPARE PART COVER - flywheel pointer

1шт.

93

11073

X

DRAINCOCK/TAP SUPPLY COCK - cylinder water drain

1шт.

94

11132

KIT

ROD ASSY - oil gauge

1шт.

95

10416

FELT - oil gauge rod

1шт.

96

70891

COVER - cylinder water inlet

1шт.

97

10679

PIPE FITTING

GASKET - water inlet cover

1шт.

98

92-6

LOCK WASHER,3/8"

2шт.

99

30438

X

NUT NUT - hex (3/8-16 NC)

2шт.

100

R15759

COVER ASSY - flywheel (Used from 5-14-59)

1шт.

101

33865

SPARE PART HHCS 1/4-12 NC x 1/2 (R15759 mt'g.)

2шт.
