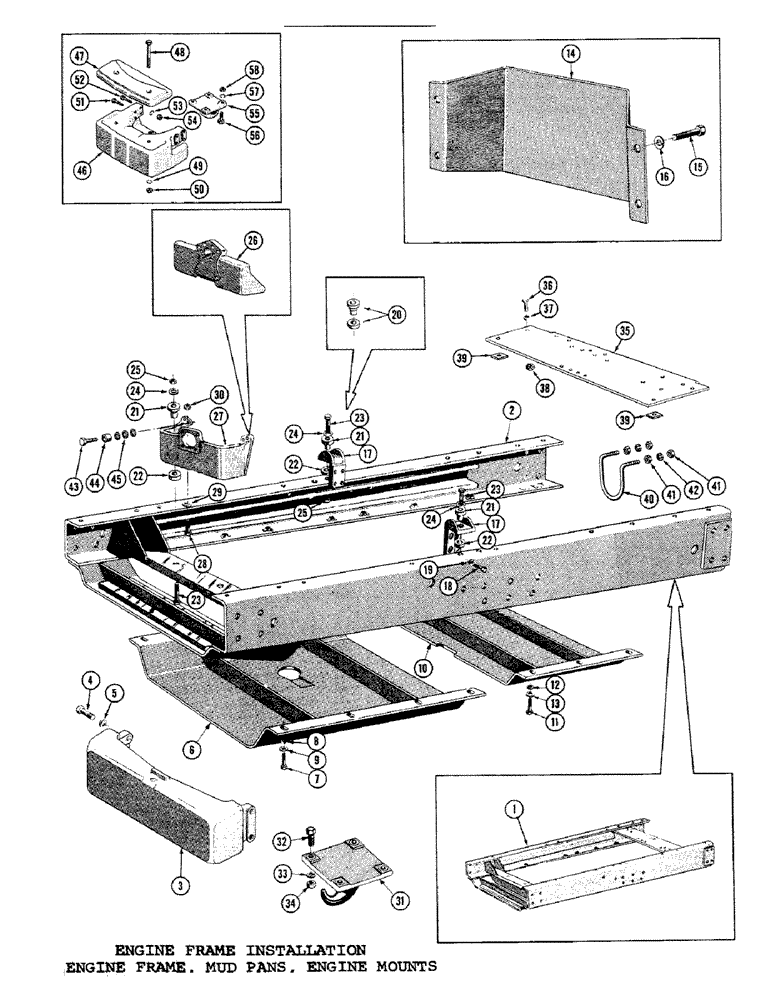

Запчасти Case 1000C (006) - ENGINE FRAME INSTALLATION, ENGINE FRAME, MUD PANS, ENGINE MOUNTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
71910
FRAME ASS'Y. - engine (Used up to serial # 7101201)
1шт.
2
R13237
FRAME ASS'Y. - engine (Use from serial # 7101201)
1шт.
3
70963
BUMPER - front
1шт.
4
14-1228
BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5
HHCS - 3/4 NF x 1-3/4 (70963 mt'g.) (45784)
4шт.
5
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (48452) 3/4"
4шт.
6
72185
WASHER
GUARD ASS'Y. - bottom center
1шт.
7
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS - 1/2-20 NF x 1-3/4 (72185 mt'g.) (45709)
8шт.
8
92-8
LOCK WASHER,1/2"
(48448) 1/2"
8шт.
9
95-8
WASHER,1/2"
- plain (48408) 1/2"
8шт.
10
72198
SPARE PART
GUARD ASS'Y. - bottom rear (Used up to serial # 7101201)
1шт.
R13741
GUARD ASS'Y. - bottom rear (Used from serial # 7101201)
1шт.
11
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS - 1/2-20 NF x 1-3/4" (72198 & R13741 mt'g.)
6шт.
12
92-8
LOCK WASHER,1/2"
6шт.
13
95-8
WASHER,1/2"
- plain 1/2"
6шт.
14
72373
RING
GUARD - transmission rear
1шт.
15
14-1224
BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5
HHCS - 3/4-16 NF x 1-1/2 (72373 mt'g.) (45783)
4шт.
16
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (48452) 3/4"
4шт.
17
70121
MOUNT - engine rear
2шт.
18
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
(70121 mt'g.) (45108) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
8шт.
19
92-8
LOCK WASHER,1/2"
(48448) 1/2"
8шт.
20
R2528
KIT
- engine mount (Used up to serial # 7100208)
1шт.
21
74038
MOUNTING PARTS
MOUNT - engine upper (Used from serial # 7100208)
4шт.
22
NLS
NO LONGER SERVICED
WASHER - vibration (Used from serial # 710028)
4шт.
23
14-1252
BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5
HHCS - 3/4-16 NF x 3-1/4 (Engine mt'g.) (45790)
4шт.
24
95-12
WASHER,3/4"
- plain (48412)
4шт.
25
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4-16 NF) (17605)
4шт.
26
71537
BRACKET - pump mt'g. (Used up to serial # 7100934)
1шт.
27
R12544
BRACKET - pump mt'g. (Used from serial # 7100934)
1шт.
28
14-944
BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 5
HHCS - 9/16-18 NF x 1-3/4 (Engine mt'g.) (45738)
2шт.
29
40581
SPACER,1-1/2” x 1-1/2” x 1/4" Tk
SHIM - engine mt'g.
2шт.
30
131-157
NUT,9/16"-18, GA
- lock (9/16-18 NF) (11944)
2шт.
NS
NOT SERVICED
HOOK INSTALLATION - pull (Optional equipment) (6337)
1шт.
31
71671
PLATE ASSY.
HOOK - pull
1шт.
32
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
HHCS - 3/4-16 NF x 2-1/2 (71671 mt'g.) (45787)
4шт.
33
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (48452) 3/4"
4шт.
34
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF) (48107)
4шт.
35
R13370
ANGLE ASS'Y. - valve
1шт.
36
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS - 1/2-20 NF x 2 (R13370 mt'g.)
2шт.
37
92-8
LOCK WASHER,1/2"
2шт.
38
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF)
4шт.
39
35245
PAN
SPACER (Used, Serial Range: up-12-19-58)
2шт.
R14526
SPACER (Used from 12-19-58)
2шт.
40
R14116
BRACKET - safety
1шт.
41
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF)
4шт.
42
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
43
18-640
LEVER ASSY.
HHCS - 3/8-16 NC x 2-1/2 (Used from serial # 7100934)
2шт.
44
R12644
BUSHING
SPACER (Used from serial # 7100934)
2шт.
45
R12645
SHIM (Used from serial # 7100934)
1шт.
8498
FRONT MOUNTED WEIGHT (Optional)
1шт.
46
73431
WEIGHT - front mounted
1шт.
47
73432
COVER - front mounted weight
1шт.
48
R11489
STUD (73432 mt'g.)
2шт.
49
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
4шт.
50
25-1116
NUT,1"-14, G5
- reg. SF hex (1-14 NF)
4шт.
52
14-1280
BOLT,Hex, 3/4" - 16 x 5", Gr 5
HHCS 3/4-16 NF x 5 (53431 mt'g.)
4шт.
53
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
54
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF)
8шт.
55
71671
PLATE ASSY.
HOOK - pull
1шт.
56
14-1280
BOLT,Hex, 3/4" - 16 x 5", Gr 5
HHCS 3/4-16 NF x 5 (71671 mt'g.)
4шт.
57
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
58
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF)
4шт.
Выбрано товаров: 62
