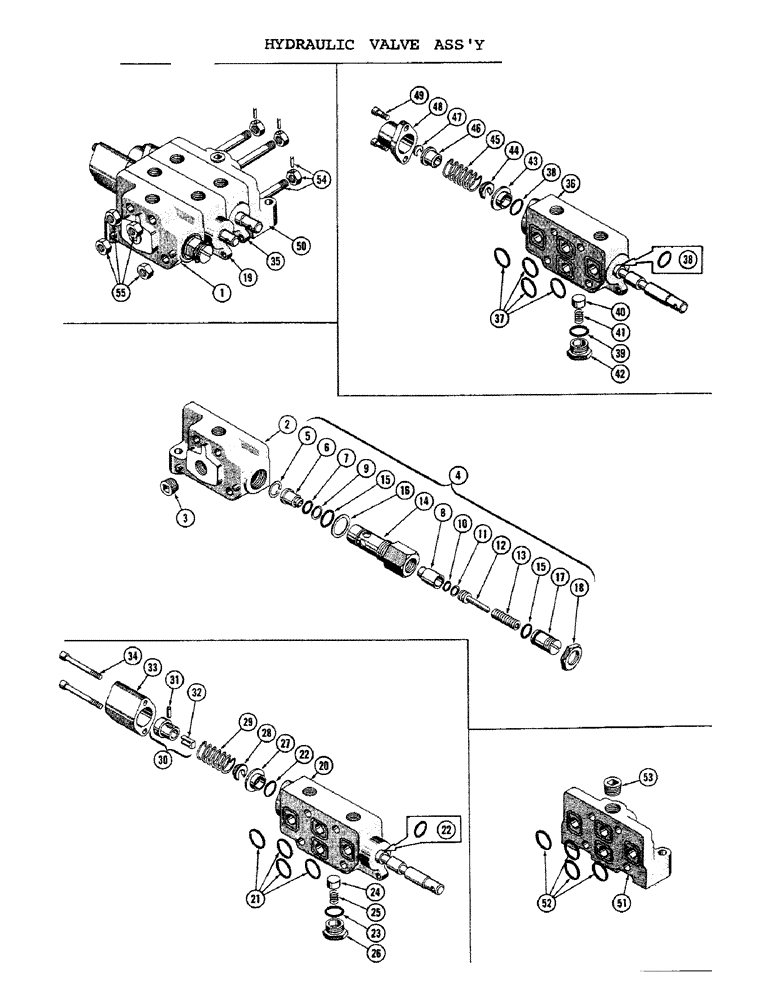

Запчасти Case 1000C (354) - HYDRAULIC VALVE ASSEMBLY, BODY, CAP, SPOOL, SEALS (07) - HYDRAULIC SYSTEM

R14047

VALVE ASS'Y. - hydraulic

1шт.

1

R14271

SECTION ASS'Y. - end

1шт.

2

R15460

BODY - end section

1шт.

3

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1 NP

1шт.

4

R14175

VALVE - relief, sub ass'y.

1шт.

5

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

6

R12511

POPPET

- relief valve

1шт.

7

O8416AB

X

SEAL - "O" ring

1шт.

8

R12510

SEAT

- floating

1шт.

9

R12512

OIL SEAL

RING - back-up

1шт.

10

O9787AB

X

SEAL - "O" ring

1шт.

11

R12509

RING

- back-up

1шт.

12

R12508

PLUNGER - displacement

1шт.

13

23136

SPRING

- compression

1шт.

14

R12505

SHELL - cartridge

1шт.

15

O8377AB

X

SEAL - "O" ring

2шт.

16

23146

WASHER

- fibre

1шт.

17

R12506

SCREW - spring adjusting

1шт.

18

R12507

LOCK NUT

- locking

1шт.

19

R14269

SECTION ASS'Y. - center

1шт.

20

R2940

BODY & SPOOL ASS'Y.

1шт.

21

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

22

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

23

O8346AB

X

SEAL - "O" ring

1шт.

24

39006

X

POPPET - check valve

1шт.

25

R15308

VALVE SPRING

SPRING - check valve

1шт.

26

39007

CAP

- check valve

1шт.

27

39009

RETAINER

- "O" ring

1шт.

28

39014

RETAINER - spring

1шт.

29

39015

SPRING

1шт.

30

73569

GUIDE ASS'Y. - spring (See bull 5-1-62)

1шт.

31

39016

PIN - Spirolox

1шт.

32

39011

CLIP - restriction

1шт.

33

R14174

CAP - valve

1шт.

34

R15400

X

SHCS 3/8-15 NC x 3-1/2

2шт.

35

R14270

X

SECTION ASS'Y. - center

1шт.

36

R2941

BODY & SPOOL ASS'Y.

1шт.

37

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

2шт.

39

O8346AB

X

SEAL - "O" ring

1шт.

40

39006

X

POPPET - check valve

1шт.

41

R15308

VALVE SPRING

SPRING - check valve

1шт.

42

39007

CAP

- check valve

1шт.

43

39009

RETAINER

- "O" ring

1шт.

44

39014

RETAINER - "O" ring

1шт.

45

39015

SPRING

1шт.

46

39022

PTO

GUIDE - spring

1шт.

47

39025

RETAINER - spring guide

1шт.

48

39021

PTO

CAP - valve

1шт.

49

R15399

SHCS 3/8-16 NC x 7/8

2шт.

50

R14268

SECTION ASS'Y. - end

1шт.

51

R15310

BODY - valve end section

1шт.

52

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

53

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1 NP

1шт.

54

39031

STUD ASS'Y.

4шт.

55

131-13

LOCK NUT,5/8"-18, GB

NUT - elastic stop (5/8-18 NP)

4шт.
