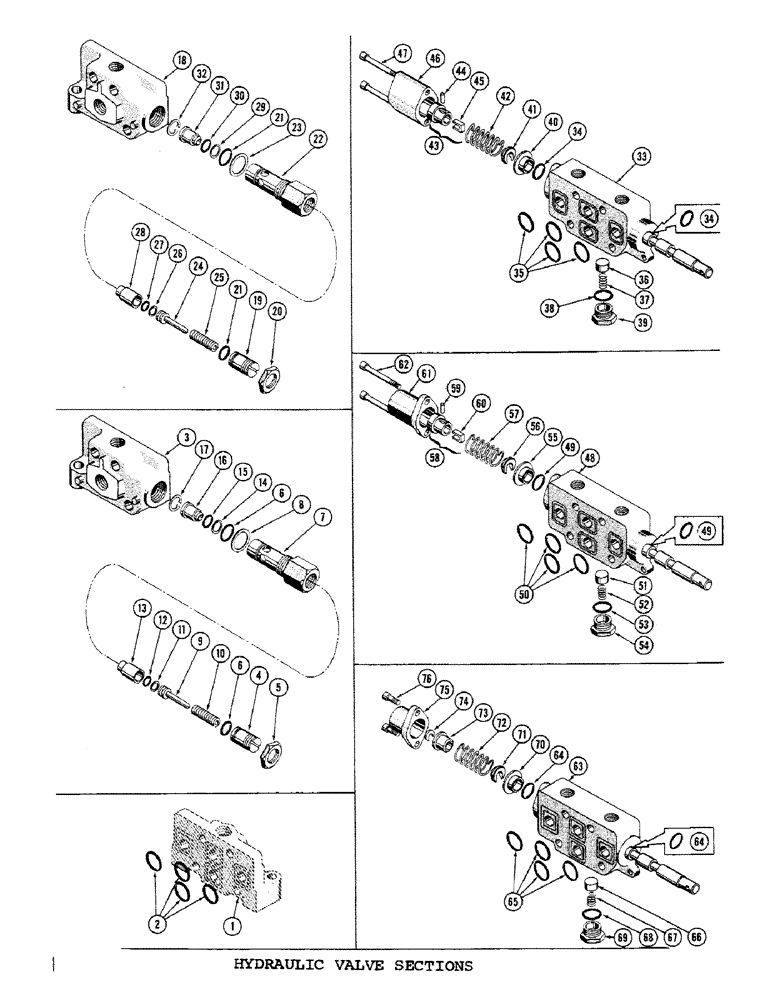

Запчасти Case 1000C (350) - HYDRAULIC VALVE SECTIONS, BODIES, CAPS, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
R14268
SECTION ASS'Y. - end
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve end section
1шт.
2
A7156
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL - "O" ring
4шт.
R14273
SECTION ASS'Y. - end
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve end section
1шт.
2
R15403
SEAL - "O" ring
4шт.
R15423
SECTION ASS'Y. - end
1шт.
3
R15423
BODY - valve end section
1шт.
R14175
CARTRIDGE ASS'Y. - relief valve
1шт.
4
R12506
SCREW - spring adjusting
1шт.
5
R12507
LOCK NUT
- locking
1шт.
6
O8377AB
X
SEAL - "O" ring
2шт.
7
R12505
SHELL - cartridge
1шт.
8
23146
WASHER
- fibre
1шт.
9
R12508
PLUNGER - displacement
1шт.
10
23136
SPRING
- compression
1шт.
11
R12509
RING
- back up
1шт.
12
O9787AB
X
SEAL - "O" ring
1шт.
13
R12510
SEAT
- floating
1шт.
14
R12512
OIL SEAL
RING - back up
1шт.
15
O8416AB
X
SEAL - "O" ring
1шт.
16
R12511
POPPET
1шт.
17
R15512
SNAP RING,#87, .929", Int, Spiral
RING - snap
1шт.
R14271
SECTION ASS'Y. - end
1шт.
18
R15460
BODY - valve end section
1шт.
R14175
CARTRIDGE ASS'Y. - relief valve
1шт.
19
R12506
SCREW - spring adjusting
1шт.
20
R12507
LOCK NUT
- locking
1шт.
21
O8377AB
X
SEAL - "O" ring
2шт.
22
R12505
SHELL - cartridge
1шт.
23
23146
WASHER
- fibre
1шт.
24
R12508
PLUNGER - displacement
1шт.
25
23136
SPRING
- compression
1шт.
26
R12509
RING
- back up
1шт.
27
O9787AB
X
SEAL - "O" ring
1шт.
28
R12510
SEAT
- floating
1шт.
29
R12512
OIL SEAL
RING - back up
1шт.
30
O8416AB
X
SEAL - "O" ring
1шт.
31
R12511
POPPET
1шт.
32
R15512
SNAP RING,#87, .929", Int, Spiral
RING - snap
1шт.
R14272
SECTION ASS'Y. - center
1шт.
33
R2942
BODY & SPOOL ASS'Y. - valve (Inc. ref. #34, 35, 38)
1шт.
34
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
35
A7156
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL - "O" ring
4шт.
36
39006
X
POPPET - check
1шт.
37
R15308
VALVE SPRING
SPRING - check valve
1шт.
38
O8346AB
X
SEAL - "O" ring
1шт.
39
39007
CAP
- check valve
1шт.
40
39009
RETAINER
- "O" ring
1шт.
41
39014
SEAT - spring retaining
1шт.
42
39015
SPRING - valve
1шт.
43
73569
GUIDE ASS'Y. - spring (See bull 5-1-62)
1шт.
44
39016
PIN - Spiralox
1шт.
45
39011
CLIP - spring guide
1шт.
46
R14174
CAP & SLEEVE ASS'Y. - valve
1шт.
47
R15400
X
SHCS 3/8-16 NC x 3-1/2
2шт.
R14275
SECTION ASS'Y. - center
1шт.
48
R14275
BODY & SPOOL ASS'Y. - valve (Inc. ref. #49, 50 & 53)
1шт.
49
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring
2шт.
50
R15403
SEAL - "O" ring
4шт.
51
23116
HYDRAULIC HOSE
POPPET - check valve
1шт.
52
23118
HYDRAULIC HOSE
SPRING - check valve
1шт.
53
23119
O-RING,0.921" ID x 1.199" OD x 0.139"
SEAL - "O" ring
1шт.
54
23117
HYDRAULIC HOSE
CAP - check valve
1шт.
55
23122
HYDRAULIC HOSE
RETAINER - "O" ring
1шт.
57
23127
SPRING
- valve
1шт.
58
73568
COCK
GUIDE ASS'Y. - spring (See parts bulletin 3-62)
1шт.
59
38564
X
PIN - Spiralox
1шт.
60
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS
1шт.
61
73570
CAP & SLEEVE ASS'Y. - center
2шт.
62
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS 5/16-18 NC x 3/4
2шт.
R14274
SECTION ASS'Y. - center
1шт.
63
R2945
BODY & SPOOL ASS'Y. - valve (Inc. ref. #64, 65 & 68)
1шт.
64
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
65
R15403
SEAL - "O" ring
4шт.
66
23116
HYDRAULIC HOSE
POPPET - check valve
1шт.
67
23118
HYDRAULIC HOSE
SPRING - check valve
1шт.
68
23119
O-RING,0.921" ID x 1.199" OD x 0.139"
SEAL - "O" ring
1шт.
69
23117
HYDRAULIC HOSE
CAP - check valve
1шт.
70
23122
HYDRAULIC HOSE
RETAINER - "O" ring
1шт.
72
23127
SPRING
- valve
1шт.
73
23125
HYDRAULIC HOSE
GUIDE - spring
1шт.
74
16413
HOSE
- spring guide
1шт.
75
23115
HYDRAULIC HOSE
CAP - valve
1шт.
76
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS 5/16-18 NC x 3/4
2шт.
R14270
X
SECTION ASS'Y. - center
1шт.
63
R2941
BODY & SPOOL ASS'Y. - valve (Inc. ref. #64, 65 & 68)
1шт.
64
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
65
A7156
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL - "O" ring
4шт.
66
39006
X
POPPET - check valve
1шт.
67
R15308
VALVE SPRING
SPRING - check valve
1шт.
68
O8346AB
X
SEAL - "O" ring
1шт.
69
39007
CAP
- check valve
1шт.
70
39009
RETAINER
- "O" ring
1шт.
71
39014
SEAT - spring retainer
1шт.
72
39015
SPRING - valve
1шт.
73
39022
PTO
GUIDER - spring
1шт.
74
39025
WASHER - spring guide retaining
1шт.
75
39021
PTO
CAP - valve
1шт.
76
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS 3/8-16 NC x 7/8
2шт.
R14269
SECTION ASS'Y. - center
1шт.
33
R2940
BODY & SPOOL ASS'Y. - valve (Inc. ref. #34, 35 & 38)
1шт.
34
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring
2шт.
35
A7156
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
SEAL - "O" ring
4шт.
36
39006
X
POPPET - check valve
1шт.
37
R15308
VALVE SPRING
SRPING - check valve
1шт.
38
O8346AB
X
SEAL - "O" ring
1шт.
39
39007
CAP
- check valve
1шт.
40
39009
RETAINER
- "O" ring
1шт.
41
39014
SEAT - spring retainer
1шт.
42
39015
SPRING - valve
1шт.
43
73569
GUIDE ASS'Y. - spring (See bull 5-1-62)
1шт.
44
39016
PIN - Spiralox
1шт.
45
39011
CLIP - spring guide
1шт.
46
R14174
CAP & SLEEVE ASS'Y. - valve
1шт.
47
R15400
X
SHCS 3/8-16 NC x 3-1/2
2шт.
Выбрано товаров: 118
