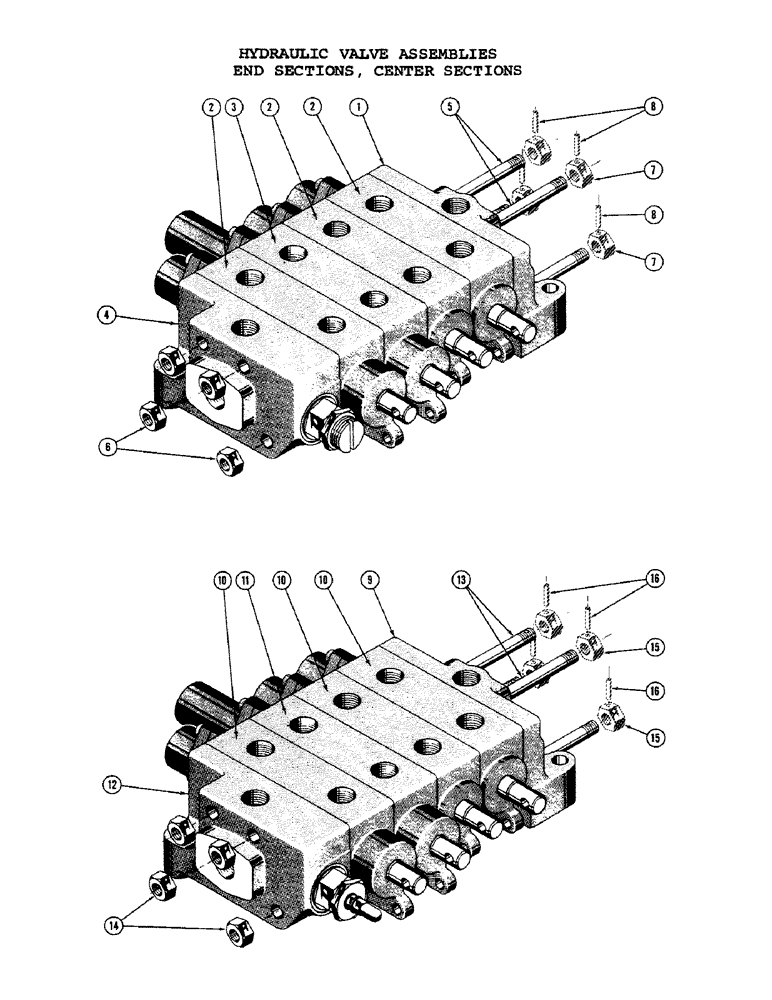

Запчасти Case 1000C (342) - HYDRAULIC VALVE ASSEMBLIES, ENDS SECTION, CENTER SECTIONS (07) - HYDRAULIC SYSTEM

R14055

VALVE ASS'Y. - hydraulic

1шт.

1

R14273

SECTION ASS'Y. - end (See Figure 350 for breakdown)

1шт.

2

R14274

SECTION ASS'Y. - center (See Figure 352 for breakdown)

3шт.

3

R14275

SECTION ASS'Y. - center (See Figure 350 for breakdown)

1шт.

4

R14276

SECTION ASS'Y. - end (See Figure 350 for breakdown)

1шт.

5

38576

KEY

STUD ASS'Y. - valve

4шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

72361

DISC

VALVE ASS'Y. - hydraulic

1шт.

9

23169

PLUG

SECTION ASS'Y. - end (See Figure 344 for breakdown)

1шт.

10

23165

PRODUCT GRAPHIC

SECTION ASS'Y. - center (See Figure 346 for breakdown)

3шт.

11

23168

DECAL

SECTION ASS'Y. - center (See Figure 346 for breakdown)

1шт.

12

23128

HYDRAULIC HOSE

SECTION ASS'Y. - end (See Figure 344 for breakdown)

1шт.

13

38576

KEY

STUD ASS'Y. - valve

4шт.

14

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - stop (1/2-20 NF)

1шт.

15

NSS

NOT SOLD SEPARAT

NUT - hex (Drilled)

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.
